European Standard Flat Cutter Saddle Recycling Granulator Machine PE/PP/PVC Plastic Crusher
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description
Flat Type Plastic Crusher
Flat type plastic crushers are are suitable for centralized recycling of wastes or rejected parts from injection moulding, blow moulding and extrusion machines. Blade sets made by once cutting from steel plate, adopted with patent front-positioning blades design enlarging cutting angle and increasing cutting efficiency.
Product Specifications
Model | XC-GD10HP | XC-GD15HP | XC-GD20HP | XC-GD30HP | ||
Grinding Chamber(mm) | 360*260 | 420*280 | 480*330 | 660*350 | ||
Grinding Capacity(KG/H) | 170-340 | 255-420 | 300-460 | 420-680 | ||
Stationary Cutter | 2 | 2 | 2 | 4 | ||
Rotary Cutter | 6 | 6 | 6 | 9 | ||
Mesh Size (mm) | Ф10 | Ф10 | Ф10 | Ф12 | ||
Power | KW | 7.5 | 11 | 15 | 22 | |
HP | 10 | 15 | 20 | 30 | ||
Dimension(L×W×H mm) | 1090*870*1340 | 1290*995*1580 | 1435*1075*1775 | 1635*1310*1965 | ||
Net Weight(KG) | 540 | 795 | 1040 | 1700 | ||
If you want more sizes, please contact us for details

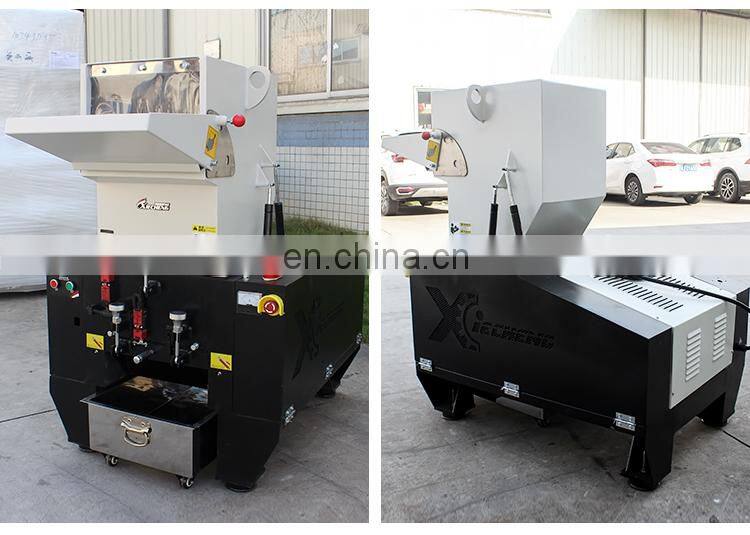

Product Actual Shooting
Product Details

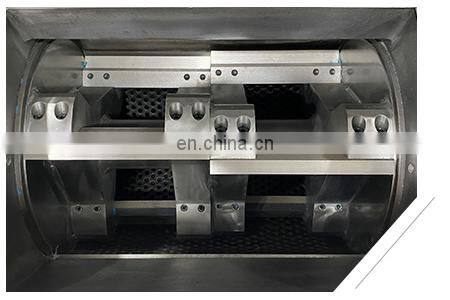

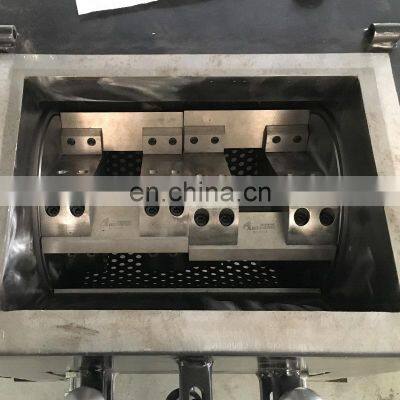

01 Durable Cutter
? Blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
? Adopted hexagon socket screw installation way of the blades and strong wear resistance.
? Adopted hexagon socket screw installation way of the blades and strong wear resistance.
? Material: CR12MOV, hardness in 57-59°

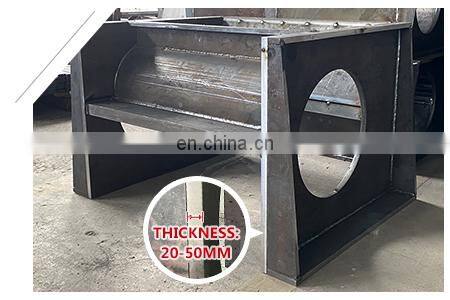

02 Chamber Wall Thickness
Chamber wall thickness 20~50mm, more stable in crushing process due to better load-bearing, hence with higher durability.

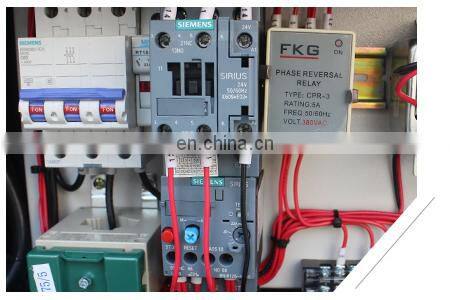

? SIEMENS electrical parts ensures stable running and liability of the machine；
? Optional Deluxe CE: CE wiring, CE safety electrical devices.
? Optional Deluxe CE: CE wiring, CE safety electrical devices.
Feeding hopper with double-layered on 4 sides and the inner layer is made of stainless steel with insulation material in between to provide good noise handling.
≥30HP default with chamber cooling system, effectively reducing the heat of chamber and shaft to ensure long durability and preventing material melting and fusion.
Blade Production Process

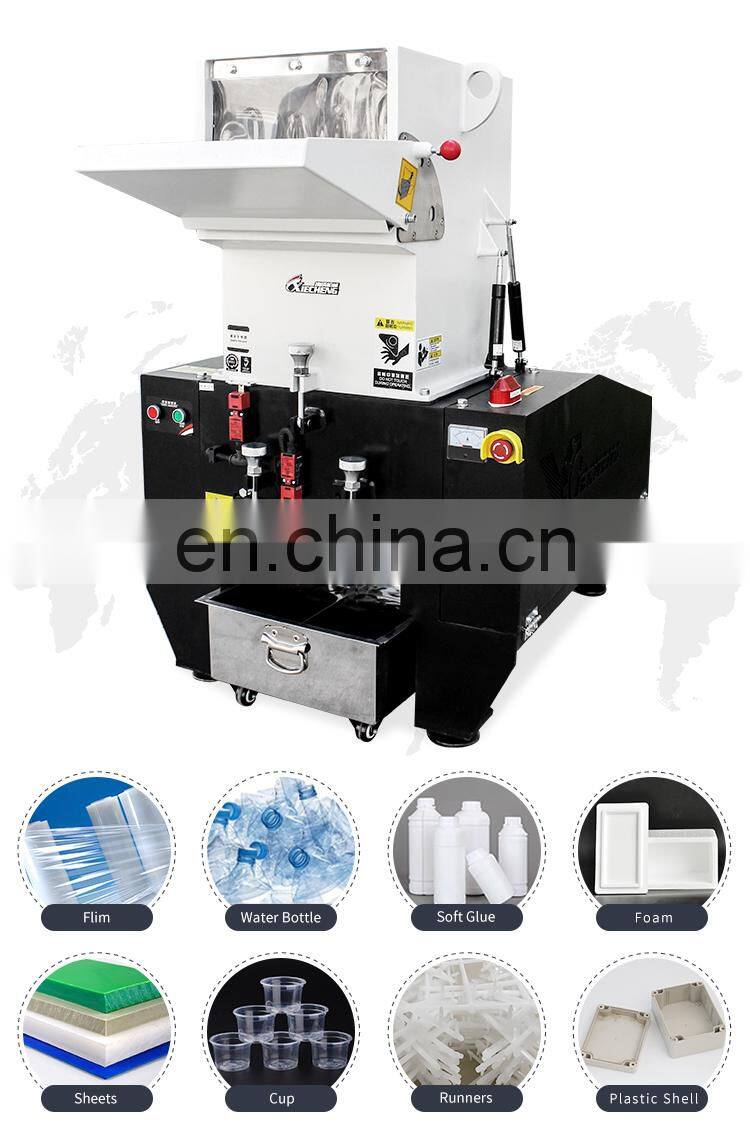

Application Range
Flat type plastic crushers are are suitable for centralized recycling of wastes or rejected parts from injection moulding, blow moulding and extrusion machines. Such as: film, water bottle, runners, sheets, plastic shell, foam, sponge, cup, etc.
