Plastic Crusher Recycle Plastic Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

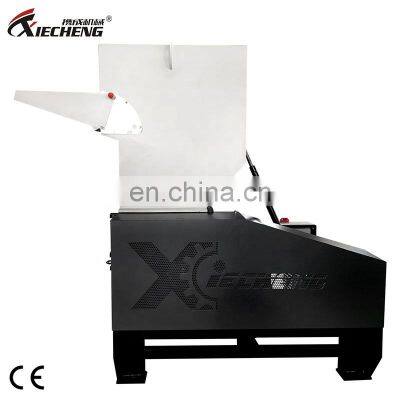

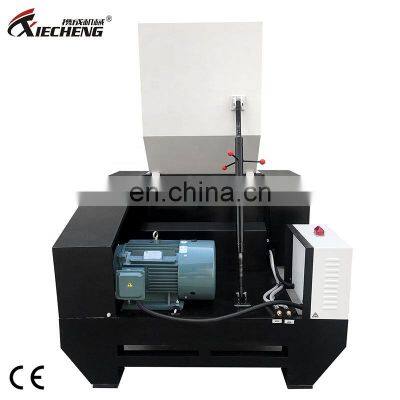

Flake Type Plastic Crusher
Flake type blade design, suitable for crushing general plastics like sheets, tube, profiles and packing materials, also runners.
Product Specifications
Model | XC-GP500 | XC-GP600 | XC-GP800 | ||
Grinding Chamber(mm) | 510*300 | 610*330 | 815*470 | ||
Grinding Capacity(KG/H) | 300-350 | 350-450 | 450-600 | ||
Stationary Cutter | 2 | 4 | 4 | ||
Rotary Cutter | 15 | 18 | 24 | ||
Mesh Size (mm) | Ф10 | Ф10 | Ф10 | ||
Power | KW | 11 | 15 | 22/30 | |
HP | 15 | 20 | 30/40 | ||
Dimension (L×W×H mm) | 1290*975*1670 | 1290*1075*1740 | 1735*1525*2180 | ||
Net Weight(KG) | 900 | 970 | 2000 | ||
If you want more sizes, please contact us for details

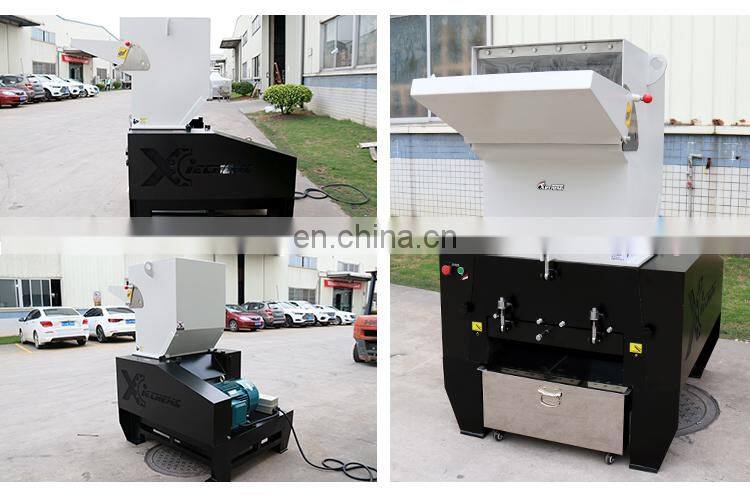

Product Actual Shooting
Product Details
01 Durable Cutter
?Flake type blade design, blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
?Material: CR12MOV, hardness in 57-59°
?Material: CR12MOV, hardness in 57-59°

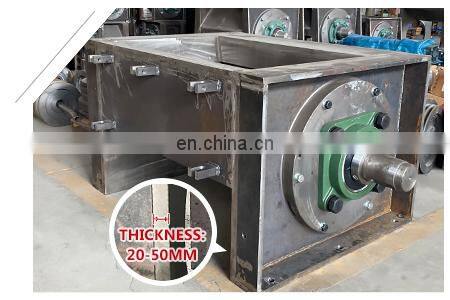

02 Chamber Wall Thickness
Chamber wall thickness 20~50mm, more stable in crushing process due to better load-bearing, hence with higher durability.

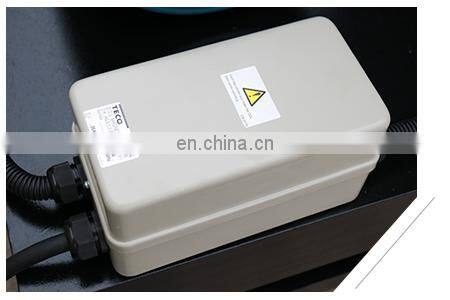

? SIEMENS electrical parts ensures stable running and liability of the machine；
? Optional Deluxe CE: CE wiring, CE safety electrical devices.
? Optional Deluxe CE: CE wiring, CE safety electrical devices.
Feeding hopper with back and front double layered insulation for effective noise handling.

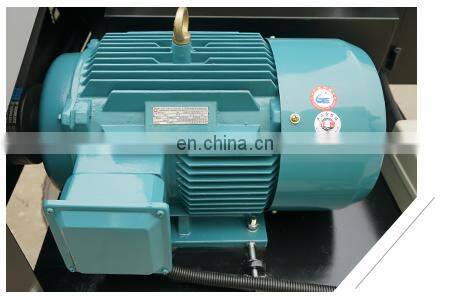

The motor adopts all copper wire motor，long life and durable.
Blade Production Process

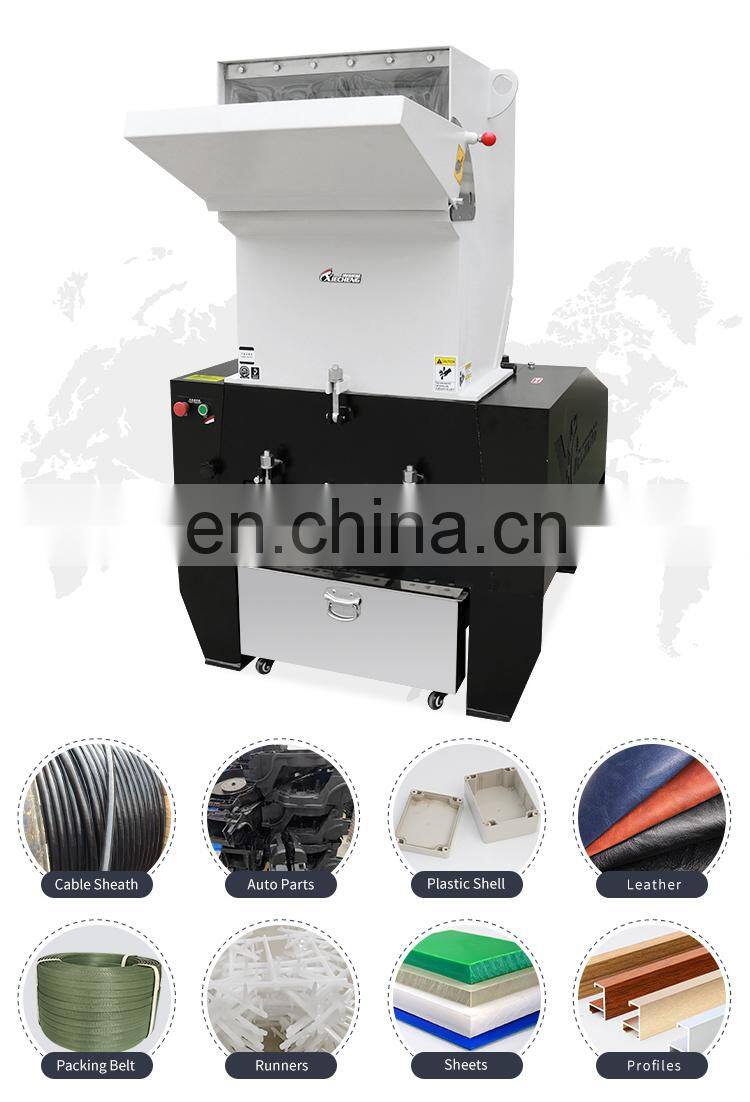

Application Range
Flake cutter blades are suitable for recycling and restoring of conventional sheets, tube plastics, profiles, packing plastics, extrusion mold products and runners, etc.
