Product Description
Product Description

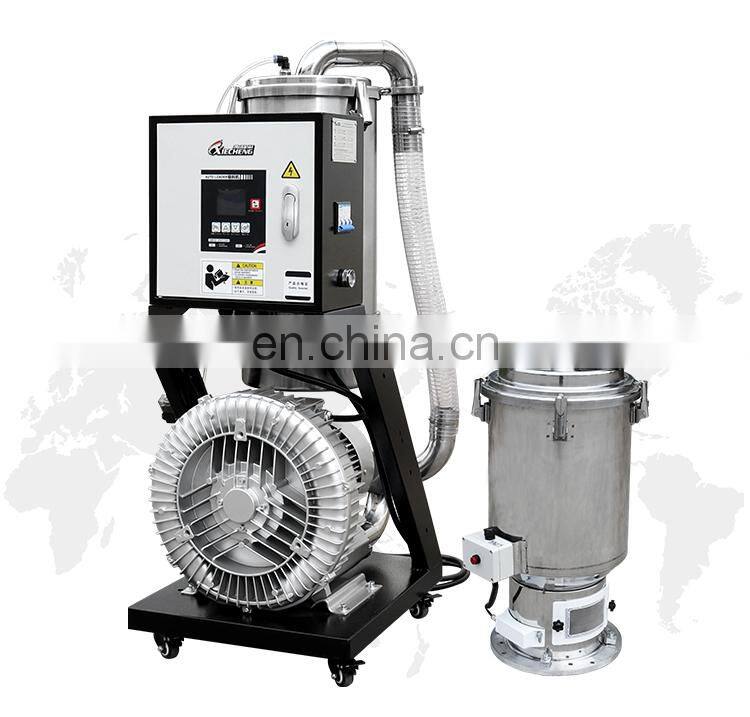

Separate-Vacuum Hopper Loader
It is specially developed for the situation of large amount of materials conveying, long conveying distance and crushed materials and powder. High-power motor with enlarged hose and hopper.
Product Specifications
Model | XCAL-1.5HP | XCAL-3HP | XCAL-5HP | XCAL-7.5HP | XCAL-10HP | ||||
Motor | 1.5 /1.1 | 3/2.2 | 5/3.75 | 7.5/5.5 | 10/7.5 | ||||
Conveying Capacity (kg/hr) | 450 | 590 | 820 | 1000 | 1300 | ||||
Loading Distance (m) | 5 | 5 | 5 | 6 | 6 | ||||
Static Wind Pressure (mm/H2O) | 2800 | 2800 | 3200 | 4200 | 4500 | ||||
Storage Tank Capacity (L) | 7.5 | 12 | 24 | 30 | 30 | ||||
Conveying Tube Inner | φ38 | φ51 | φ51 | φ63 | φ63 | ||||
Specification of the Attached Hoses | φ38mm×4m 1pc | φ51mm×10m 1pc | φ51mm×10m 1pc | φ63mm×12m 1pc | φ63mm×12m 1pc | ||||
Dimensions (cm) | Host | 50x42x109 | 69x52x144 | ||||||
hopper | 38x28x45 | 43x33x58 | 43x33x69 | 43x33x83 | 43x33x83 | ||||
Weight (kg) | Host | 65 | 68 | 90 | 135 | 140 | |||
hopper | 6 | 6 | 10 | 12 | 12 | ||||
If you want more sizes, please contact us for details
Product Details

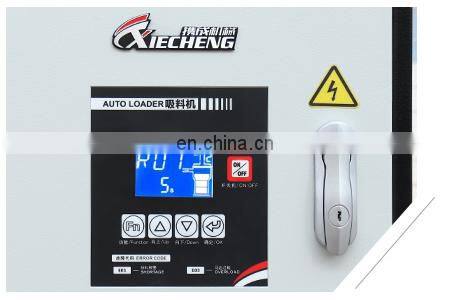

01 LCD Controller
? Industry leading LCD microcomputer controller with adjustable parameters, intuitive display and convenient operation;
? Optional RS485 communication function to realize. remote automatic management.

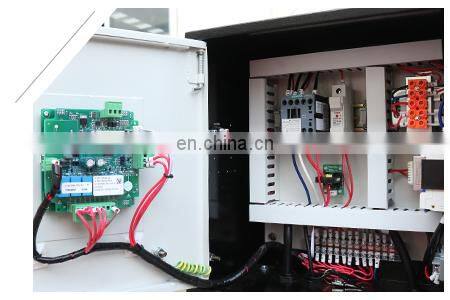

02 Siemens Electric
SIEMENS electrical parts ensures stable running and liability of the machine.

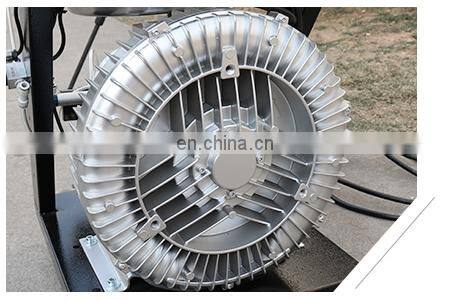

Adopt induction high-pressure motor, which has the function of reversing and automatically removing dust, with low noise and long life.

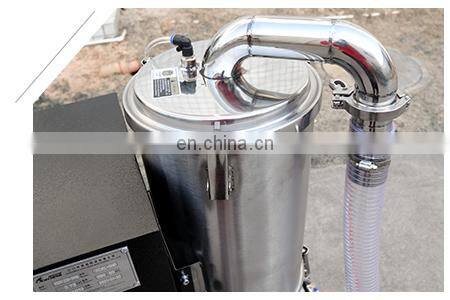

Unique cyclone barrel and large dust isolation and collection system adopt advanced design, easy and fast to maintain.

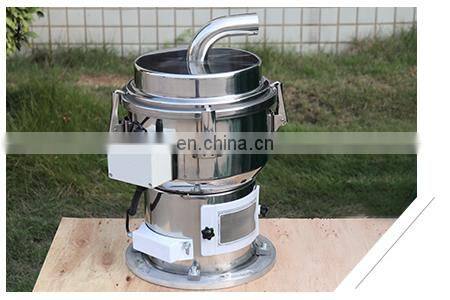

Stainless steel hopper, to ensure that the raw materials are not polluted during transportation.

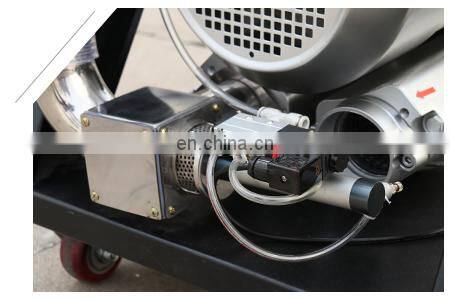

≥ 5HP equipped with vacuum breaking valve as standard to prevent frequent start , stop or prolong the service life of the motor.

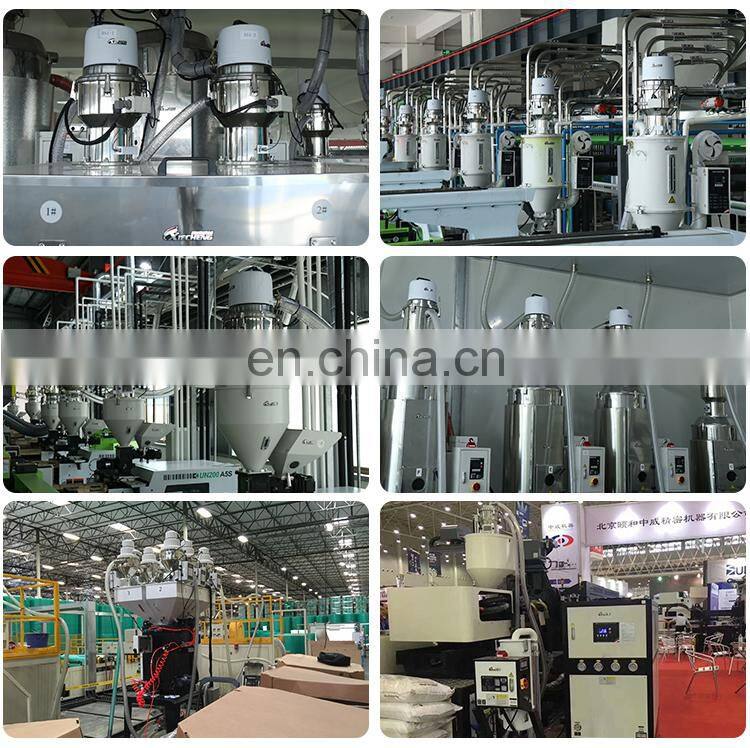

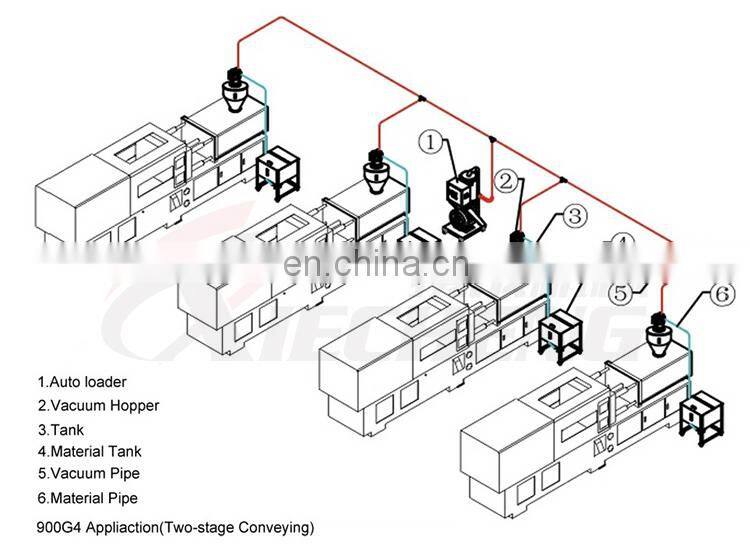

Application Range
Best Selling
About Us

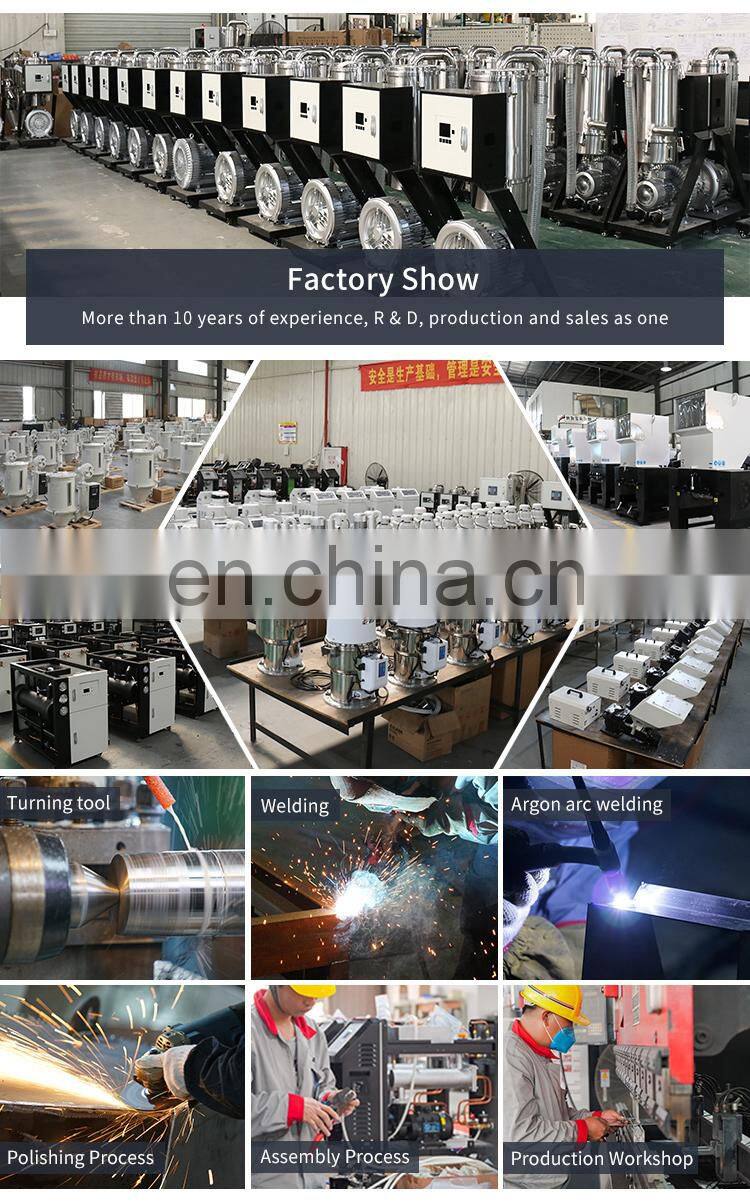

Company Profile
In 2009, founded by Mr. Fuzhibo with its head quarter in Jiangmen city which known as a famous hometown of many overseas Chinese, Jiangmen Xiecheng Machinery Co., Ltd. has been devoted herself to be an integrated enterprise of R&D, manufacturing and marketing businesses for High-end Industrial Refrigeration Equipment, Rubber and Plastic Moulding Auxiliary Automation Equipment, and also Intelligent Integrated System Solutions.
Authenticated by IS09001, XIECHENG also successfully established the “6+1+C” full dimensional product service system with her own supply chain advantages of combining the six series of products, as Industrial Refrigeration, Mould Temp. Controlling, Material Conveying, Crushing & Recycling, Dehumidifying & Drying, and also Mixing, into central intelligent system solutions as Material Feeding, Air Supply, Water Supply and Power Supply, to fast fitting customers’ specific demands.
