Product Description
Product Description
Claw Type Plastic Crusher
The claw type plastic crusher are especially suitable for larger and harder subjects like injection lump plastics, etc. Blade sets made by once cutting from steel plate, adopted with patent front-positioning blades design enlarging cutting angle and increasing cutting efficiency. Hence the output granules are even and with less powder or dust occurred. Models are divided into claw and flat types with wide applications.
Product Specifications
Model | XC-GY10HP | XC-GY15HP | XC-GY20HP | XC-GY30HP | ||
Grinding Chamber(mm) | 360*260 | 420*280 | 480*330 | 660*350 | ||
Grinding Capacity(KG/H) | 200-400 | 300-500 | 350-550 | 500-800 | ||
Stationary Cutter | 2 | 2 | 2 | 4 | ||
Rotary Cutter | 18 | 21 | 24 | 27 | ||
Mesh Size (mm) | Ф10 | Ф10 | Ф10 | Ф12 | ||
Power | KW | 7.5 | 11 | 15 | 22 | |
HP | 10 | 15 | 20 | 30 | ||
Dimension(L×W×H mm) | 1090*870*1340 | 1290*995*1580 | 1435*1075*1775 | 1635*1310*1965 | ||
Net Weight(KG) | 540 | 795 | 1040 | 1700 | ||
If you want more sizes, please contact us for details

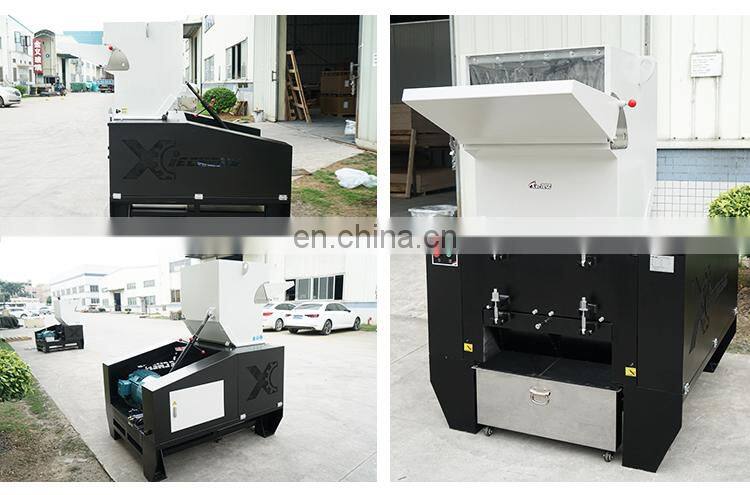

Actual Shooting
Product Details

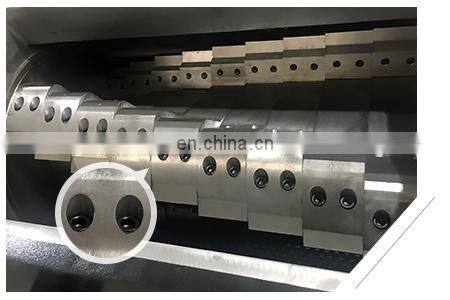

01 Durable Cutter
?Blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
? Adopted hexagon socket screw installation way of the blades and strong wear resistance.
? Material: CR12MOV, hardness in 57-59°
? Adopted hexagon socket screw installation way of the blades and strong wear resistance.
? Material: CR12MOV, hardness in 57-59°

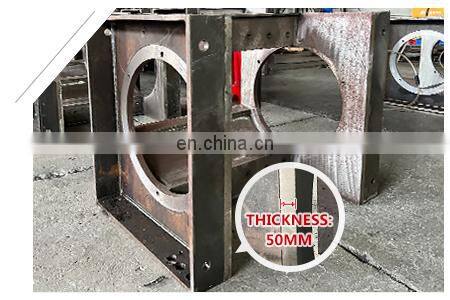

02 Chamber Wall Thickness
Chamber wall thickness 50mm, more stable in crushing process due to better load-bearing, hence with higher durability.

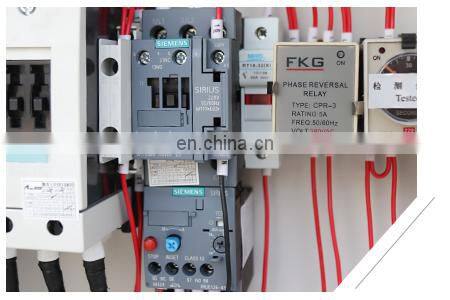

? SIEMENS electrical parts ensures stable running and liability of the machine；
? Optional Deluxe CE: CE wiring, CE safety electrical devices.
? Optional Deluxe CE: CE wiring, CE safety electrical devices.
Feeding hopper with double-layered on 4 sides and the inner layer is made of stainless steel with insulation material in between to provide good noise handling.
≥30HP default with chamber cooling system, effectively reducing the heat of chamber and shaft to ensure long durability and preventing material melting and fusion
Blade Production Process

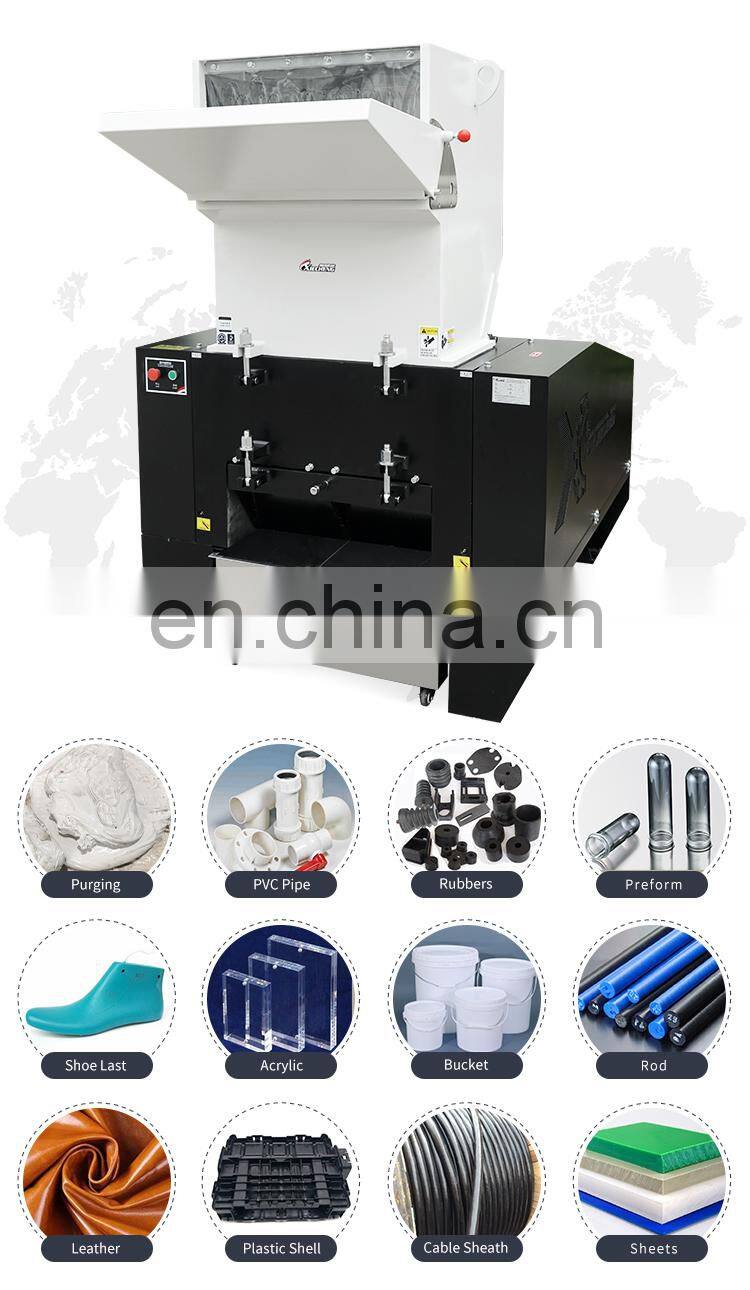

Application Range
The claw type plastic crushers are especially suitable for larger and harder subjects like injection lump plastics, etc. It can crush various soft and hard plastics and rubbers, such as: Purging, PVC Pipe, Rubbers, Preform, Shoe Last, Acrylic, Bucket, Rod, Leather, Plastic Shell, Cable Sheath, Sheets and so on.
Best Selling
About Us
Company Profile
In 2009, founded by Mr. Fuzhibo with its head quarter in Jiangmen city which known as a famous hometown of many overseas Chinese, Jiangmen Xiecheng Machinery Co., Ltd. has been devoted herself to be an integrated enterprise of R&D, manufacturing and marketing businesses for High-end Industrial Refrigeration Equipment, Rubber and Plastic Moulding Auxiliary Automation Equipment, and also Intelligent Integrated System Solutions.
Authenticated by IS09001, XIECHENG also successfully established the “6+1+C” full dimensional product service system with her own supply chain advantages of combining the six series of products, as Industrial Refrigeration, Mould Temp. Controlling, Material Conveying, Crushing & Recycling, Dehumidifying & Drying, and also Mixing, into central intelligent system solutions as Material Feeding, Air Supply, Water Supply and Power Supply, to fast fitting customers’ specific demands.
