Large dry ice pellet block production machine 1000kg/h

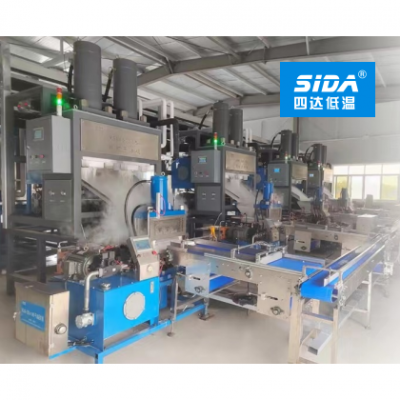

Dry ice production and packaging machine full auto line over 500kg/h

Generally the output of a basic dry ice production line is over 500kg/h at least. The main components of the dry ice production line are the dry ice pelletizer machine, dry ice reformer machine and dry ice packaging machine.

1. Dry ice pelletizer machine, also called granular dry ice maker machine

Model No.: KBM-500/KBM-1000 double head vertical model

Raw material: liquid CO2 (stored in cryogenic CO2 tank, water content less than 60ppm, pressure less than 2.5Mpa)

Dry ice size: Φ3-19mm

Dry ice output: 500kg/h/1000kg/h

Motor power: 11kw/22kw, 3phase 380V/50Hz

2. Dry ice reformer machine, also called dry ice block briquetting machine

Model No.: YKJ4-125x105/YKJ6-125x105

Raw materials: Φ3m crushed granular dry ice

Dry ice size: 125x105x(20-60)mm (only the dry ice thickness can be adjusted, dry ice size can be customized, such as 95x95, 150x150, 200x100, 250x150 etc.)

Dry ice output: ≥500kg/h, ≥1000kg/h

Motor power: 7.5kw, 3phase 380V/50Hz

3. Dry ice packaging line, consisting of dry ice sorting conveyor, dry ice packaging machine and dry ice tidying machine.

Model No.: BZX-125X105

Power: 4kw, 1phase 220V 50Hz

Packaging speed: 20-80 packs/min

Packaging film width: 320mm-360mm

Packaging height: 15-60mm

Film roll diameter: about 300mm

Main features

1. The dry ice pelletizer machine has vertical oil cylinder, and the cylinder moves up and down, eliminating the defect of pulling the cylinder caused by the eccentric load of the horizontal dry ice machine.

2. The floor space is very small, and the mold can be replaced standing on the ground and there is a lifting trolley, which is labor-saving and convenient. For other models in the industry, the staff need to climb and stand on the 2-meter-high equipment and need to hold the mold manually, which is very dangerous.

3. The weight of the dry ice block can be adjusted steplessly, and the weight error of each dry ice block is within 10g.
