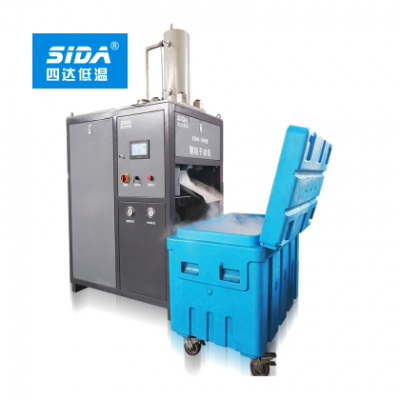

Large dry ice pellet making machine 300kg/h

Vertical dry ice pellet machine 300kg/h

Technical parameter:

1. Model No.: KBM-300 dry ice pelletizer machine (exclusive vertical design)

2. Raw material: liquid CO2 (stored in cryogenic CO2 tank, water content less than 60ppm)

3. Dry ice size: φ3mm,φ19mm

4. Capacity: <300kg/h

5. Dry ice density: ≥1500 kg/m3

6. Conversion rate: 40-43% (100kg Liquid CO2 can produce 40-43kg dry ice according to temperature and pressure of raw material liquid CO2)

7. Motor power: 11kw, 3phase 380V 50Hz

8. Run: fully automatic hydraulic operation

9. Volume of hydraulic oil tank: 180L

10. Size (L*W*H): 1250*900*(1670+700)mm

11. Weight: 1300kg

Main feature:

The dry ice generator extrusion adopts a vertical arrangement, which will not produce eccentric wear. Compared with the horizontal extrusion structure, it avoids the gravity friction wear of the piston and the defect of pulling the dry ice cylinder when the horizontal cylinder moves horizontally, greatly extending the life of the dry ice cavity, piston and seals.
