Home > Products > Outdoor fiber optic cable > Hanxin GYTY53 Outdoor electronic communication fiber optical cables armored fiber optic cable
Hanxin GYTY53 Outdoor electronic communication fiber optical cables armored fiber optic cable
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Shenzhen Hanxin 19 years communication cables ODM manufactory supply Flat Structure GYFXY cat6 sftp utp cable
-
Shenzhen Hanxin 22 years fiber optic communication cabling ODM factory stranded loose tube GYXTC8S self supporting cable
-
Shenzhen Hanxin 22 years fiber optic oem manufacturer supply aramid yarn aerial ADSS kit fibra optica armoured cable
-
Mini Olt Gepon epon gpon equipment ODM factory Hanxin 22 years outdoor multi mode aerial fiber optic cable GYXTC8S
-
Optical fiber manufacturers supply outdoor single mode 12 24 48 core GYTA marine cable
-
Shenzhen Hanxin 22 years fiber optic oem factory outdoor unitube micro g.652d JET flexible cable
Product Description
Hanxin GYTY53 Outdoor electronic communication fiber optical cables armored fiber optic cable
We are 22 years fiber optic cable manufactory!
Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.
Product Description

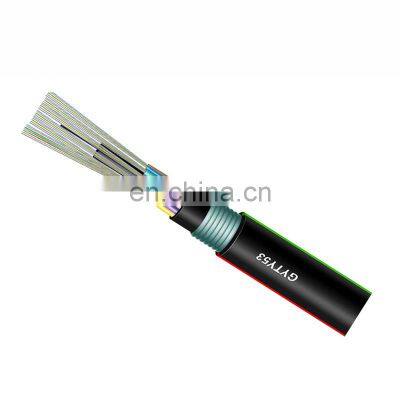

Description
1.250μm Coloured Fiber
2.PBT loose Tube
3.Tube Filling Compound(Gel)
4.Steel wire central strength menber
5.PSP corrugated steel tape armored
6.PE/LSZH outer Sheath
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE/LSZH sheath protects cable from ultraviolet radiation
· 100% cable core filling
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelengthλcc | ≤1260nm |
Standards:
Fiber optical cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C.
