Hanxin GYFXTY aramid yarn high strength glass JET indoor outdoor distribution cable with black or color HDPE sheath
- 1000 per Month
- T/T Credit Card
You May Like
-
Hanxin GYFXY water-blocking Outdoor fiber optic cables Unitube Non-metallic Non-armored Cable with polyethylene PE sheath
-
Hanxin GYFFY 12 core Outdoor fiber optic cables TWO FRP Aerial Fiber Optic Cable
-
Hanxin GYFXTY Outdoor fiber optic cables Miniature central beam tube type gas blowing optical cable
-
Hanxin GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Outdoor fiber optic cables
-
Hanxin GYTA single mode Stranded Loose Tube Aluminum Armored Cable Direct Buried Underground Outdoor fiber optic cables
-
Hanxin GYTS stranded loose tube armored Outdoor fiber optic cables with PE outer sheath Prevent water ingress
Product Description
Product description/ PRODUCT
The fibers,200/250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.

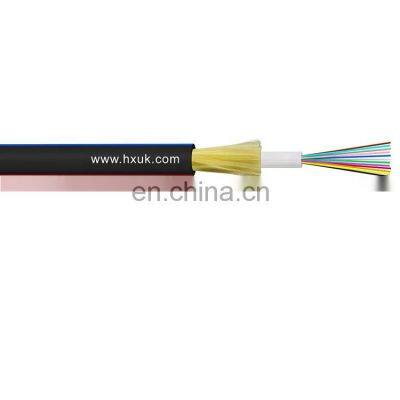

Product Picture/ PRODUCT
Product Features/ PRODUCT
·Non-metallic constructure helps to avoid Radio frequency interference and Electromagnetic interference, which is better for distribution in a minefield
·Specially designed compact structure is good at preventing loose tubes from shrinking
·Aramid yarn ensures good performance of tensile strength
·Good fire prevention performance
·The high strength glass fiber can protect the cable from mouse bites
·High dense fiber packed, small diameter and light weight,soft and strong tensile ability;Adopting PVC or LSZH sheath, can be indoor/outdoor distribution flexibly
Product Application / PRODUCT
·The usage of micro cable, it applies for fiber to the home project.
Optical Characteristics / PRODUCT
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850 |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300 |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
≤1480nm |
|
|
Technical Parameters / PRODUCT
|
Cable Type |
|
|
|
|
|
|
|
GYFXTY |
2-24 |
6.0 |
20 |
1000/2000 |
200/400 |
30D/15D |
|
GYFXTY |
2-24 |
6.5 |
25 |
1200/2500 |
250/500 |
30D/15D |
|
GYFXTY |
2-24 |
7.0 |
28 |
1500/3000 |
250/500 |
30D/15D |
|
GYFXTY |
2-24 |
7.5 |
30 |
1800/3500 |
250/500 |
30D/15D |
storage/Operating Temperature : -40℃ to + 70℃
