Product Description

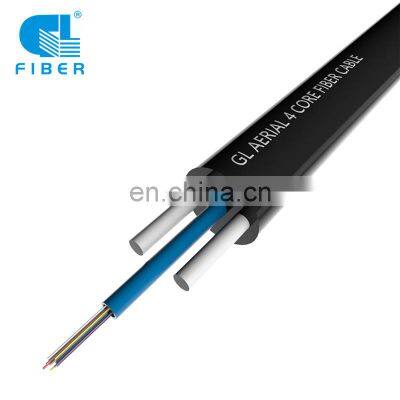

2/4/6/8/12/16/24Hilo all dielectric HDPE sheath Single mode flat optical fiber cable
1.Cable structure
Cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.
Dimension and Properties
Fiber count |
2/4/6/8/12/16/24 |
Max. No of loose tube / filler No. |
1/0 |
Number of fiber in tube |
2/4/6/8/12/16/24 |
Gel filled in Loose tube |
Yes/Nn |
Central strength member |
FRP |
Water blocking material |
filling gel in cable |
Outer sheath thickness |
1.8-2.0mm |
Outer sheath material |
HDPE |
Cable OD(mm)Approx |
8.5*4.3mm |
Cable weight (kg/km) |
45 |
Operation temperature range |
-40 ℃to + 70 ℃ |
Installation temperature range |
-40 ℃to + 70 ℃ |
Transport and storage temperature range |
-40 ℃ to + 70℃ |
Span |
80/100/120m |
Suitable for lines |
≤35KV If the cable will be used on the more than35KV,the Outer Sheath material must be Anti-tracking (AT) |
Rated tensile strength (KN) |
1.2 |
Maximum allowable tensile(KN) |
0.5 |
Crush resistance |
Installation :2200 (N/100mm) Operating :1100N/100mm |
Minimal installation bending radius |
20 x OD |
Minimal operation bending radius |
10 x OD |
The fibres shall be marked by a coloured coating with 12 different colours according to EIA/TIA 598:
PACKING AND DRUM
The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
MORE PRODUCT
COMPANY IMFORMATION
Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.
Over 200.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.
OUR EXIHIBITION
Certification
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
