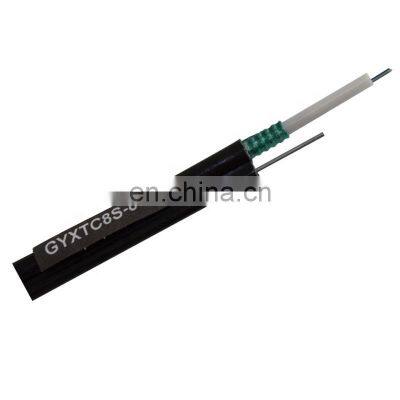

12 Core Single mode fiber optic cable Figure 8 Self-supporting fiber optical Cable GYXTC8S
- 1000 per Month
- T/T Credit Card
You May Like
-
GL Micropipe Air blown Fiber Optical Cable With 4 6 8 12 24 48 96 144 288 Core Small Diameter Air Blown Cable
-
GL factory manufacture air blown mirco fiber optic cable GCYFY/GCYFTY fiber cable with 4-144 core customized
-
GL factory price best hotsales 12 core single mode Air Blown Micro Duct fiber cable
-
GL Mirco Duct Air Blown Fiber Optic Cable 12 24 48 96 144 288 Core Blowing Distance Is 3000 Meters
-
FTTX Solution Optic Fiber Cable Indoor Cable FTTH Drop Cable Optical Distribution Box Splliter ODF OLT
-
Best hotsales fiber cable Mirco blown fiber cable 2 core 4 core 6 core
Product Description
Product Descriptions:
The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof
compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are
completed with a polyethylene(PE) sheath to be figure 8 structure.
Technical Parameters:
Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage | |||
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
2 | 3.8×5.5 | 52.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
4 | 3.8×5.5 | 52.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
6 | 3.8×5.5 | 52.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
8 | 3.8×5.5 | 52.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
12 | 3.8×5.5 | 52.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
Optical characteristics:
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 |
| |||
Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
G.652D | B2: Zero dispersion shifted | |||
G.655 | B1.2 :Cut-off wavelength shifted | |||
G.657(A1,A2 ,B3) | B4: Main technical data for positive | |||
Certification
PAKING AND SHIPPING
1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type, Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters. | Our Service: 1.We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience. 2.We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to your requirment and description; 3.Please send us inquiry for more products info and we will give you feedback in 12 hours. |
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
