2021 Hot Sale Outdoor Aerail Figure 8 Optical Fiber Cable Gyxtc8y With Steel Messenger 2core 4core 6core Ftth Fibre Optic Cable
- T/T Credit Card
You May Like
-
Hot Sale Factory Wholesale Central Loose Tube Single Mode 4 Core Fiber Optical Cable Gyxtc8y
-
Gytc8s GL Factory Wholesale Central Loose Tube Single Mode 4 Core Fiber Optical Cable Gyxtc8y
-
Factory Wholesale Ftth Central Loose Tube Single Mode Fiber Optical Cable
-
Factory Wholesale Single Mode Fiber Optical Cable Gyxtc8y
-
Factory Wholesale Ftth Central Loose Tube Single Mode 4 Core Fiber Optical Cable Gyxtc8y
-
Factory Wholesale Ftth Central Loose Tube Single Mode 4 Core Fiber Optical Cable Gyxtc8y Drop Cable
Product Description

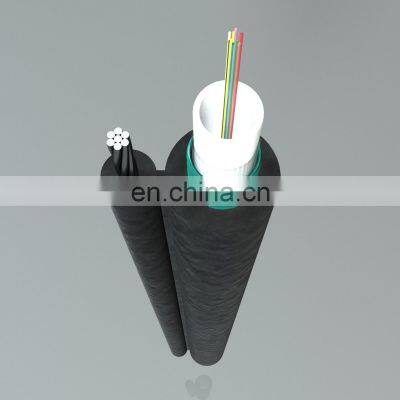

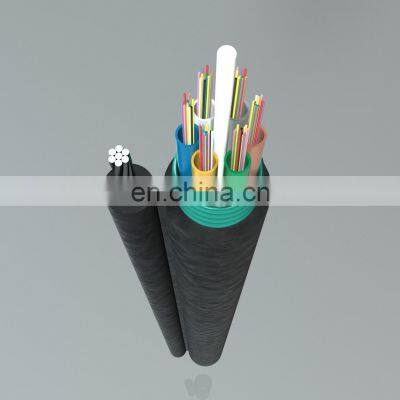

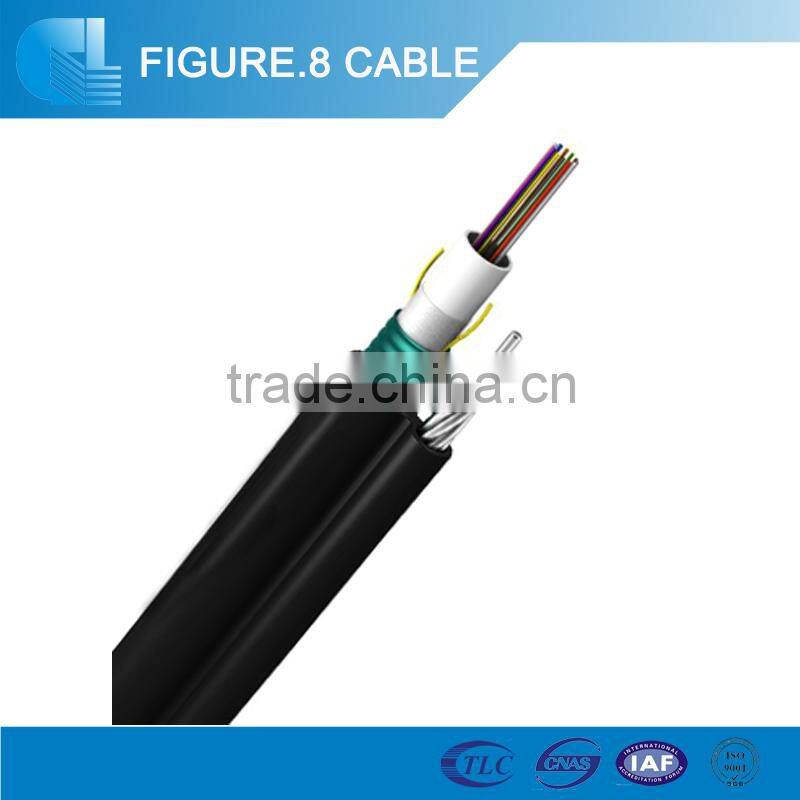

Figure.8 Cable with steel tape or aluminum tape(GYXTC8S/GYXTC8A)
1) The type of this fiber with single-mode G652 G655 G657 or multimode 50/125, 62.5/125. etc, with a loose tube which is made of high modulus plastic

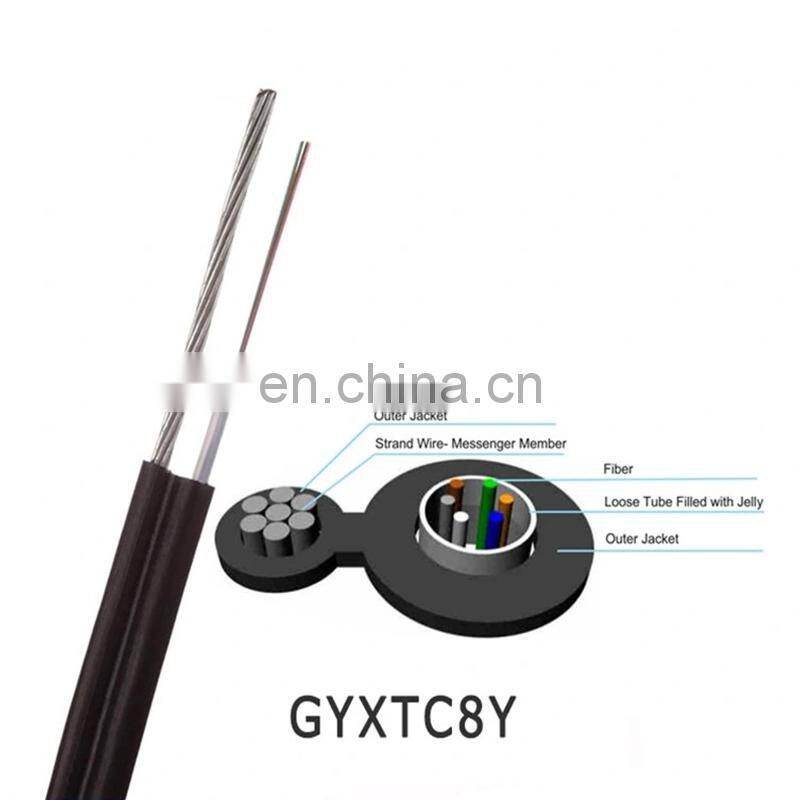

2) 2~12 fibers, jelly filled, fiber contained central loose tube, water blocking jelly,copolymer coated PSP or APL, PE outer sheath, fig 8 type, one steel wire suspension line
3) This cable is light, flexible, easy for the laying and it is one of products for FTTH solution.
APPLICATION
1) Adopted to areial self-supporting installation
2) Long-distance communication, local trunk line, CATV & computer networks system.
CABLE INFORMATION
| Cable type | Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
| GYXTC8S-2-8 | 8.1×16.9 | 117 | ≥2000/≥6000 | ≥300/≥1000 |
| GYXTC8S -10-12 | 8.1×16.9 | 121 | ≥2000/≥6000 | ≥300/≥1000 |
| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657(A1,A2 ,B3) | B4: Main technical data for positive | |||
| dispersion shifted single-mode fiber | ||||
Note:
3. Specially designed Cable structure is available on request.
Photo show:

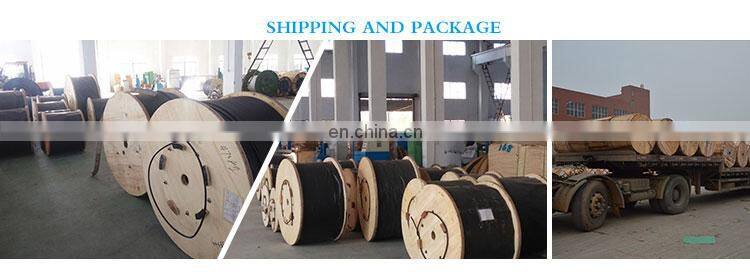

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Quote Request Information
1. Fiber Count: 2 to 12 Fibers
2. Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3
3. Order Quantity
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
