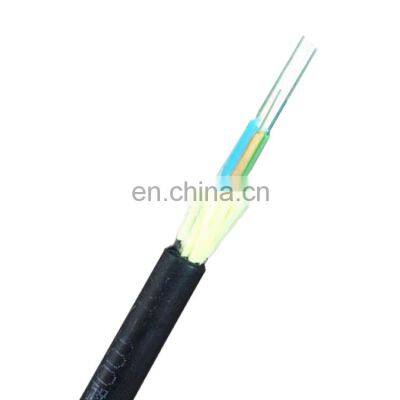

Fibre Optic Cable ADSS 32 Cores Fiber Cable
- T/T Credit Card
You May Like
-
24 Core Double Sheath Self Support 400m Span ADSS Fiber Optic Cable
-
500m Span Self Supporting 24 Core Fiber Optic Cable Adss Optical Fiber Cable Price List
-
Fiber Optical Cable Adss Fiber Optic 12 fo
-
12 Core pe Sheath Adss Cable Manufacturer Armored Adss Cable
-
12 24 96 Core 12 Fiber Single Mode Aerial Dark Optical Fiber Cable ADSS
-
120m Span 6 12 24 48 FO Cores Single Mode G652D ADSS Fiber Optic Cable
Product Description
fibre optica de 12 hilos adss cable fiber hdpe jacket
TECHNICAL DATE
| Ref. Outer Diameter (mm) | Ref. Weight (kg/km) | Rec. Daily Max. Working Tension (kN) | Max Allowable Working Tension (kN) | Break Strength (kN) | Strength Member CSA (mm2) | Modulus of Elasticity CSA (kN/mm2) | Heat Expansion Coefficient (x10- 6/K) | Suitable Span (NESC Standard,m) | ||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
MORE PRODUCT
COMPANY IMFORMATION
Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.
Over 200.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.
OUR EXIHIBITION
1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type, Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters. |
