Product Description
24 core self-supporting optical fiber cable ADSS for aerial

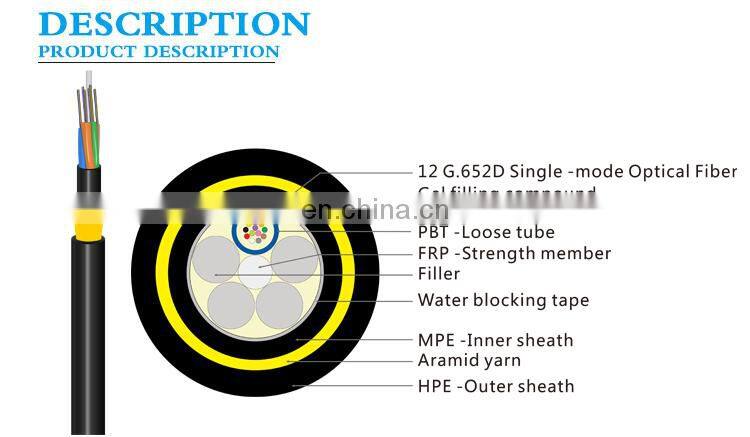

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
| Model Number | ADSS |
| Type | Coaxial |
| Number of Conductors | ≥ 10 |
| Application | Aerial fiber cable |
| Function | Delivery signal light |
| Certification | ADSS pass ISO9001,UL, TIL, CE |
| Sheath material | PE or AT for adss fiber optic cable |
| Fiber type | OS1/OS2,OM1,OM2,OM3,OM4 |
| Length per roll | 2km/3km/4km ADSS fiber |
| Marking | printing |
| Fiber count | 2core to 288 core |
| Strength member | FRP |
COMPANY IMFORMATION
Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.
Over 200.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.
OUR EXIHIBITION
PAKING AND SHIPPING
1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type, Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters. | Our Service: 1.We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience. 2.We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to your requirment and description; 3.Please send us inquiry for more products info and we will give you feedback in 12 hours. |
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
