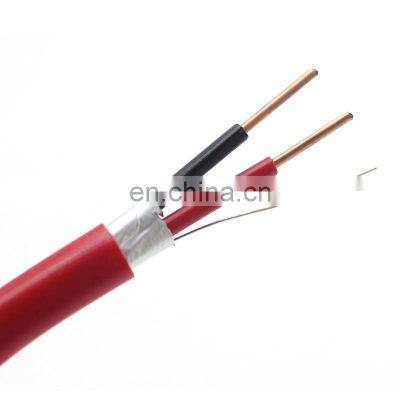

FPLR fire alarm cable

FPLR fire alarm cable

Product Description:

Application:

Fire fighting Alarm Systems in hazardous area where the safety is highly required during fire condition

These cables are produced to be able to work between 30 & 180 minutes in fire situation.

Conductor: Solid or Stranded Bare Copper

Insulation: Special Silicon

Shield: Aluminum Foil-Polyester Tape (100% Coverage)

             Or Mica Tape (Fire resistant)

             BC or TC Drain Wire wrapped by Polyester Tapes

Sheath: Low Smoke Halogen Free

Fire resistant property: 750°C according to IEC60331

Standard Packing: Coils 100M or 500M Drum

Nos. of Cores & Section

(mm2) Max Electrical Resistance to 20o (Ohm/km) Strand and Wire Diameter

(mm) Insulation Diam.

(mm) Outer Diameter

(mm)

2×1.00 18.01 1×1.13 2.6±0.1 8.2±0.2

3×1.00 18.01 1×1.13 2.6±0.1 9.2±0.2

4×1.00 18.01 1×1.13 2.6±0.1 10.2±0.2

2×1.50 12.01 1×1.38 2.8±0.1 8.6±0.2

3×1.50 12.01 1×1.38 2.8±0.1 9.6±0.2

4×1.50 12.01 1×1.38 2.8±0.1 10.4±0.2

2×2.50 7.41 1×1.78 or 7×0.67 3.4±0.1 10.6±0.2

3×2.50 7.41 1×1.78 or 7×0.67 3.4±0.1 11.6±0.2

4×2.50 7.41 1×1.78 or 7×0.67 3.4±0.1 12.6±0.2

*Other cable items with customer specification are available on demand.

*This cable is available from 0.5 to 2.5 sqmm and from 2 to 5 cores.
