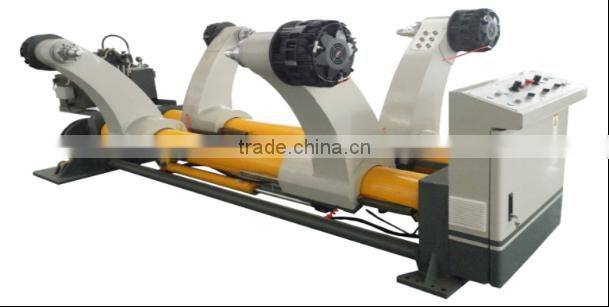

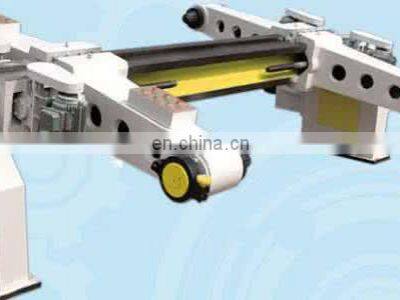

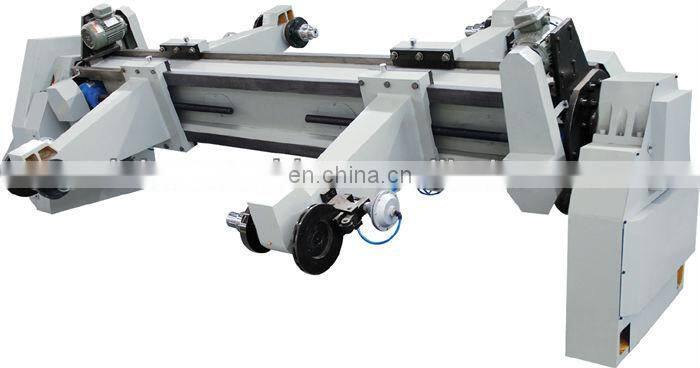

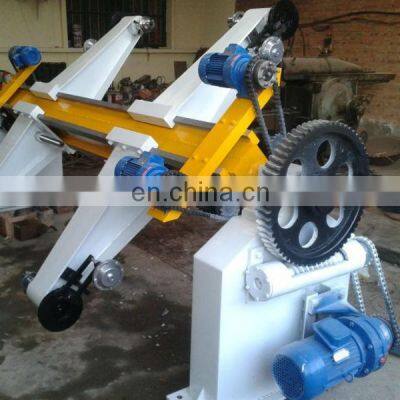

2000 Knight Machinery Shaftless Mill Roll Stand

Knight Electric Mill Roll Stand without Shaft.( A Type)   and

Knight Electric Mill Roll Stand without Shaft.( B Type)

Features:

1    Max. diameter of reel paper:1500mm.

2    Awailable Width:1400-2200mm.

3    Reel paper lift-lower, clamp, loosen, movement, contraposition operated bty electricity pressure. feeding paper quickly.

4    Reel paper strain adjustment adopts pneumatic brake. The finial adopts taper style or bulge style.

 Spec:

Machinery shaftless mill roll stand

structure features:

1 Symmetrical structure can install two bundle of paperboard at the same time,can make non-stop change paper assignment.

2 adopt the electric original clamping ,loosing,center moving and left-right moving.

3 the brake adjusting adopt the butterfly type steam-drive system.

4 with two level automatic expansion type paper clip,paper clip is two level type three and four inches.

technical parameters:

1,movement way for the stand: mechanical electric 2,clip paperboard range: max.:1900mm     min.:900mm

3,diameter of the clipping paperboard: max.:1500mm   min.:350mm

4,largest loading for one side: 2000Kg

5,working pressure for the air soutce(Mpa):0.4---0.8Mpa

6,working power supply: voltage 380V   frequency 50Hz

1.Q: Are you a factory or trading company?

A: We are a manufacture which is specialized in the production of various kinds

of carton equipments for 30 years.(with export license)

2.Q: Where is your factory located? How can I visit here?

A: Our factory is located in zhuwa industrial area south of Dongguang county,  Cangzhou City,

Hebei province, China. It is about 2 hours from Jinan International airport by car.  And it is

about 1 hour from Cangzhou high-speed rail station

We can pick you up if you need, welcome to visit our factory.

3.Q: What are your products?

A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard

production line, high speed printing machine, ordinary printing machine, single facer,

rotary die cutter and other corrugated cardboard production equipments.

4.Q: How does your factory do regarding quality controlling?

A: Over the years our company take “the quality first” “integrity-based”

 corporate purpose always meet users’ requirements as our sole purpose,

providing the products with excellent quality, professional technology.

XINHUA packing machinery CO.,LTD always attach great importance to quality

controlling from the very beginning to the very end .

1)All raw material we used are environmently-friendly

2)skillful workers care every details in handlling the producing and packing process

3)Quality control department specially responsiblle for quality in each process.

5.Q: How is the evaluation of the products?

A: Products are distributed Russia, the Middle East, Africa, Southeast Asia,

EU and other countries and throughout the country. Product quality and enterprise

 reputation get the high praise at home and aboard.

6.Q: What is the payment terms?

A: T/T, it is 30% deposit due at placing order and 70% balance due before loading

                 Anna Ma

                                sales managers

DongGuang XinHua Packing Machinery co.,ltd

Mob/Whatsapp:+8618632876767  QQ:931032158
