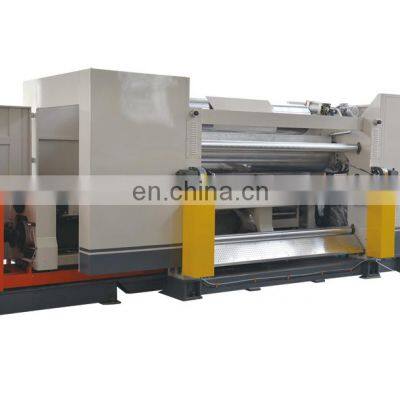

Carton Machine 1800mm 320Multi-cassette Positive Pressure Single Facer
- T/T Credit Card
You May Like
-
Single Shaft Single Knife Cutting Machine Sheet Cutter Machine
-
SF-380S Adsorb Type Single Facer 2 Ply Corrugated Cardboard Production Line
-
Corrugated Carton Box Making Single Facer Machine
-
268-380 Absorb Type Corrugated Single Facer Machines ( 2015 Hot Sale )
-
Single Facer Corrugated Machine/double Corrugated Cardboard Production Line/cartons Packing Machine
-
Single Facer
Product Description
Structural feature:
design speed:150m/min.
effective width:1800mm.
main corrugating roller:320mm(According flute differ),pressure roller337mm,preheat roller340mm.
using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
corrugated roller adopt 48CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment.
corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time.
Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops, prevent glue exhausted.
the moveable type glue unit is convenient to clean and maintain.
easy operation control system, touch screen operation interface, Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.
Technical parameters:
1,working effective width:1800mm 2,operation direction:left or right(Determined in accordance with the customer's facility)
3,design speed:160m/min 4,temperature range:160—200℃
5,air source:0.4—0.9Mpa 6,steam pressure:0.8—1.3Mpa
7,corrugate flute:(UV type or UVV type)
Roller diameter parameters:
1,Main corrugated roller diameter: 320mm vice corrugated roller diameter:320mm
2,pressure roller diameter: 337mm glue roller diameter:240mm
3,Fixed paste roller diameter: 175mm preheat roller diameter:340mm
Power motor parameters
1,Main variable frequency drive motor:45KW rated voltage:380V 50Hz continuous(S1)working system
2.Suction motor:11KW rated voltage:380V 50Hz continuous(S1)working system
3,adjust glue reducer :100W rated voltage:380V 50Hz short(S2)working system
4,adjust glue gap motor:250W rated voltage:380V 50Hz short(S2)working system
5,glue pump motor: 2.2KW rated voltage:380V 50Hz continuous(S1)working system
Mainly purchased parts, raw materials and origin:
Name of main parts | Brands or place of origin | Material |
Wallboard and base | Production on own | HT200 |
Transmission box | Purchased and production on own | QT200 |
Rotary joint and metal hose | Fujian quanzhou yujie |
|
Main frequency motor | Hebei hengshui | 45KW frequency motor |
reducer | Taiwan CPG |
|
bearing | HRB,ZWZ,LYC or zhejiang | Tile roller and pressure roller are from America TIMKEN |
Seat belt bearing | Zhejiang wuhuan |
|
High pressure fan | Shanghai yingfa |
|
cylinder | Zhejiang sono CSM |
|
Solenoid valve | Zhejiang sono CSM |
|
traps | Beijing traps | Inverted bucket |
Contactors and Relays | France Schneider |
|
Position Sensor | Korea Autonics |
|
Frequency controller | Taiwan delta |
|
PLC | Taiwan delta |
|
Human machine interface | Taiwan weintek |
|
