Dixell remote temperature display x-rep-00000 Emerson thermostat

Prime CX series refrigeration system thermostat

Controller xr10cx-5n1c1 compressor, no defrosting. With ttll to RS485 serial port, suitable for centralized monitoring

Controller xr20cx-5n1c1 compressor, shutdown and defrost. With ttll to RS485 serial port, suitable for centralized monitoring

Controller xr30cx-5n1c1 compressor, alarm dual output, shutdown and defrosting. With ttll to RS485 serial port, suitable for centralized monitoring

Controller xr40cx-5n1c1 compressor, defrosting dual output. With ttll to RS485 serial port, suitable for centralized monitoring

The controller xr60cx-5n1c1 has three outputs: compressor, defroster and fan. With ttll to RS485 serial port, suitable for centralized monitoring

Controller xr70cx-5n1c3 compressor, defroster, fan and alarm (Library lamp) four outputs. With ttll to RS485 serial port, it is suitable for centralized monitoring

Controller xr70cx-5n0i3 compressor, defrosting (with clock), fan, alarm (Library lamp) four outputs. With ttll to RS485 serial port, it is suitable for centralized monitoring

Controller xr75cx-5n7c3 compressor, defroster, fan, multi-functional four output. With ttll to RS485 serial port, suitable for centralized monitoring

Controller xr75cx-5n6i3 compressor, defrosting (with clock), fan, multifunctional four output. With ttll to RS485 serial port, it is suitable for centralized monitoring

The controller xr570c-0n0c3 is an old model, and its function is similar to that of xr70cx

Controller xr35cx-5n7i3 compressor, alarm or warehouse light dual output, shutdown and defrosting. With RS485 serial port, it is suitable for centralized monitoring

Controller xr64cx-5n0c3 compressor, double fans and three outputs. With ttll to RS485 serial port, suitable for centralized monitoring

The controller xr72cx-5n0c3 has four outputs: compressor, defroster, fan and 2 compressor. With ttll to RS485 serial port, suitable for centralized monitoring

Controller xr77cx-5n7c3 compressor, defroster, fan, multi-function, four outputs, independent terminals. With RS485 serial port, it is suitable for centralized monitoring

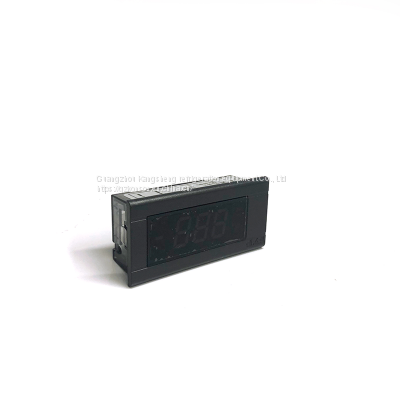

X-rep remote temperature display, overall dimension:

30 * 64mm, protection grade: IP65
