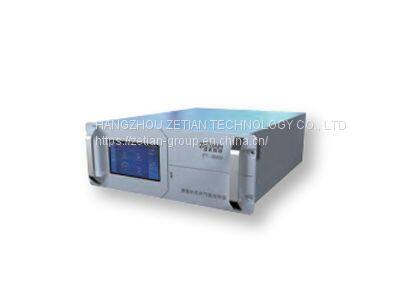

FT-3000 FTIR Gas Analyzer

HANGZHOU CHUNLAI (ZETIAN) TECHNOLOGY was established in 2008, and has national wide impact in China now as a fast-growing company specialized in environmental pollution monitoring and industrial process control. We focus on the UV gas analyzer, Laser TDLAS gas analyzer, continuous emission monitoring system, dust monitor, humidity meter, etc.

FT-3000 is a online continuous gas monitoring analyzer based on fourier transform infrared spectroscopy, monitoring emission gas of SO2, NOx(NO, NO2), CH4, NH3, HCl, HF, CO, CO2, O2, H2O, and other components at the same time, and can extend to measure other components such as SO3, N2O, etc. according to user demand. The continuous gas analyzer has high measurement precision, high range dynamics, low detection limit, which is suitable for small emission monitoring.

Feature Of FT-3000 FTIR Gas Analyzer

l ZETIAN is a gas analyzer China manufacturer, our continuous gas analyzer can easure SO2, NOx (NO, NO2), CH4, NH3, HCl, HF, CO, CO2, O2, H2O, and other components at the same time, and can extend to measure other components such as SO3, N2O, etc;

l The entire high-temperature heating to prevent component loss of gas pollutant compositions from condensation;

l This laser gas analyzer has a white cavity design, high signal-to-noise ratio, measuring optical path up to 13m, low detection limit, high range dynamics, meet the requirements of ultra-low emission monitoring; Using the least squares method and the PLS algorithm, selecting the appropriate wavelength range, can effectively eliminate the interference of H2O and other components; Interior cavity mirror of gas cell is plated with gold, high reflectivity. Protect gas purging, long maintenance intervals.

Application Of FT-3000 FTIR Gas Analyzer

As one of the best CEMS manufacturers in China, ZETIAN has developed this amazing FT-3000 FTIR continuous gas analyzer and it can be applied to waste incineration power plant, ultra-low emission monitoring, solid waste treatment plant, marine exhaust emission.

Specification Of FT-3000 FTIR Gas Analyzer

l SO2: 0~75mg/m3, NO: 0~200mg/m3

l NO2: 0~40mg/m3, NOx: 0~200mg/m3

l CH4: 0~20mg/m3, NH3: 0~10mg/m3

l HCl: 0~15mg/m3, HF: 0~10mg/m3

l CO: 0~75mg/m3, CO2: (0~20) %

l H2O: (0~40) %, O2: (0~25) %

l Zero Drift: ≤±2%F.S./7d

l Span Drift: ≤±2%F.S./7d

l Linearity Error: ≤±2%F.S.
