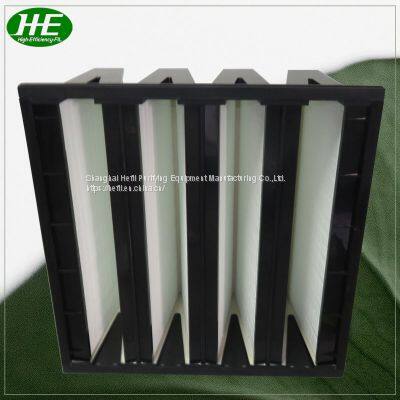

Factory Price V Bank Air Filter Compact Filter for HVAC System

FOB Price

USD $25 - $80 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai port
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HEFIL	Place of Origin	China
Model Number	HMV	After-sales Service Provided	Engineers available to service machinery overseas
Dimension(LWH)	Custom	Condition	New
Efficiency	M6-U16	Medium Material	Fiberglass
Filtration Grade	Hepa Filter	Construction	Other

Product Description

Advantages
1.Filter efficiency ranges from E10 to U17.
2.Adopt computer-controlled automatic production line for manufacture of mini pleat filter material, good stability of filtration efficiency.
3.Using special fiberglass paper or PP paper as the filter media, good stability of filtration efficiency.
4.Frame can be made of galvanized steel sheet, stainless steel sheet or ABS plastic.
5.Each filter is tested according to EN1822:2009.

Material Instructions
1.Media: Applies fiberglass or PP filter paper.
2.Frame: Galvanized steel sheet, stainless steel sheet or ABS plastic with V-Bank high capacity.
3.Separator: Hot-melt glue.
4.Sealant: Polyurethane.
5.Temperature: Maximum 90°C in continuous service

Application
Suitable for air conditioning purification equipment needs high ventilation, such as medium filter and terminal filter in air-conditioning systems.

Structure Drawings

Common Specifications
Model	Dimensions	Structural Style	Frame	Media Area (m2)	Rated Air Flow (m3/h)	Initial Pressure Drop (Pa)
Model	W×H×D (mm)	Structural Style	Frame	Media Area (m2)	Rated Air Flow (m3/h)	F8	E10	H13	H14
HMV1212-2VF25	287×287×292	287 Header 25mm	2V Plastic/Metal	4.2	800	110	180	260	300
HMV1220-2VF25	287×490×292			7.7	1200
HMV1224-2VF25	287×592×292			9.4	1600
HMV2012-3VF25	490×287×292	490 Header 25mm	3V Plastic/Metal	6.4	1100
HMV2020-3VF25	490×490×292			11.6	1900
HMV2024-3VF25	490×592×292			14.4	2400
HMV2412-3VF20/25	592×287×292	592 Header 20/25mm	3V Plastic/Metal	6.4	1100
HMV2420-3VF20/25	592×490×292			11.6	1900
HMV2424-3VF20/25	592×592×292			14.4	2400
HMV2412-4VF20/25	592×287×292		4V Plastic/Metal	8.4	1600
HMV2420-4VF20/25	592×490×292			15.4	2500
HMV2424-4VF20/25	592×592×292			18.8	3200
HMV2412-5VF25	592×287×292	592 Header 25mm	5V Plastic/Metal	10.5	1800
HMV2420-5VF25	592×490×292			19.0	3200
HMV2424-5VF25	592×592×292			23.5	3900
HMV1212-2V	305×305×292	610 Box	2V Plastic/Metal	5.4	850
HMV1224-2V	305×610×292		2V Plastic/Metal	10.8	1700
HMV2412-4V	610×305×292		4V Metal	11	1700
HMV2424-4V	610×610×292		4V Metal	22	3400
HMV2412-5V	610×305×292		5V Plastic/Metal	13.5	2100
HMV2424-5V	610×610×292		5V Plastic/Metal	27	4200
HMV2412-6V	610×305×292		6V Metal	16	2500
HMV2424-6V	610×610×292		6V Metal	32	5000.

Note: HEFIL makes various of other models' HMV filter which are not listed in above table. Please consult with us if you need.
The Initial Pressure Drop and Rated Air Flow Performance Curve

In case of specifications or structures changes, HEFIL will provide up-to-date data on website: .
