Mini Pleated Gel Seal Clean Room HEPA Air Filter
- shanghai port
- T/T L/C
- 7 days
You May Like
-
High Efficiency Deep Pleated Separator HEPA Air Filter With Clapboard
-
H13, H14 HEPA Air Filter With Aluminium Cardboard Separator
-
Aluminum/Galvanized Steel/Stainless Steel Fiberglass Paper Deep Pleat HEPA Filter With Separator H13 H14
-
Deep Pleated Box Type HEPA Filter With Separator
-
Paper Separator Deep Pleated Fiberglass Air Filter HEPA
-
Aluminum Alloy or Metal Frame Mini- Pleats HVAC Panel HEPA Air Filter
Product Details
| Brand Name | HEFIL | Place of Origin | China | |
| Model Number | HMG | After-sales Service Provided | Engineers available to service machinery overseas | |
| Dimension(L*W*H) | Custom | Condition | New | |
| Efficiency | H13-U17 | Medium Material | Microfiber | |
| Filtration Grade | Ulpa Filter | Construction | Panel Filter |
Product Description

Filter efficiency ranges from H14 to U17.
Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
Use special ultra-fine fiberglass paper as the filter media, good stability of filtration efficiency.
Double side retainers, protect the filter material, good strength.
Light in weight, compact in structure.

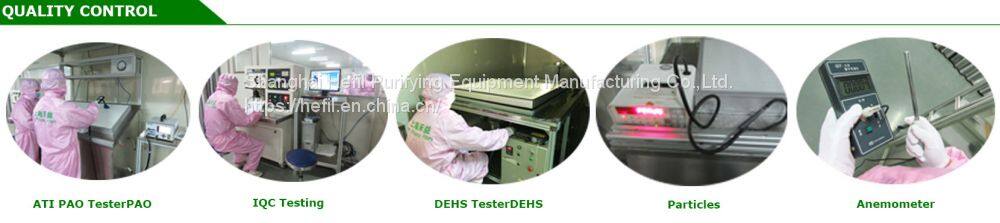

Each ULPA/HEPA filter is tested according to EN1822:2009.
Material Instructions
Structure: L-type side gel seal, Y-type top gel seal.
Media: Ultra-fine fiberglass filter paper.
Frame: Anodized aluminum alloy.
Separator: Hot-melt glue.
Sealant: Polyurethane.
Temperature: Maximum 90°C in continuous service.
Application
Suitable for electronics, pharmaceutical industry, clean room, HEPA diffuser, laminar flow devices and the occasions require ultra-high cleanliness.
Common Specifications
Model | Dimensions | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
| W×H×D (mm) | ||||
| HMG610/10-70L | 610×610×70 | 9.5 | 800 | ≤220 |
| HMG610/03-93L | 305×305×93 | 2.7 | 250 | |
| HMG610/05-93L | 305×610×93 | 5.9 | 500 | |
| HMG610/10-93L | 610×610×93 | 13.0 | 1000 | |
| HMG610/15-93L | 915×610×93 | 20.0 | 1500 | |
| HMG610/20-93L | 1220×610×93 | 27.0 | 2000 | |
| HMG610/03-104Y | 305×305×104 | 3.4 | 320 | ≤250 |
| HMG610/05-104Y | 305×610×104 | 6.8 | 640 | |
| HMG610/10-104Y | 610×610×104 | 13.9 | 1280 | |
| HMG610/15-104Y | 915×610×104 | 20.9 | 1920 | |
| HMG610/20-104Y | 1220×610×104 | 28.0 | 2560 |
Note: HEFIL makes various of other models' HMG filter which are not listed in above table. Please consult with us if you need.
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: .
