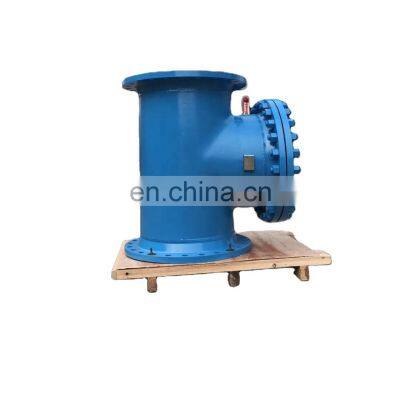

T type strainer DIN3202 F1 Cast steel stainless steelPN16/PN25 T typo valvulas big size
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Double acting spring return ball valve butterfly valve pneumatic actuator
-
API ANSI BS DIN Globe valve carbon steel GS C25 industrial valve solutions
-
New products Double acting spring return ball valve butterfly valve pneumatic actuator hs code 8412390000
-
API600 pressure sealed carbon steel body Trim No.5 GATE VALVE HS CODE 8481804090
-
EN12288 DIN PN64 DN200 GATE VALVE Large size bevel gear operated carbon steel body RAL7048 painting compuerta valvulas
-
ANSI DIN STANDARD Carbon Steel Soft Sealed Flange End Full Hole Sleeve PLUG VALVE API599 API6D
Product Description
Products Description
DOMOS VALVE INDUSTRIAL VALVE SERIEST type Stainer Flanged END large size
Technical Specification
Brand: DMS ,DPV,DHV,POWELL etc.
Size Range:1/ 2"-32"
Pressure Rating: 150lb-600lb,PN6-PN64
Material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Temperature Range: -29°C~500°C
Applicable Standards:
Design: Factory's data
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607,API6A
Inspection and test: API 598,API6D
Brand: DMS ,DPV,DHV,POWELL etc.
Size Range:1/ 2"-32"
Pressure Rating: 150lb-600lb,PN6-PN64
Material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Temperature Range: -29°C~500°C
Applicable Standards:
Design: Factory's data
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607,API6A
Inspection and test: API 598,API6D
Product Description
* Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, etc.
* Construction: Y-Strainer Type or Basket Strainer Type
* Stainless Steel Screen Available in Wide Variety of Meshes and Perforations
* Bolted-On Cover Provides Easy Access to Interior for Routine Maintenance
* Design Prohibits Galling or Scoring of Seating Surfaces
* Coating: Standard Paint Coating
* Size Range: NPS 1/2” ~ 20” ; DN15 ~ DN500
* Pressure Rating: Class 150 ~ Class 600 ; PN16 ~ PN40
* End Type: RF, FF, RTJ, BW
Technical Specifications
* Design and Manufacture: BS1873 or ASME B16.34
* Pressure-Temperature Rating: ASME B16.34
* Face to Face Dimensions: ASME B16.10 or DIN 3202
* Flange Ends Dimensions: ASME B16.5 , ASME B16.47 or DIN 2543 ~ 2546, EN1092-1
* Butt-Welding Ends: ASME B 16.25 or EN 12627
* Inspection & Test: API 598 or DIN 3230
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 3 - 45 days
Valve Sample: Sample Available by DOMOS VALVE
Valve Color: Customer request
Valve Packing: Plywood BOX for Ball Valve
MOQ: 1 Set
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union
* Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, etc.
* Construction: Y-Strainer Type or Basket Strainer Type
* Stainless Steel Screen Available in Wide Variety of Meshes and Perforations
* Bolted-On Cover Provides Easy Access to Interior for Routine Maintenance
* Design Prohibits Galling or Scoring of Seating Surfaces
* Coating: Standard Paint Coating
* Size Range: NPS 1/2” ~ 20” ; DN15 ~ DN500
* Pressure Rating: Class 150 ~ Class 600 ; PN16 ~ PN40
* End Type: RF, FF, RTJ, BW
Technical Specifications
* Design and Manufacture: BS1873 or ASME B16.34
* Pressure-Temperature Rating: ASME B16.34
* Face to Face Dimensions: ASME B16.10 or DIN 3202
* Flange Ends Dimensions: ASME B16.5 , ASME B16.47 or DIN 2543 ~ 2546, EN1092-1
* Butt-Welding Ends: ASME B 16.25 or EN 12627
* Inspection & Test: API 598 or DIN 3230
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 3 - 45 days
Valve Sample: Sample Available by DOMOS VALVE
Valve Color: Customer request
Valve Packing: Plywood BOX for Ball Valve
MOQ: 1 Set
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union
Manufacturing Technique
Advantage of domos strainer
DOMOS STRAINER
The main type are Y type strainer,basket strainer,T type strainer,temporary strainer etc.
Strainer or called it as industrial filter.It is widely produced as welded pipe or casting mould type.So the price will be rather
differrent.
It is simple designing according to factory’s data but the flanges information could be according to ASME or DIN standard.
Strainer or called it as industrial filter.It is widely produced as welded pipe or casting mould type.So the price will be rather
differrent.
It is simple designing according to factory’s data but the flanges information could be according to ASME or DIN standard.
Product packaging
Delivery Details : 3~45 days after receiving the payment
Packing Details : Inner Package: bubble bags + plastic cover
Outer Package: plywoodbox with dryer inside
Outer Package: plywoodbox with dryer inside
Product Paramenters
Company Profile
Why Choose Us
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q:What certification do you have?
A:we have API,CE& ISO certification.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15- 45days if goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer sample before ordering but the client need to pay the cost of freight.And the sample’s cost could be deducted in your following order.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100%TT in advance.Payment＞3000USD,30% T/T in advance ,balance before shipment.
Q:How to place the order?
A:You could send emails to info@domosvalve.com directly or contact us on Alibaba chat now.We could accept trial order.
Q:How to contact us?
A:WENZHOU DOMOS FLUID EQUIPMENT CO.,LTD
Sales: Cowin wang
E-mail: info@domosvalve.com
Tel: 86-577-55576918
Fax: 86-577-55576929
Skype: cowinwang
Wechat:cowin001
Mob/WhatApp: +86-15205771013
