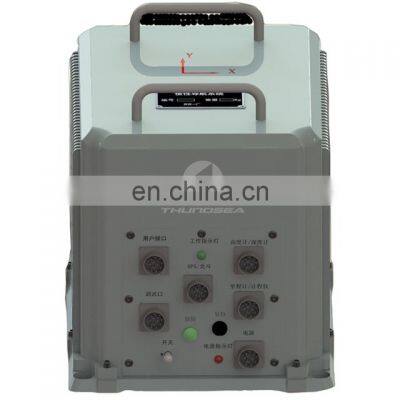

FG-980S marine navigation system light weight inertial navigation system
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
INEM-100 MEMS type AHRS marine navigation and control
-
INEM-100 MEMS type AHRS Fiber Optic Gyro Compass System
-
Pcb Infrared Thermal Image Ir Camera Thermal Imaging Camera System 640x480 15-300mm
-
15-300mm F4 Zoom Medium Wave Usb Night Vision Thermal Imaging Camera For Welding
-
China 15-300mm F4 Hdmi Zoom Programmable Drone Thermal Imaging Camera
-
Continuous Zoom Refrigeration Thermal Camera Microscope Module Infrared Thermal Imaging With Camera
Product Description
FG-980S marine navigation system light weight inertial navigation system
Alignment Time | GC:5min Fast:1.5min | ||
Accuracy | Position | Inertial:0.8nmile/h Integrated:30m | |
Velocity | Inertial:0.8m/s Integrated:0.5m/s | ||
Attitude | Inertial:0.05° Integrated:0.04° | ||
Heading | Inertial:0.07° Integrated:0.06° | ||
Dynamic Range | Angular Rate | ±400°/s | |
Acceleration | ±15g | ||
Operation Requirement | Temperature | Work:－45～＋70℃ Storage:－55～＋85℃ | |
Shock | Half-sinusoid:15g,11ms | ||
Vibration | 0.04g2/Hz | ||
MTBF | 50000h | ||
Power Supply/Consumption | 28VDC/30W | ||
Interface | MIL-STD-1553B ARINC-429 RS-422 | ||
Dimension | Navigation unit:238mm×188mm×190mm Max size:254mm×188mm×190mm | ||
Weight | 7.1kg(excluding receiving antenna) | ||
