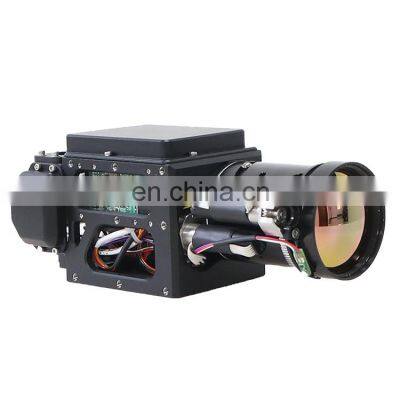

Mwir Cooled Firefighter Medium Wave Refrigeration Thermal Imaging Array Temperature Camera
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
F5.5 15-280mm Medium Wave Infrared Sensor Thermal Imaging Phone Camera
-
Infrared Long Wave Leak Detector Fire Fighting Thermal Imaging Zoom Camera
-
F5.5 15-280mm Cooled Infrared Thermal Module Imaging Door Camera 640x512
-
Mid Wave Infrared Mobile Phone Face Recognition Thermal Imaging Camera 1280x1024
-
Long Range Lynred Infrared Handheld Industrial Thermal Imaging Core Camera F5.5 15-280mm
-
Mitie Leo Mw Night Vision Infrared Thermal Imaging Equipment Pipe Inspection Core Camera
Product Description
Mwir Cooled Firefighter Medium Wave Refrigeration Thermal Imaging Array Temperature Camera
1.1 Detector
Detector | MCT 640 ×512 |
Spectral range | 3.7 ~4.8μm |
Pixel pitch | 15μm |
Cooling method | Stirling Refrigerator |
1.2 Lens
Focal length | 15 ㎜～280㎜ continuous zoom |
F | 5.5 |
1.3 Performance
FOV range | 1.97°(H) ×1.58°（V）to 35.4°(H) ×28.7°（V） |
Cooling time | ≤8 minutes in normal temperature |
Video Output | standard PAL format analog video signal |
Frame Frequency | 30Hz |
NETD | ≤25mk@25℃ |
Power source | DC 24 ~32 V, with power reverse polarity protection |
Power consumption | ≤10W@25℃, steady state |
Operation Temperature | -30℃~55℃ |
Storage Temperature | -40℃~70℃ |
Table 1. Connector (HARWIN:M80-5401605) pin definitions
Pin Number | Definitions |
1,9 | Power +, input |
2,10 | Power -, input |
3 | Video + output |
11 | Video GND |
4 | RS422_A |
12 | RS422_B |
5 | RS422_Z |
13 | RS422_Y |
6 | RS232_RX |
14 | RS232_TX |
7 | GND |
15 | GND |
8 | SER_LVDS_OUT- |
16 | SER_LVDS_OUT+ |
4.1 Electrical Interface Description for Communication
Channel
Communication between the thermal infrared imager and the host is
achieved via an RS232 asynchronous serial communication interface,
whose serial port setting is as follows:
Baud rate: 19200 bps
Start bits 1 bit
Stop bits: 1 bit
Verification: None
Data bits: 8 bit
The parameters listed above may be different in practice, subject to requirement of the client.
4.2 Software Interface Description for Communication
Protocol
a) The host controls the certain action of the thermal infrared imager
by sending commands to the thermal infrared imager through the serial
port; communication command is sent in given packet format; if theinterval between characters of the packet sent from the host to the thermal infrared imager is over 10ms, the imaging system may decline to
implement the command.
b)
Packet Protocol
Packet protocol is defined in Figure 4: Packet Protocol.
Channel
Communication between the thermal infrared imager and the host is
achieved via an RS232 asynchronous serial communication interface,
whose serial port setting is as follows:
Baud rate: 19200 bps
Start bits 1 bit
Stop bits: 1 bit
Verification: None
Data bits: 8 bit
The parameters listed above may be different in practice, subject to requirement of the client.
4.2 Software Interface Description for Communication
Protocol
a) The host controls the certain action of the thermal infrared imager
by sending commands to the thermal infrared imager through the serial
port; communication command is sent in given packet format; if theinterval between characters of the packet sent from the host to the thermal infrared imager is over 10ms, the imaging system may decline to
implement the command.
b)
Packet Protocol
Packet protocol is defined in Figure 4: Packet Protocol.
