Product Description

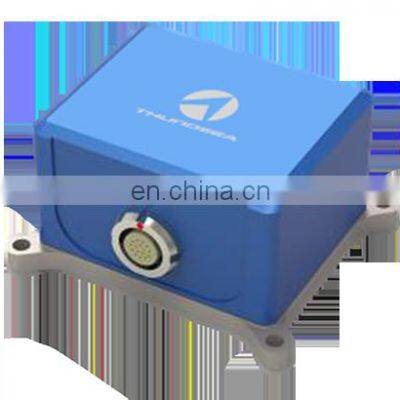

INEM-100 Fiber Optic Gyro Compass System Attitude reference system and motion sensor
Performances | Start-Up Time | 3min |
Attitude Accuracy | 0.05deg, 1σ | |
Heading Accuracy | 3deg, 1σ | |
Input Ranges | Angular Rate | ±400deg/s |
Acceleration | ±20g | |
Work Environment | Work Temperature | -40℃~+70℃ |
Storage Temperature | -55℃~+85℃ | |
Vibration | 0.04g2/hz @ 20~2000hz | |
Shock with normal work / without damage | 30g @ 6ms/100g @ 0.5ms | |
Electrical Characteristics | Work Voltage | 12VDC |
Consumption | ≤2.5W | |
Communication | RS422/RS232 | |
Physical Characteristics | Size | 48x 58x 37 mm |
Weight | ≤110g |
