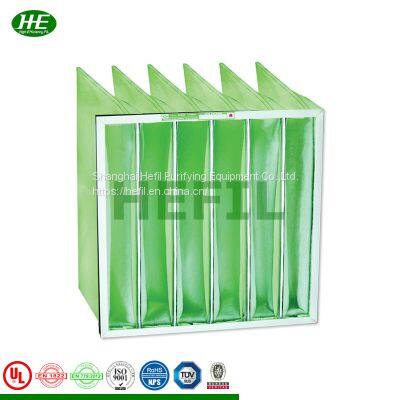

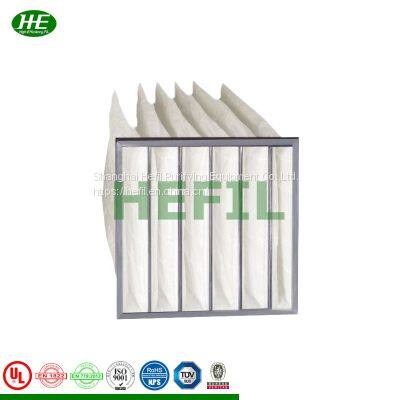

High Quality Non Woven Fabric Pocket Medium Efficiency Filter Pocket Bag Air Filter
- Shanghai
- T/T L/C
- 7 days
You May Like
-
Activated Carbon Filter Cartridge New Type Chemical Air Filter
-
G4 Pleated Panel Air Filter for HVAC System Pre Filter
-
Panel Pre Filter AHU Primary G3/G4 HVAC Air Conditioning Flat Filter
-
Professional Standard Dust Collector Ceiling Filter Media Roll
-
High Quality Green Color Fiberglass Floor Filter Paint Stop Fiberglass Filter Media For Air Purifier
-
High Temperature G2 G3 G4 Flame Retardant Filter Cotton Synthetic Fiber Pre Filter Media
Product Details
| Brand Name | HEFIL | Place of Origin | China | |
| Model Number | HBP | After-sales Service Provided | Engineers available to service machinery overseas | |
| Dimension(L*W*H) | Custom | Condition | New | |
| Efficiency | G4-G6 | Medium Material | Cotton | |
| Filtration Grade | Pre Filter | Construction | Bag Filter |
Product Description

1.Filter efficiency ranges from G3 to M6.
2.In accordance with different diameter and density of polyester fiber, we use non-woven way and produce with rolling stitch which is multiple directional and layer gradient. It has a property of high permeability, low initial resistance and high dust collection rate.
3.The filter frame is made of aluminum alloy, galvanized steel, stainless steel or plastic.
4.Has passed international UL certification and meet EN779:2012.
Material Instructions
1.Media: Polyester fibers.
2.Frame: Galvanized plate, aluminum, stainless steel plate or plastic, the thickness of frame can be 21 mm, 25 mm or 45 mm.
3.Temperature: Maximum 90°C in continuous service
Application
Suitable as pre-filter used to protect high-performance filters, and filtration of fresh air in clean room ventilation system and airport, subway, shopping malls and other places of public services.
Structure Drawings
| Common Specifications | ||||||
| Model | Dimensions | No. of Pockets | Media Area (m2) | Initial Pressure Drop (Pa) @ Air Flow (m3/h) | ||
| W×H×D (mm) | G3 | G4 | M6 | |||
| HBP-24×24×14-6P | 592×592×381 | 6 | 3.3 | 25@2500 40@3600 | 35@2500 60@3600 | 80@2500 |
| HBP-20×24×14-5P | 490×592×381 | 5 | 2.7 | 25@2100 40@3000 | 35@2100 60@3000 | 80@2000 |
| HBP-12×24×14-3P | 287×592×381 | 3 | 1.6 | 25@1250 40@1800 | 35@1250 60@1800 | 80@1250 |
| HBP-24×24×22-6P | 592×592×558 | 6 | 4.6 | 25@3800 40@5400 | 35@3800 60@5400 | 55@2500 85@3600 |
| HBP-20×24×22-5P | 490×592×558 | 5 | 4.1 | 25@3200 40@4500 | 35@3200 60@4500 | 55@2000 85@3000 |
| HBP-12×24×22-3P | 287×592×558 | 3 | 2.3 | 25@1900 40@2700 | 35@1900 60@2700 | 55@1250 85@1800 |
Note: HEFIL makes various of other models' HBP filter not listed in above table. Please consult with us if you need.
The Initial Pressure Drop and Rated Air Flow Performance Curve
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: .
