Home > Products > extruder production line > HIGH ACCURACY LASER DIAMETER MEASUREMENT LASER DIAMETER CONTROL INSTRUMENT LASER DIAMETER GAUGE

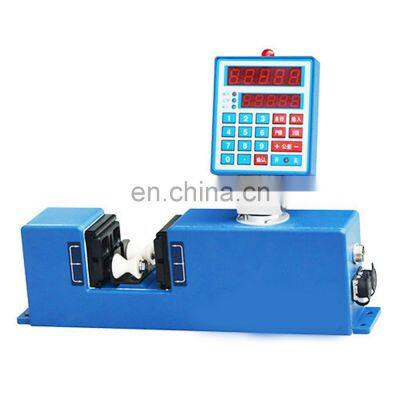

HIGH ACCURACY LASER DIAMETER MEASUREMENT LASER DIAMETER CONTROL INSTRUMENT LASER DIAMETER GAUGE
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
laser diameter gauge for wire and cable laser diameter measuring instrument two axis laser diameter gauge
-
OD controller laser diameter gauge for wire and cable laser diameter measurement diameter measuring instrument
-
ABS PLA PEEK PET 3d Printer Plastic Filament Extrusion Line
-
PLA /ABS /TPU Filament Machine Extruder 3D printing
-
3D Printer Filament Extruder Machine with Spooler
-
Single Screw 3D Printer Filament Extruder Machine
Product Description
Model | Screw Major Diameter(D/mm) | D/d | Center distance(mm) |
GS-50 | 50.5 | 1.54 | 22-72 |
GS-65 | 62.4 | 1.54 | 22-96 |
GS-75 | 71 | 1.51 | 28-144 |
GS-95 | 93 | 1.51 | 44-144 |
Model | Screw Diameter | Lenght | Material | Screw Type |
GS35 | 35.6mm | 150mm | 38CrMoAlA | Twin Screw |
GS50 | 50.5mm | 190mm | 38CrMoAlA | Twin Screw |
GS65 | 62.4mm | 240mm | 38CrMoAlA | Twin Screw |
GS75 | 71mm | 290mm | 38CrMoAlA | Twin Screw |
GS95 | 93mm | 360mm | 38CrMoAlA | Twin Screw |
SPECIFICATIONS FOR LASER DIAMETER CAUGE | ||||
Main performance parameters | Measurement range | 0.1-25mm | ||
Resolution | 0.001mm | |||
Accuracy | +/-0.002mm | |||
Power requirements | AC 180 ~ 260V , 50Hz | |||
Applications | Wire and cable Glass pipes Metal wire and line Extruder combines Drawing machine | |||
Model | Capacity(KG) | Heating Power | Blower | Voltage | Dimensions(mm) | Base Size(mm) | Approx.Net Weight(KG) |
GS-G50KG | 50 | 4.5 | 135 | 380/3φ | 900x600x950 | 160x160xφ73 | 45 |
GS-G75KG | 75 | 5.5 | 210 | 380/3φ | 900x600x1050 | 160x160xφ73 | 56 |
Model | Power(kw) | Output(kg/h) | Rotary cutter diameter * lenght(mm) | Number of sliced strips | Pellet size(mm) |
GS-25 | 0.75 | ≤30 | φ90*50 | ≤3 | φ3*3 |
GS-100 | 1.5/2.2 | ≤100 | φ120*96 | ≤8 | |
GS-300 | 4/5.5 | ≤300 | φ200*100 | ≤14 | |
GS-500 | 5.5/7.5 | ≤500 | φ200*200 | ≤30 | |
GS-900 | 11/15 | ≤900 | φ200*300 | ≤40 | |
GS-1800 | 15/18 | ≤1800 | φ200*400 | ≤80 |
Model | Capacity(KG) | Power(KW) | Dimensions(mm) | Weight(KG) |
GS-H50KG | 50 | 1.5 | 830x830x1120 | 125 |
GS-H100KG | 100 | 3 | 1000x1000x1280 | 180 |
Type | Volume(L) | Effective Volume(L) | Mixing time(min/batch) | Rotate speed(r/min) | Motor(KW) | Capacity(KG/H) |
GS-10A | 10 | 7 | 6-8 | 1500 | 3 | 20 |
GS-25A | 25 | 20 | 6-8 | 1500 | 5.5 | 50 |
GS-50A | 50 | 35 | 6-10 | 750/1500 | 7/11 | 100 |
GS-100A | 100 | 75 | 6-10 | 650/1300 | 14/22 | 200 |
GS-200A | 200 | 150 | 6-10 | 475/950 | 30/42 | 400 |
GS-300A | 300 | 225 | 6-10 | 430/860 | 40/55 | 500 |
GS-500A | 500 | 375 | 8-12 | 330/660 | 55/75 | 800 |
GS-800A | 800 | 520 | 8-12 | 395/790 | 83/110 | 1400 |
Parallel Twin Screw Technical Parameter | ||
Hardness after hardening and tempering | HB260°-290° | |
Depth of nitriding | 0.55-0.85mm | |
Hardness of nitriding | HV 950-1020 | |
Fragility of nitriding | Less than grade2 | |
Depth of bimetallic layer | 2.0-3.0mm | |
Hardness of bimetallic | HRC59°-65° | |
Depth of chrome plating | 0.02-0.15mm | |
Roughness of the surface | Ra 0.4um | |
Linearity of screw and barrel | 0.015mm/m | |
Parrallel twin screw barrel size 50/65/75/95 | ||
