Product Description

Series TY Turbine oil purifier

Item			Unit	TY-M-10	TY-M-20	TY-M-30	TY-M-50	TY-M-100	TY-M-150	TY-M-200
Flow rate			L/min	10	20	30	50	100	150	200
Vacuum degree			MPa	-0.06～–0.095
Working pressure			MPa	≤ 0.4
Temperature degree				20 ~80
Power supply				380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise			dB(A)	≤65~80
Working time			H	≥ 4000
Continuous working time			H	150
Electric heating degree			kW	12	15	18	24	45	60	72
Total electric power			kW	14	17	20	27	48	66	81
Outlet(inlet)caliber			mm	Φ25	Φ25	Φ25	Φ32	Φ42	Φ50	Φ50
Weight			kg	400	450	500	600	800	1000	1100
Size	L	mm	1500	1550	1600	1650	1700	1750	1900
		W	mm	800	850	900	950	1000	1200	1300
		H	mm	1600	1650	1700	1750	1800	1800	2000
Index after filtering	Moisture content	PPM	≤50
		Gas content	%	0.1
		Demulsification value	min	≤15
		Degree of cleanliness	NAS 1638	4
		Impurity size	μm	≤1(Customerizable)

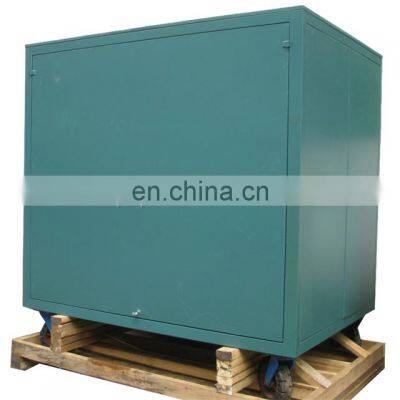

TY-M is a mobile turbine oil filter used outdoors, specially equipped with a trailer, which can be transported over long distances; and is equipped with a closed, dust-proof and rain-proof. It is suitable for the online processing of turbine oil for steam turbines, gas turbines, and water turbines in the electric power, chemical, paper, metallurgical and other industries to ensure unit adjustment and normal operation of the lubrication system. It can also purify low-viscosity lubricating oil and cooling oil.

1. Equipped with trailer and enclosed, it has the characteristics of convenient movement and convenient outdoor use.
2. This machine integrates the advantages of gravity method, gasification method, coalescence separation method, vacuum separation, mechanical filtration. It adopts vacuum drying, automatic demulsification and other technologies, which can not only separate a large amount of water in the oil, but also can remove trace amounts of water in the oil, and has high dehydration and demulsification efficiency, and makes the turbid and emulsified oil clear and transparent.
3. This equipment is additionally equipped with a vacuum analysis and evaporation system, which vacuum dehydrates the micro water in the oil to ensure the moisture index of the oil, does not change the physical and chemical properties of the oil, and prolongs the service life of the oil.
4. The machine has low noise and meets environmental protection requirements.
5. The sophisticated multi-stage filter element can effectively remove all kinds of mechanical impurities, encryption stepwise, large dirt holding capacity and long service life.
6. Advanced infrared liquid level automatic control system, sound and light automatic alarm system and pressure protection device to ensure the safe and stable operation of the equipment.
7. Turbine oil and low-viscosity lubricating oil can be processed online, unattended.

Details Image

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
