Impurity Filtration and Water Removal Roadworthy Turbine Oil Separator
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Power Station Turbine Oil Conditioner Movable Lube Oil Purifier TY Hydraulic Oil Filter Machine With Trailer
-
TY Series Turbine Oil Purification Machine
-
TYR Series Waste Oil Recycling Machine Sand Filter System Red Diesel Oil Decolor Machine
-
Power Industry Installation Vacuum Used Light Lube Oil Purify System
-
Lube Oil Purifier Industrial Hydraulic Oil Recycling Machine TY Turbine Oil Purification Unit
-
Black Industrial Lubricating Oil Filtration Machine Hydraulic Oil Sand Decolor System
Product Description
Product Description
Mobile Turbine Oil Separator Machine
(TY-M Series)
TY-M turbine oil filtration Machine is applied for turbine oil filtration offline or on-line in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing moisture, gases, impurities, soap, gelatin and metal particulates in emulsified turbine oil and lubricating oils as well as turbine oil used in other machinery and electric power equipment, and improve the oil quality to ensure a normal work of the generator sets adjustment and lubrication system. TY-M series are equipped with roadworthy trailer and weatherproof enclosure.
1.It adopts the coalescence and separation technique and 3D-Evaporation technical and thin film evaporation technique, and it has strong ability to break emulsion and remove water from the oil.
2.Optimized electric heating system with automatic constant temperature controller ensures the oil temperature to be even and stable.
3.Precise multi-stage filtration system helps remove different kinds of impurities with high quality filter element of better ability of containing pollutants and long service life
4.Advanced infrared oil level control system and pressure protection device make operation simple and safe.
5.It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.
6.Air cooling system helps cool down air and gases from the flash distillation column so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling. 7.The machine can also be installed with digital flow meter and timer to calculate and record the volume of output oil and working hours (optional).
8.Aluminum electric control cabinet has the merits of heat conducting and anti-explosion
9. Adopts interlocked protective system, which connected oil pump, heater, and oil level sensor, avoiding blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
10. High quality and low noise oil pump
11. Hi-automatization operation, convenience, reliable, and safety

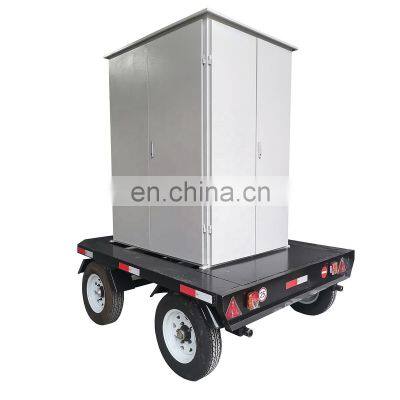

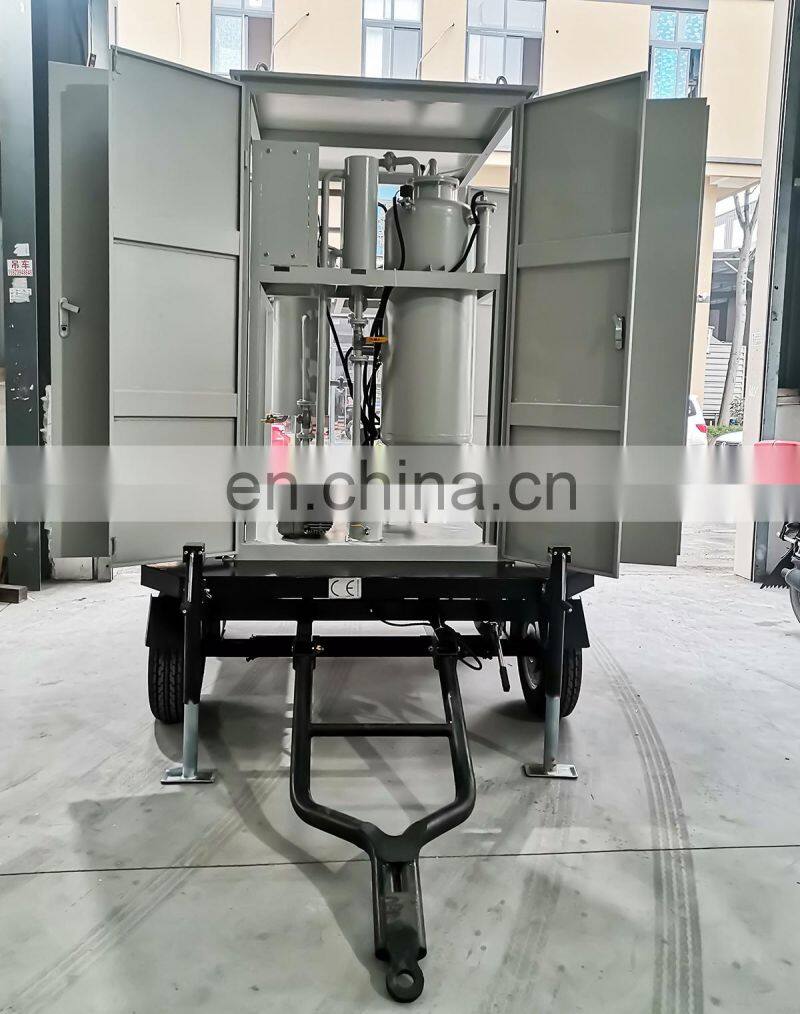

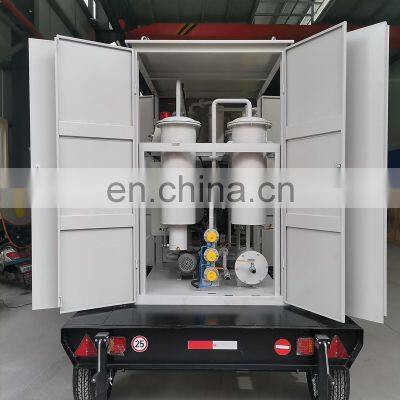

12. Equipped with roadworthy trailer and weatherproof metal enclosure.
Technical Parameters
Parameter | Unit | TY-M-10 | TY-M-20 | TY-M-30 | TY-M-50 | TY-M-100 | TY-M-200 | TY-M-300 | ||||||
Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 200 | 300 | ||||||
Vacuum degree | Mpa | -0.06～-0.095 | ||||||||||||
Working pressure | Mpa | ≤0.5 | ||||||||||||
Working temperature | ℃ | ≤40~60 (no more than 55℃ for purifying turbine oil.) | ||||||||||||
Power Supply | V/Hz | 380/50/3P (Customized) | ||||||||||||
Heating power | kW | 15 | 18 | 24 | 30 | 60 | 81 | 90 | ||||||
Total power | kW | 17 | 20 | 26 | 32 | 64 | 86 | 100 | ||||||
Inlet (outlet) diameter | mm | Φ32 | Φ32 | Φ32 | Φ42 | Φ42 | Φ60 | Φ76 | ||||||
Weight | kg | 400 | 480 | 600 | 700 | 800 | 1100 | 1350 | ||||||
Size | L, mm | 1300 | 1300 | 1400 | 1400 | 1500 | 1850 | 2100 | ||||||
W, mm | 1000 | 1050 | 1100 | 1150 | 1100 | 1300 | 1400 | |||||||
H, mm | 1600 | 1700 | 1800 | 1850 | 1850 | 1900 | 2000 | |||||||
Item | Guarantee oil index after treated |
Moisture content | ≤50 PPM |
Demulsification value | New oil≤15min,running oil≤30min |
Impurity size | ≤1 micron |
Gas content | ≤0.1% |
Clean degree | ≤4 Grade (NAS1638) |

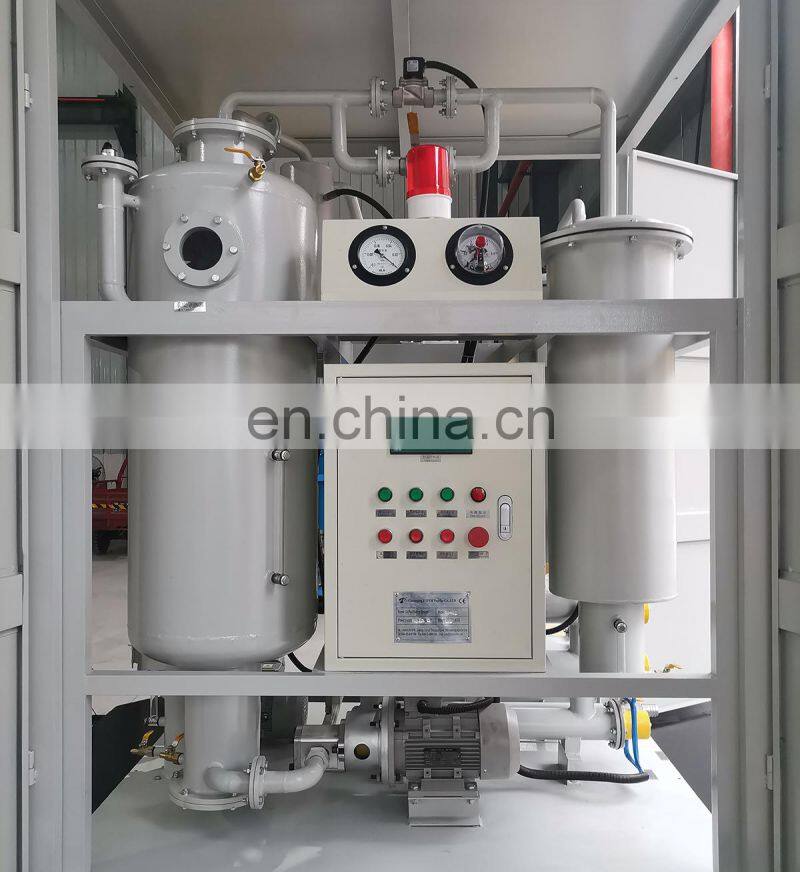

Detailed Images

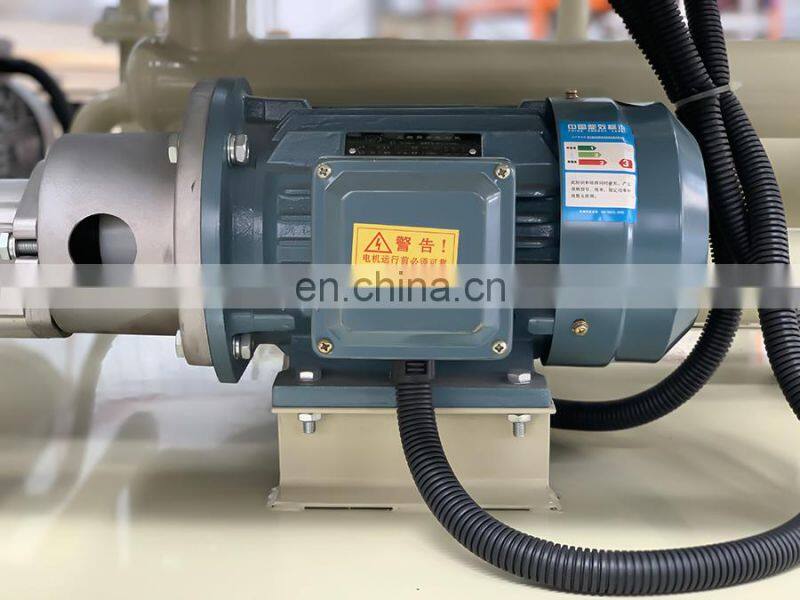

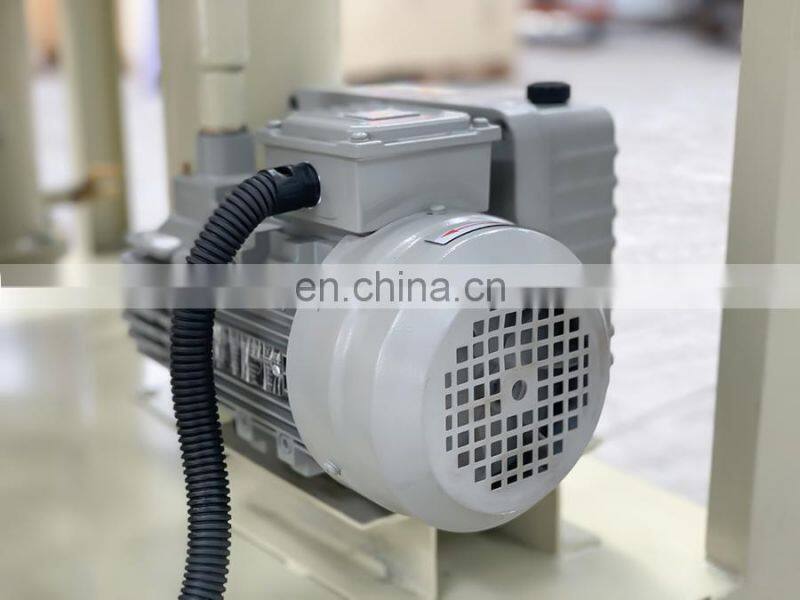

Vacuum pump Motor

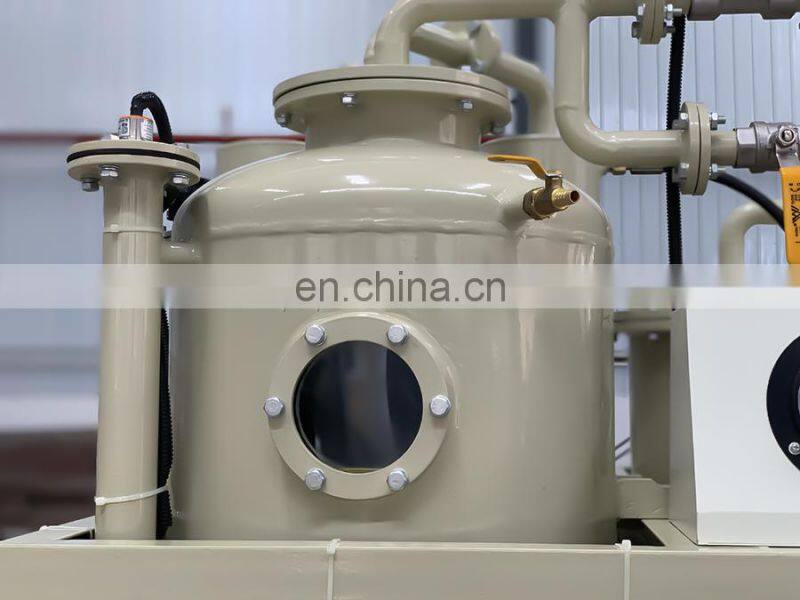

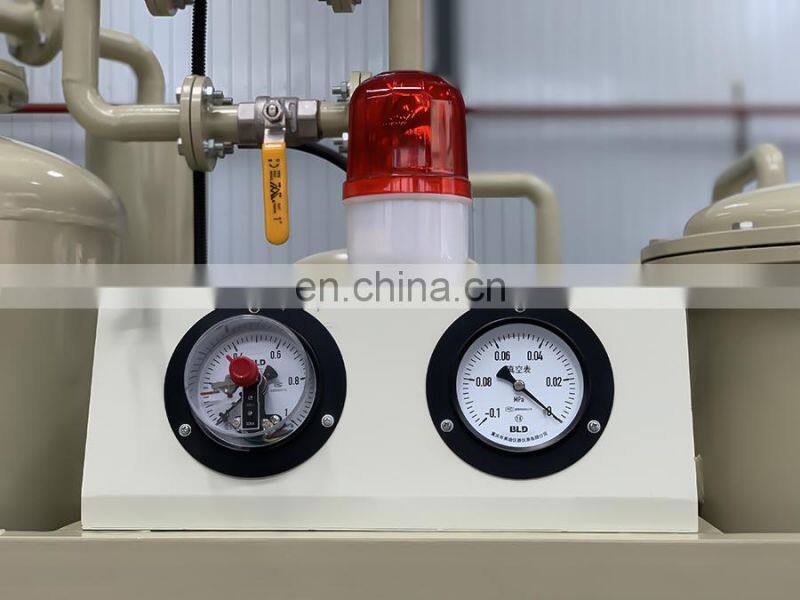

Alarm indicator; Vacuum gauge; Pressure gauge Observation glass on vacuum tank
Recommend Products
Packing&Shipping
Packing: standard export wooden case per set.
Delivery method: the oil purifier machines are usually delivered by sea, but other method is available if necessary.
Delivery method: the oil purifier machines are usually delivered by sea, but other method is available if necessary.
