Product Description

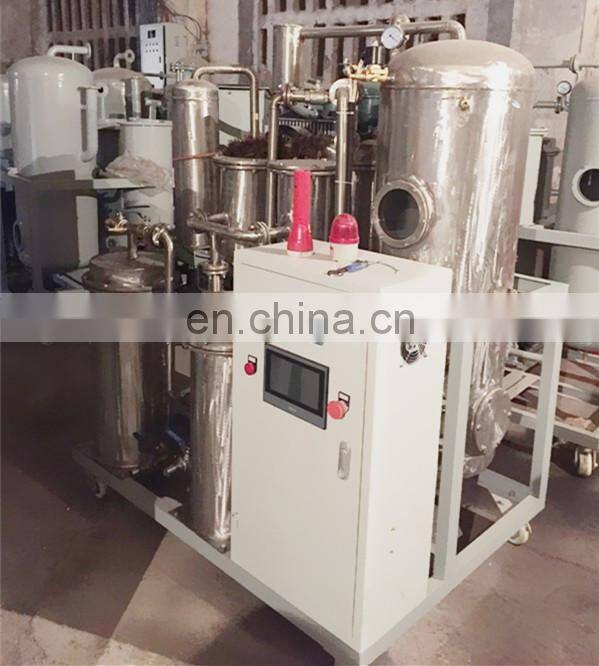

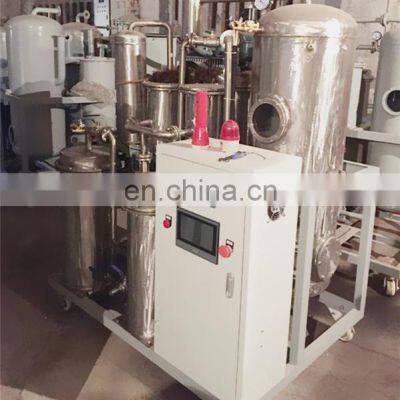

Automatic Control Pyrolysis oil Purification,Used Motor Oil Cleaning Machine,Tyre Oil Filtration
(TYA Series)
Application
TYA series oil filter machine is widely used in metallurgy, machinery, oil field, chemistry, mine, electric power generation plant, transportation and manufacturing enterprises for hydraulic oil, gear oil, engine oil, compression oil, freezer oil, heat treatment oil, compressor oil, refrigeration oil and other industrial oils.
It can remove water, gas and eliminate mechanical impurities, light acid and light hydrocarbon from oil, and improve oil quality, resume its lubricating property and ensure normal operation of the equipment.
Structure and feature
1.Degassing, dehydration and filtering of oil with variable oil through put in one or several passes
2.Adopt back flushing system, which can clear impurities automatically.
3.Double primary filter structure, large capacity for holding particles, multi-stage filtration system to ensure high filtration precision
4. We uses stainless steel filter element which has a good function in anti-corrosive. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
6. The unique degas and dewater system: Using the 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gas from the oil quickly by the Multi-level water-oil separation technology.

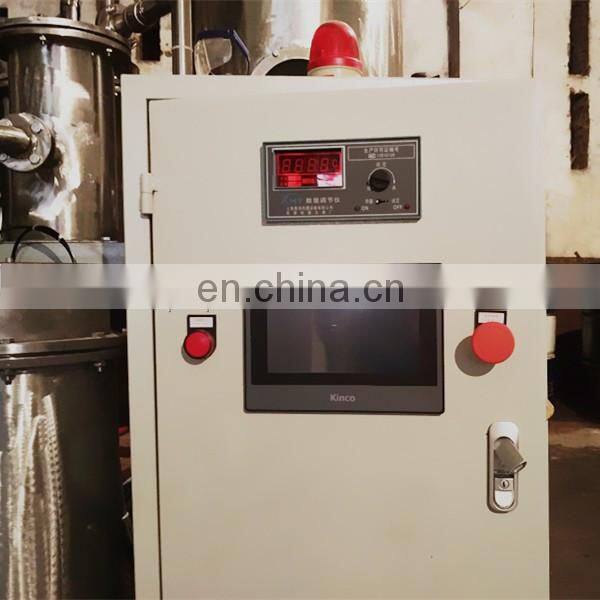

7.Adopts interlocked protective system, which connected oil pump, heater, and oil level sensor, avoiding blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8.High quality and low noise oil pump
9. Hi-automatization operation, convenience, reliable, and safety
Technical Parameters:
Parameters | Unit | TYA-10 | TYA -20 | TYA -30 | TYA -50 | TYA -100 | TYA-150 | TYA-200 | TYA-300 |
Flow rate | L/h | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Vacuum degree | Mpa | -0.06 ~- 0.095 | |||||||
Working pressure | Mpa | ≤0.4 | |||||||
Temperature degree | °C | 0~100 | |||||||
Power supply |
| 3Phase, 380V, 50Hz(or as needed) | |||||||
Working noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
Electric heating power | kW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 |
Total electric power | kW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 |
Inlet (outlet) caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 |
Size | mm | 1500x1000 x 1600 | 1500x1050 x 1600 | 1500x1050 x1650 | 1600x1150 x1700 | 1750x1150 x1750 | 1900x1600 x1950 | 1950x1600 x1950 | 2100x1600 x2000 |
Weight | Kg | 350 | 380 | 400 | 450 | 550 | 650 | 700 | 750 |
Guarantee Value
Item | After treatment |
Moisture content | ≤50 PPM |
Demulsification value | New oil≤15min,running oil≤30min |
Impurity size | ≤1 micron |
Gas content | ≤0.1% |

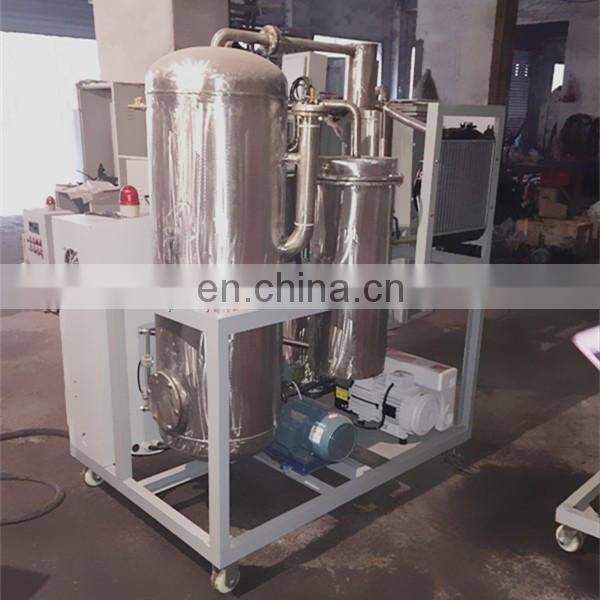

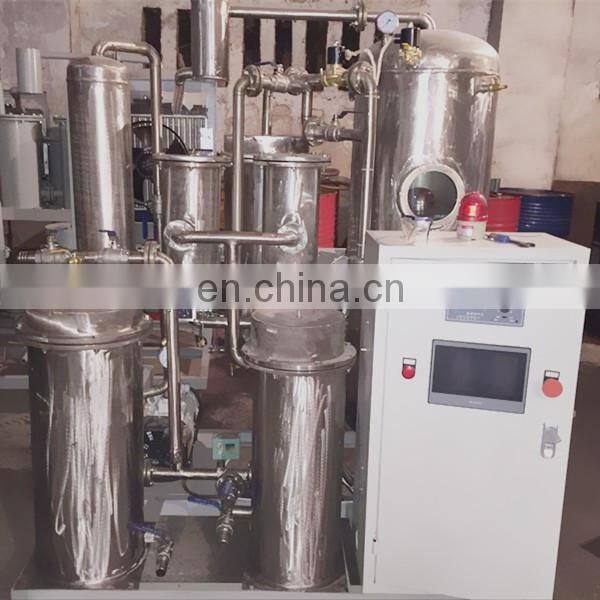

Stainless steel type

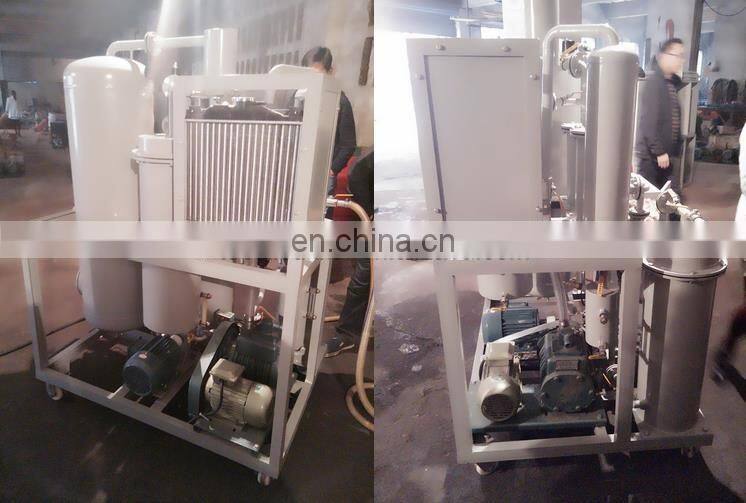

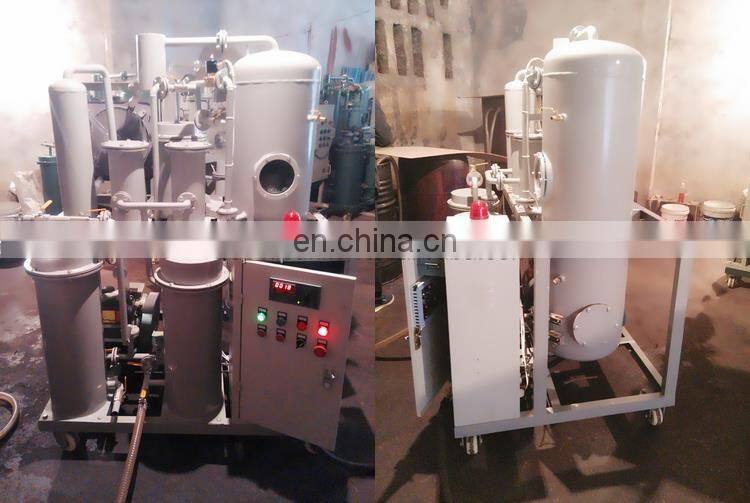

Carbon steel type

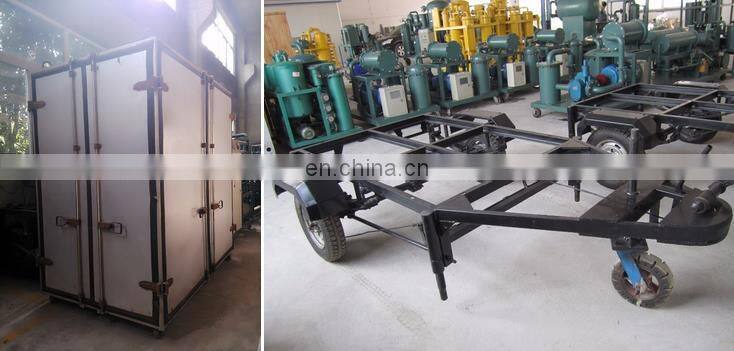

Can be equipped with roadworthy trailler of single or double axle and weatherproof enclosure.

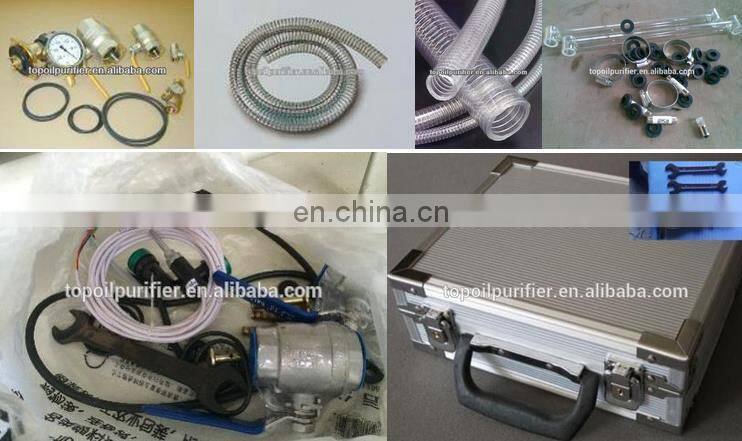

Some of the spare parts (Provide necessary parts for free.)
About us:
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various testers for petrochemical products and power equipment.
TOP Oil Purifiers provide you with reliable insulting oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, transformer oil filtering machine, fuel oil restoration, steam-turbine oil reconditioner,dielectric fluid regeneration system, circuit-breaker oil recovering system, compressor oil recovering machine, gear oil renewal machine, coolant oil treatment, quenching oil reclaiming machine, oil and water separator, steel-rolling oil regeneration equipment, waste automobile oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers,transformer substation electrical testing equipment and circuit detecting equipment. Main products are trace water content testers, fully auto surface/interfacial tension testers, open/closed cup flash point testers, kinematic viscosity testers, oil acidity testers, air release value testers, multifunctional degassing oscillation instruments, dielectric loss testers, insulation oil dielectric strength testers, transformer characteristics comprehensive testers, relay protection testers, cable testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Production and onstock

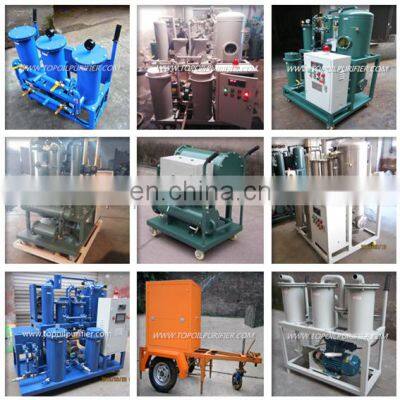

Oil purifiers:
Testers:
Our customers

You can contact me online or send offline message.
Also you can directly contact me at the following address:

[ Key words: gear lube oil filter, hydraulic lube oil filter, lube oil cleaning system, lube oil conditioner, lubricant oil purifier, lubricating oil purifier, lube oil filter, hydraulic oil cleaning machine, hydraulic oil purifier, hydraulic oil filter, oil purification, oil purifiers, lubrication oil recycling machine, used lubricants oil recycling plant, lubricating oil reclamation, hydraulic oil processing unit, filter oil, oil filter, used cooking oil, hydraulic oil filter, oil water separator, hydraulic oil reclaiming, oil recovery, oil filtration machine, engine oil recycling plant, waste motor oil recycling machine, used motor oil cleaning machine, hydraulic oil flushing machine, hydraulic oil water separator, polishing machine, compressor oil filter, waste coolant oil treatment, crude oil demulsifier, crude oil refinery, vacuum filtration apparatus, lubrication oil reclaimation machine, oil lubricant recycle machine, oil lubricant recycle machine, lube oil recondition, oil reconditioned, used oil recondition, lube oil refinery, lube oil purification, used lubricant oil recovery machine, lubrication oil recycle, lubricant oil flushing machine, used oil flushing machine, used motor oil recycling plant, used oil refinery equipment, used oil refinery equipment, portable lube oil purifier, used engine oil filtration plant, engine oil treatment, gasoline regeneration system, gasoline filtration system, oil filtration system, Multi-function Lube Purifier, portable hydraulic oil purifier, engine oil purifier, waste used oil regeneration plant, used motor oil regeneration plant, coolant oil separator machine, engine oil recovery plant, lube oil filter machinery, used engine oil purification machine, coolant oil treatment plant, vacuum compressor oil recycling machine, dewatering compressor oil filtration, coolant recovery machine, lubricant oil reclaimer, mobile vacuum oil purification systems, used motor oil cleaning machine,small engine oil purifier,used hydraulic oil filtration machine,engine oil cleaning machine,treatment machine of used car motor oil filtering equipment ...]
