Product Description

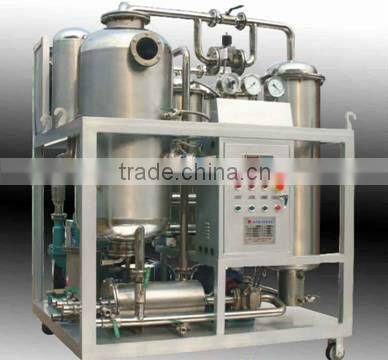

COP Series used cooking oil purifier, vegetable oil filter machine before biodiesel production, soap making ect.
Application:
TYA series oil filter machine is widely used in metallurgy, machinery, oil field, chemistry, mine, electric power generation plant, transportation and manufacturing enterprises for hydraulic oil, gear oil, engine oil, compression oil, freezer oil, heat treatment oil, compressor oil, refrigeration oil and other industrial oils. It can remove water, gas and eliminate mechanical impurities, light acid and light hydrocarbon from oil, and improve oil quality, resume its lubricating property and ensure normal operation of the equipment.
Features:
1.Super ability in breaking emulsion, dehydration and degassing process. Adopting big-cubage, reinforced three-dimension flash distillation column, thin film evaporation technique and large area multi-level separation technique so as to remove water, gas and light hydrocarbon material efficiently and quickly.
2.Adopting high-quality filter element and sealing material with corrosion proof, high temperature resistance and excellent mechanical strength, it is suitable even for purification process of high-viscosity oil under rather high temperature conditions and in this way expanding its application scope.
3.Fine and precision multi-stage filtration system can remove mechanical particulates thoroughly and effectively.
4.With air-cooling and condensation system, it can cool the air in the vacuum system efficiently and quickly, which avoids inconvenience of water-cooling.
5.Advanced high pressure protection device and infrared oil level control system for easy operation.
6.Perfect automatic and manual oil heating temperature controller, automatic cooling and separation device, simple, safe and reliable.
7.Aluminum electrical control cabinet, with high efficiency for heat transfer and anti-explosion.
8.The equipment can also be installed with digital flow meter and timer for auto calculating and recording oil volume and working time. (it’s optional according to user’s requirement)
Technical Parameters:
Parameters | Unit | TYA-10 | TYA -20 | TYA -30 | TYA -50 | TYA -100 | TYA -150 | TYA -200 | TYA -300 |
Flow rate | L/h | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Vacuum degree | Mpa | -0.06 ~- 0.095 | |||||||
Working pressure | Mpa | ≤0.4 | |||||||
Temperature degree | °C | 0~100 | |||||||
Power supply |
| 3Phase, 380V, 50Hz(or as needed) | |||||||
Working noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
Electric heating power | kW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 |
Total electric power | kW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 |
Inlet (outlet) caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 |
Size | mm | 1500x1000x 1600 | 1500x1050x 1600 | 1500x1050x1650 | 1600x1150x1700 | 1750x1150x1750 | 1900x1600x1950 | 1950x1600x1950 | 2100x1600x2000 |
Weight | Kg | 350 | 380 | 400 | 450 | 550 | 650 | 700 | 750 |
Guarantee Value
Item | Guarantee indexes |
Moisture content | ≤50 PPM |
Demulsification value | New oil≤15min,running oil≤30min |
Impurity size | ≤1 micron |
Gas content | ≤0.1% |
Why to choose TOP and what TOP can bring?
Excellent design, advanced tech, reliable equipment, good performance, favorable and reasonable price, prompt delivery, considerate service!
Key words: oil purification, oil filtration, oil processing, oil separation, oil recycling, oil filter, oil purifier, oil treatment, oil regeneration, oil restoration, oil reclamation, oil filtering, waste oil disposal, oil reclaiming, waste oil treatment, used oil recycling, oil recovering
To meet special requirement, we have designed stainless version which is corrsion proof.

About us:

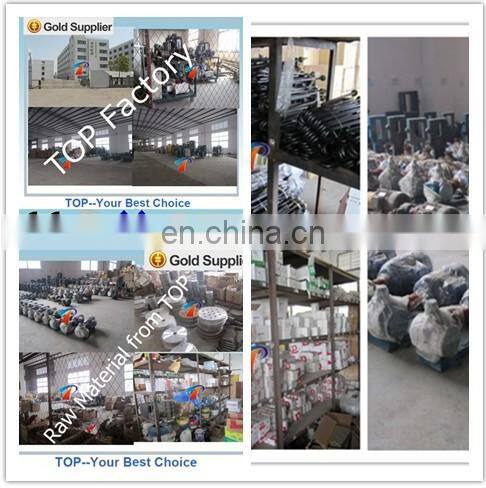

Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation, and introduces advanced technology.
TOP's pruducts are widely used in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They help a lot with reducing energy consumption and also environmental pollution.
Top will as always make great effort to and also be proud of supplying you the best oil purifying equipments.
You are much welcome to visit our website:
TOP supplies products as follows:

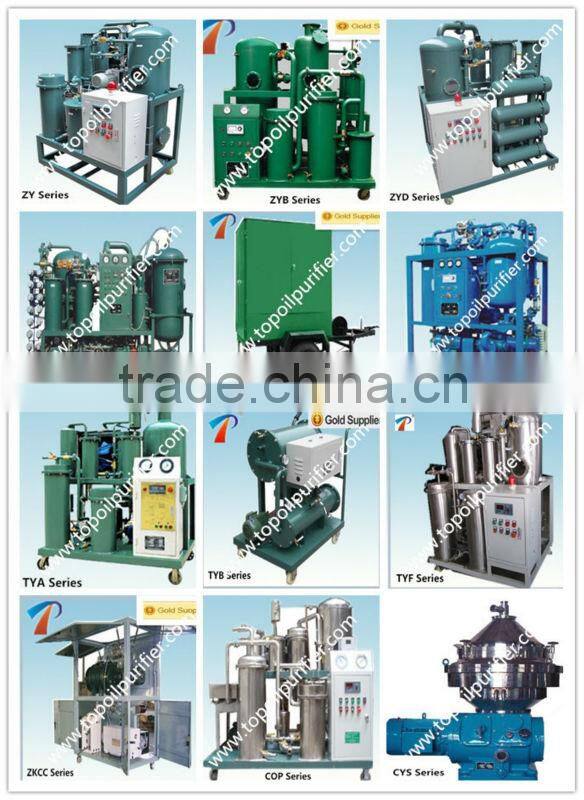

Our oil filtration machines:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine
EOR series waste engine oil recycling system

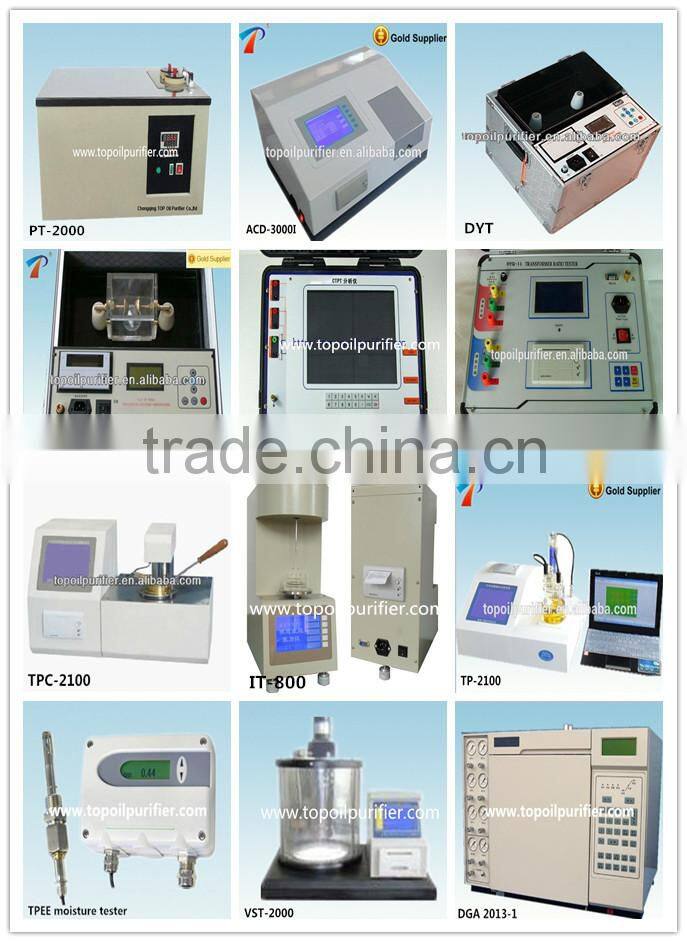

Our testers/ analyzers:
1.Transformer oil breakdown voltage tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer water content tester model TP-6A / model TP-2100
4. Moisture content tester(TPEE)
5. Fully automatic interfacial tension analyzer model IT-800
6. Gas-chromatography transformer oil gas analyzer model DGA2013-1
7. Consolidation point determinator model PT-2000
8. Kinematic viscosity tester model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. Transformer tester (CT/PT tester) model TPVA-404
12. Transformer turn ratio tester model HYG-II
13. Total base number analyzer(TBN tester) TBN-2030
For more information, please do no hesistate to contact us.
