Transformer Oil Breakdown Voltage BDV Tester Dielectric Strength Test Machine Of Insulating Oil 100Kv

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

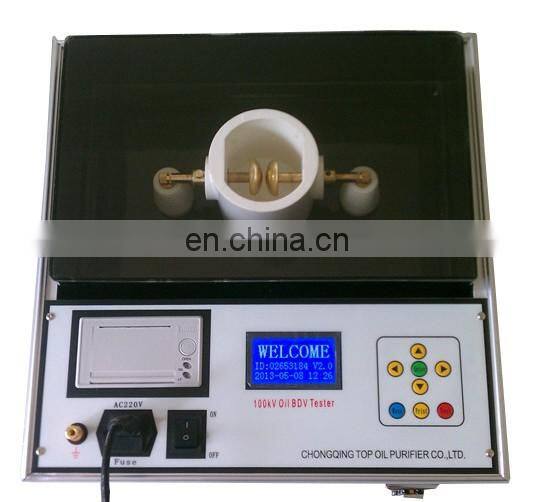

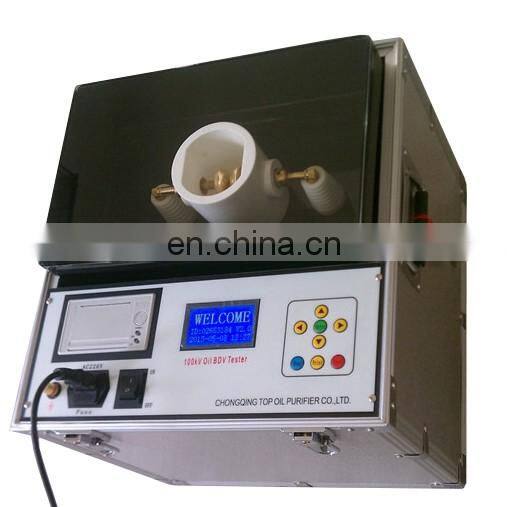

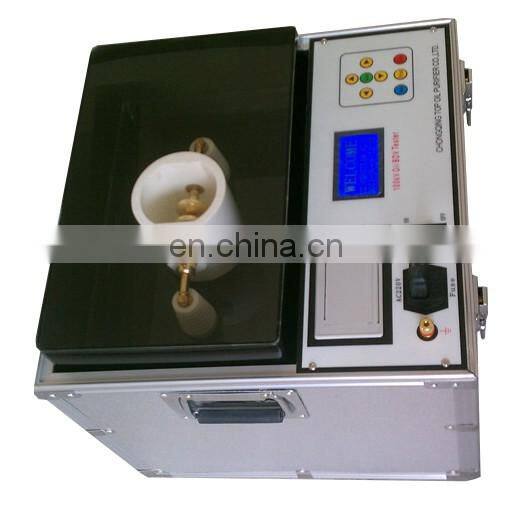

Transformer Oil Breakdown Voltage BDV Tester

Power supply	AC220V ± 10%, 50 HZ
Output voltage	60 kV, 80 kV, 100 kV (100 kV should be specially designed)
Capacity	1.2 kVA (for 60kV), 1.6 kVA (for 80 kV), 2.0 kVA (for 100 kV)
Pressure increase speed	About 2 kV/S
Voltage inspection accuracy	3%
Dielectric strength sensitivity	<2KV
Wave from distortion	< 3%
Breakdown response time	<10ms
Polar distance	2.5mm
Working environment: Temperature	0 to 40 º C, humidity: <85% (Relative Humidity)
Storage environment: Temperature	-20 to 60 º C, humidity: <75% (Relative Humidity)
Working Altitude	< 1500 meters. (If over 1500m, it can be customized)
Dimensions and weight	38 x 37 x 38 cm. Net: 40 kg (Approximately)

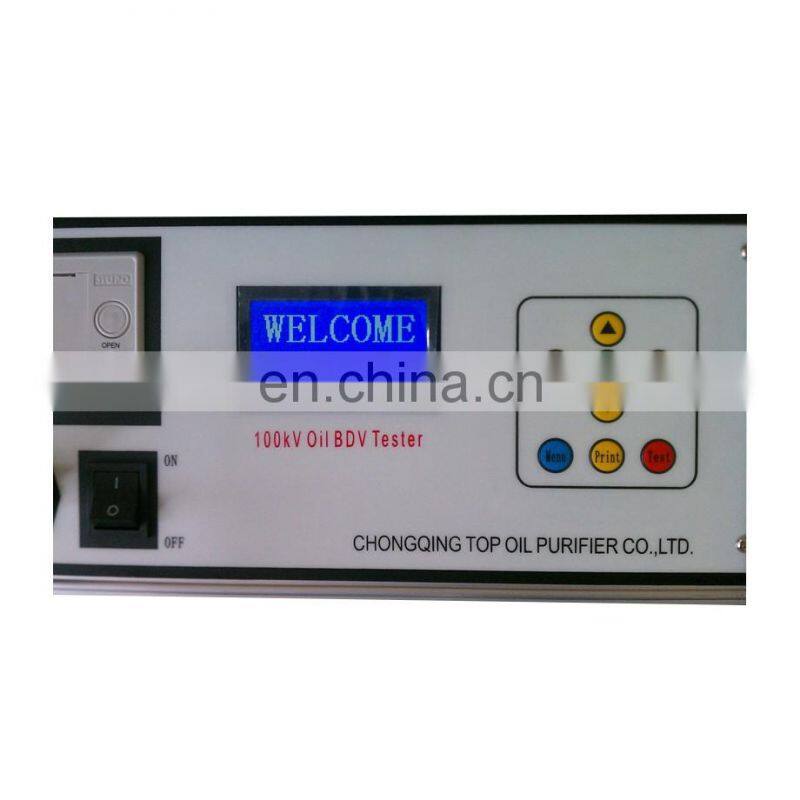

1. Simply operate: Automatically (can be finished just press on key)
2. Menu controlled. Input data can clear
3. Can store 99 groups' oil testing data which is convenient to reading and print. The testing data can keep 100 years under the condition of power off.
4. System time can go on running under power off; (The system time just for reference can not be the standard of timing)
5. Can upgrade software through RS232
6. High capacity of anti-jamming and high precision of testing.
7. Small volume, light which operated in the open air very conveniently.

Application

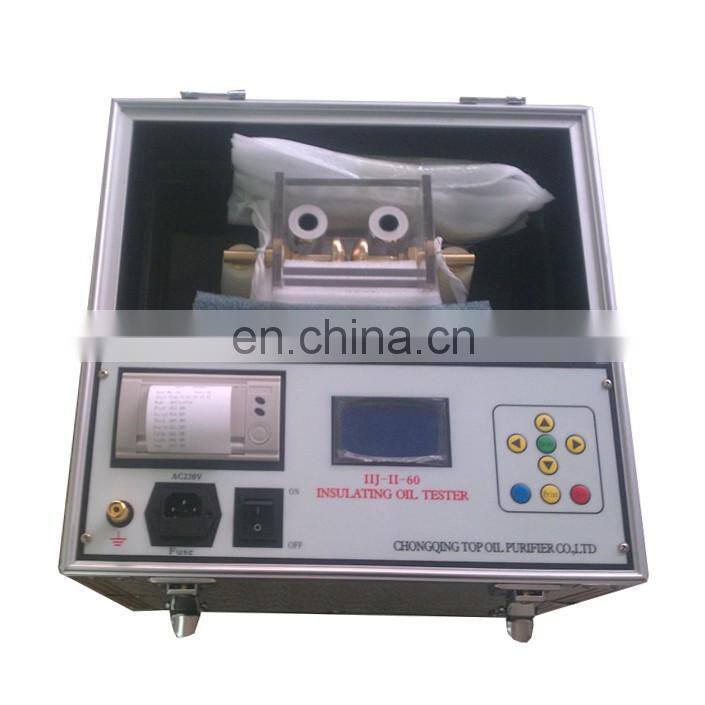

IIJ-II series fully automatic oil tester is apply to test the insulating oil's dielectric strength, which is designed as per the requirement of IEC156 Testing Method of Insulation Oil Medium Strength, which via proper programming, has got functions of auto boosting, step down, stirring, display and print out. After breakdown of oil medium, HV break off will operate within 10 seconds to enable an auto isolation of control system partly; This effectively safeguards the personnel security and equipment safety.

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
