ASTM D5293 Engine Oil Apparent Viscosity Tester / CCS Cold Cranking Simulator

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

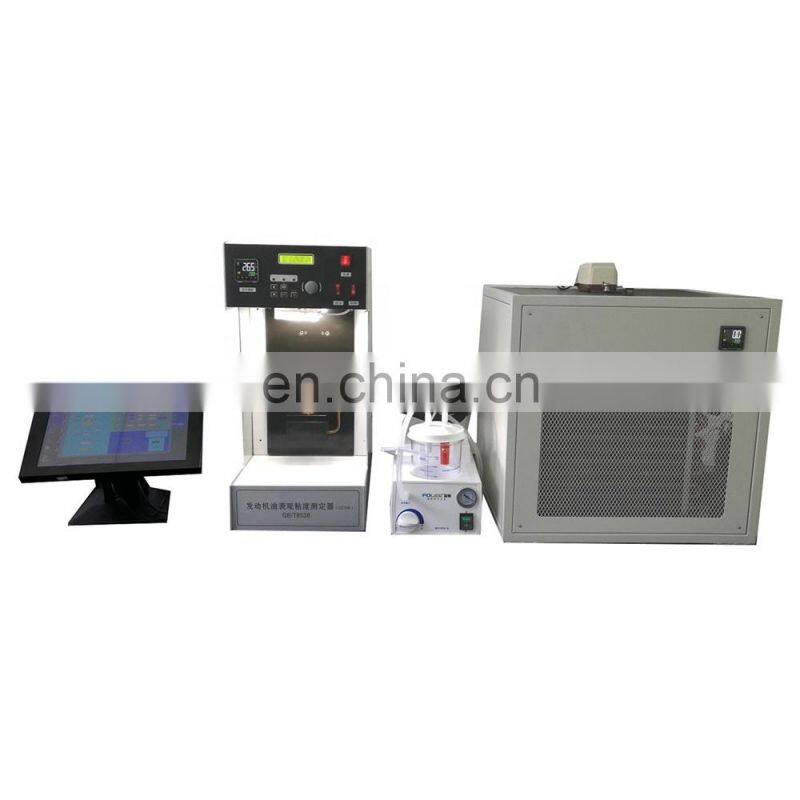

CCS Cold Cranking Simulator Engine Oil Apparent Viscosity Tester

(Model: CCS-2602)

Application:

This CCS-2602 CCS Engine Oil Apparent Viscosity Tester complies with technical specifications such as GB/T6538-2010, ASTM D2602, ASTM D5293, to test the low temperature dynamic viscosity index of engine oil. The instrument can determine the apparent viscosity of the oil at temperatures -35 ° C ~ -5 ° C with temperature interval of 5 ° C. It has accurate measurement, good repeatability, stable performance and simple operation.

It is suitable for measuring the apparent viscosity of engine oil under shear stress of about 1200~27000 mPa.s; shear rate of 105~104 S-1, and the apparent viscosity of -5~-35 °C. Control equipment, beautiful human-computer interaction interface, so that users can use the instrument for analysis quickly and easily. At the same time, the latest intelligent control system is adopted to improve the stability and reliability of the instrument, make the temperature control more accurate and accurate, and the calculation accuracy is higher, which fills the blank of the domestic petroleum analytical instrument industry.

Features

1.The imported Omron temperature controller, light touch button operation, convenient and fast; 2.Automatically detect rotation speed and fine-tune the knob to control current and reduce manual operation error; 3.Imported compressor cascade refrigeration, large cooling capacity; 4.Imported motor drive, high precision; 5.Can store and print experimental results; 6.Automatic calculation of results after calibration with standard oil 7.Adopting embedded operating system, work is stable and reliable; 8.Improved rotor, low torque test state, high repeatability; 9.Automatically stop at the end of the test and heat up to facilitate rapid cleaning; 10.The instrument automatically recommends the cooling temperature; 11.The rotary encoder detects the rotation speed; 12.Edit and store the parameter values of all standard oils; 13.Store 1000 sets of historical data for easy query; fault self-test.

Tehcnical Parameters

Temperature range: rooml temperature ~ -70 ° C (external circulation alcohol bath temperature range)
Cold bath temperature control accuracy: ±0.1 °C
Stator temperature control accuracy: ±0.05 °C
Viscosity measurement range: 1200 ~ 27000 mPa.s;
Use environment: 10 ° C ~ 40 ° C
Environmental humidity: < 85%
Power: < 2.5KW
Power source: AC 220V ± 20%
Detection temperature point: -35, -30, -25, -20, -15, -10, -5 degrees Celsius

Structure & Principle

Structure

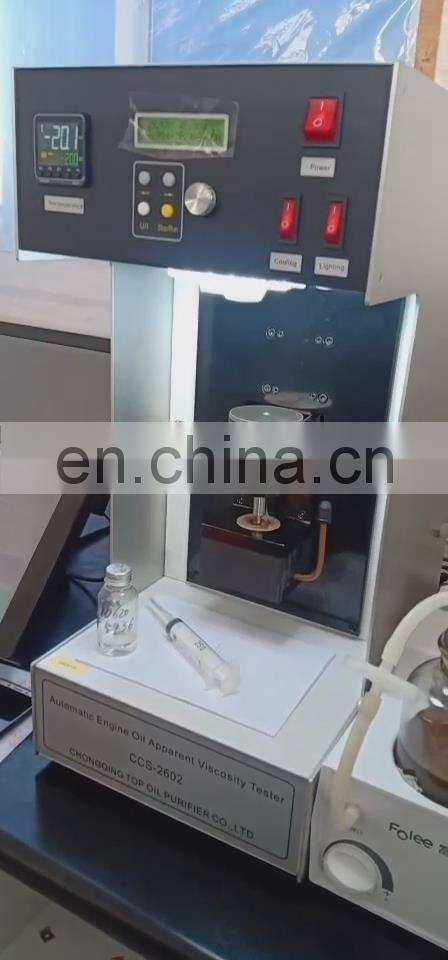

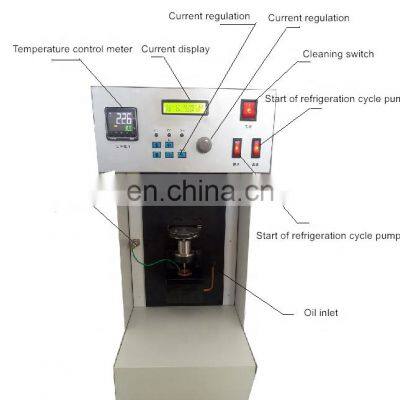

This CCS-2602 Engine Oil Apparent Viscosity Tester is composed of a bath temperature automatic control system, a stator measuring unit, a refrigeration system, a motor speed measuring system, and a host computer system. It adopts multi-thread operation control of the whole machine to realize the operation, control, calculation and display automation of the instrument, which greatly reduces the labor intensity of the test personnel.

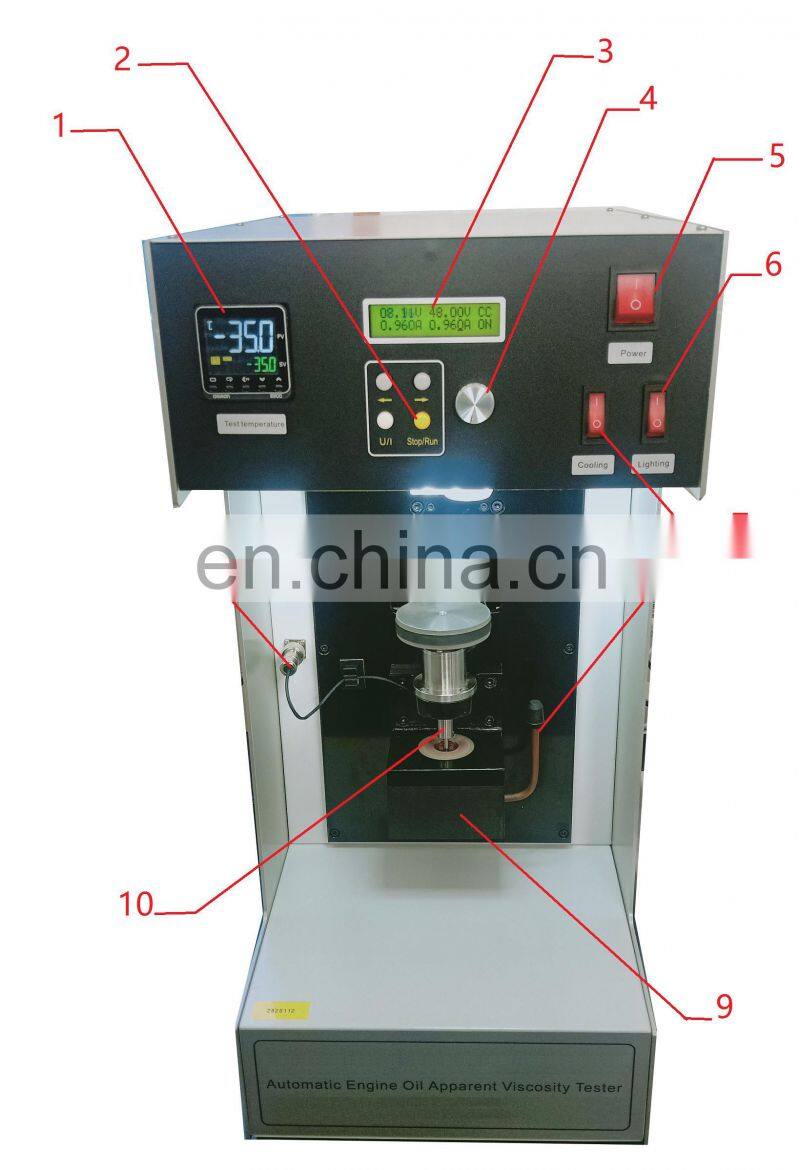

1. Temperature control meter

2. Motor start and stop buttons

3. Voltage and current display

4. Adjustment knobs

5. power switch

6. Lighting switch

7. Refrigeration circulation pump switch

8. Oil filling hole

9. Sample cell

10. Rotor

11. Sample cell temperature sensor

Principle

It adopts the principle of fuzzy temperature control,Freon compressor to realize the temperature control of the refrigeration equipment, can accurately and precisely control the cooling cold bath and stator temperature, and has high control precision. At the same time, the system can set temperature according to user’s needs in accordance with the nonlinear curve. The system automatically turns on the refrigeration equipment only when refrigeration is needed. The temperature measurement system uses high-precision thermal resistance to accurately measure temperature, and accuracy is high. In order to facilitate human-computer interaction, the system uses a personal computer to communicate and control the device. The user can set the instrument parameters through the host computer. The host computer is developed with Visual Basic. The system distinguishes various functions of the system, and makes a detailed scheme design for each function, so that users can determine quickly, conveniently and quickly. It has real-time monitoring working parameters system, and stores the experimental results. It has a query function, which can conveniently query the historical data of various oil products. The instrument is in accordance with the GB/T6538 standard, so that the user can use the instrument for apparent viscosity measurement. The self-test system of the instrument can quickly and easily calibrate all parts of the system. During the experiment, the user can first calibrate the instrument with standard oil. After the calibration is finished, the relationship between viscosity and motor speed is drawn. The apparent viscosity of the oil to be tested is obtained by curve fitting.

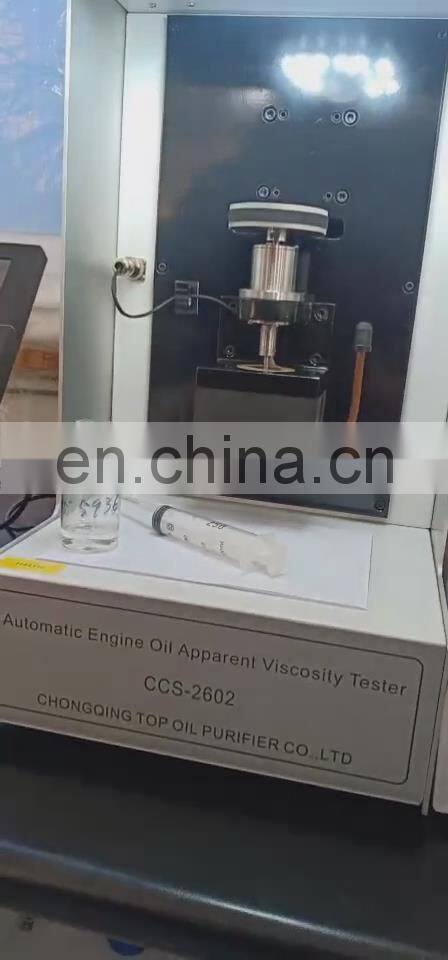

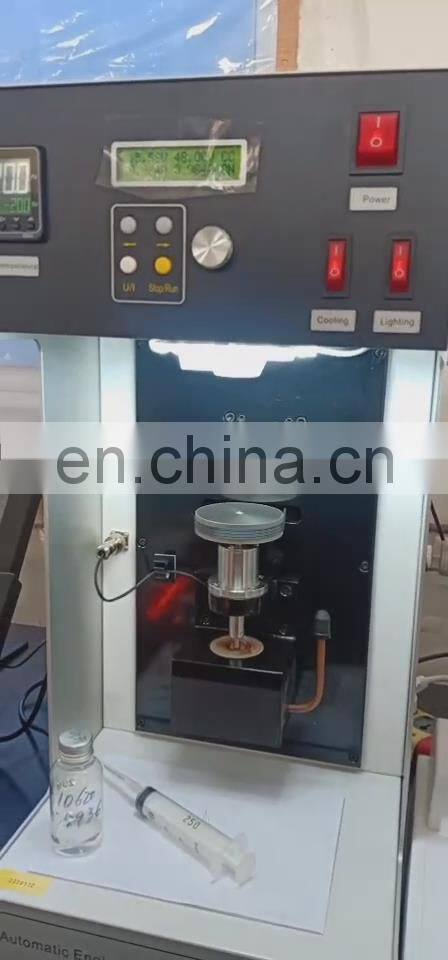

Detailed Images

Related Equipment

We also have many other oil testers, and we manufacture oil purifier machines too. If you need any other related equipment, please tell me to quote them together. You can send me inquiry here or contact me at +8613983286435 (Mob/Whats App) or sales10( at ). I will response the soonest within 24 hours.

Packing&Shipping

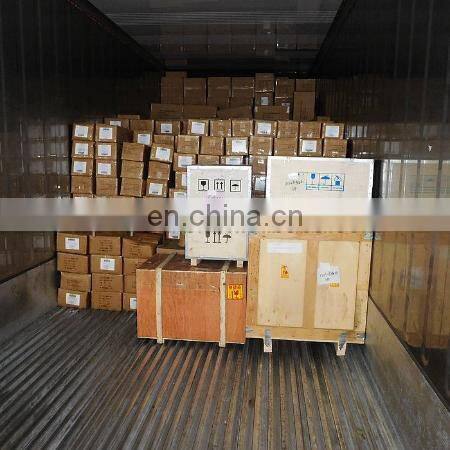

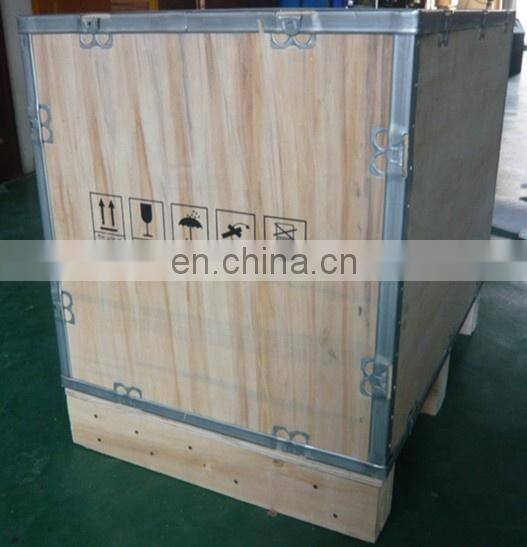

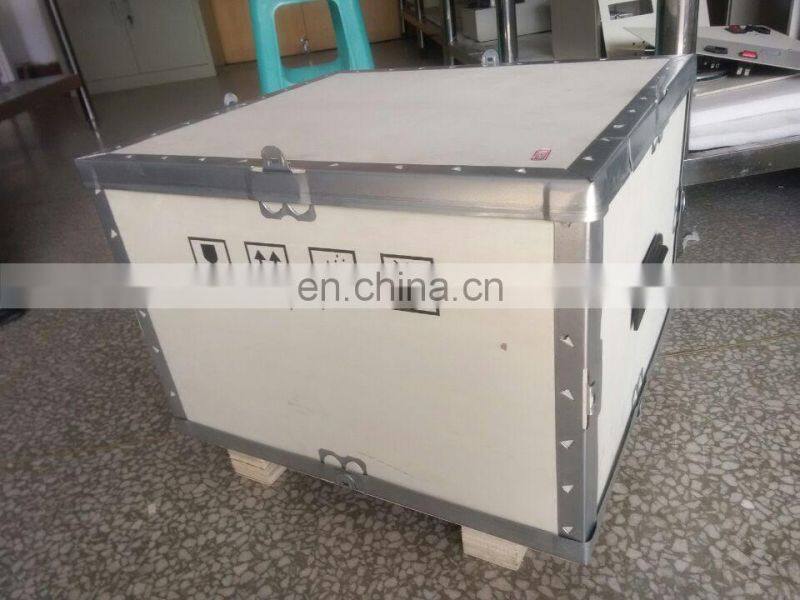

Packing: standard export wooden case per set.
Delivery method: testing equipment are usually delivered by express or air, but other method is available if necessary.

Company Introduction

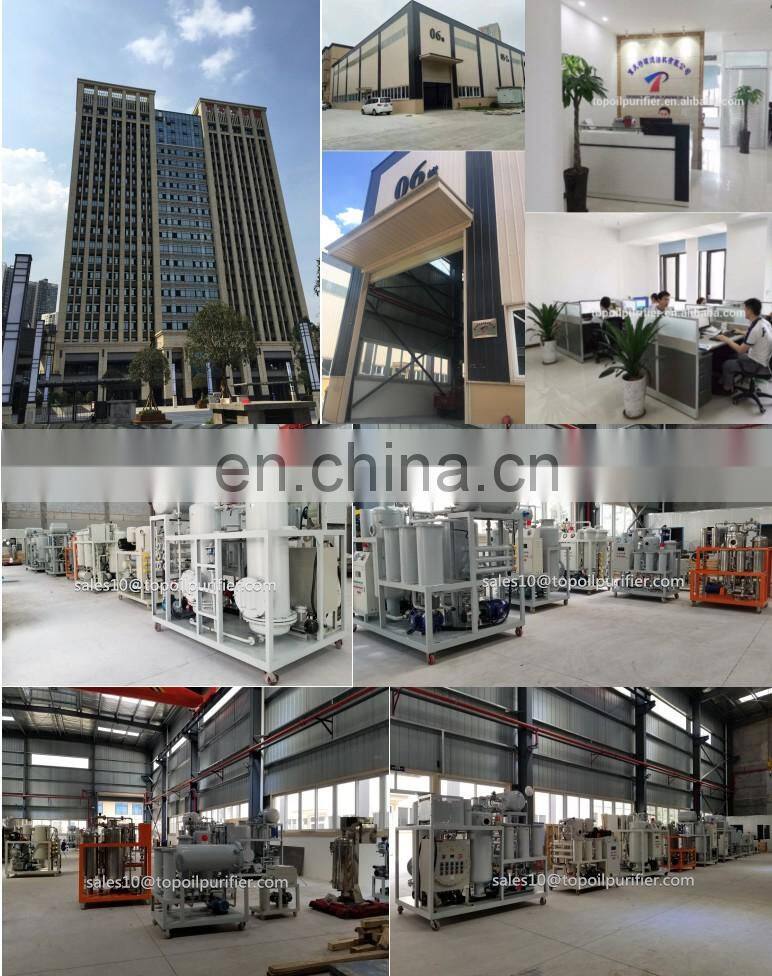

Chongqing TOP Oil Purifier Co.,LTD is a professional leading manufacturer and supplier of oil purifiers and various related testers, located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality. We have departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, excellent performance and lone service life.

Certifications

FAQ:

1. What is the mini order quantity? MOQ: generally 1 unit/piece/set

2. What payment methods are supported? Payment method: By T/T, L/C, Alibaba Trade Assurance etc.

3. What are the available delivery methods? Our port location: Chongqing, Shanghai or other main port of China Delivering to: Worldwide Delivering method: by sea, by air, by truck, by express, combined transportation 4. How long is the product date of delivery probably? Delivery date differs with product type, order quantity, special requirement etc. Usually this testing equipment delivery time is around 5~10 days. Some products have stock, contact us anytime to get more information. 5. How long is the warranty period? We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system. 6. How is the technical services on the product? Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.

If you are interested in this machine or other related equipment, welcome to contact me for more information. You can send me inquiry here or contact me at +8613983286435 (Mob/Whats App) or sales10( at ). I will response the soonest within 24 hours.
