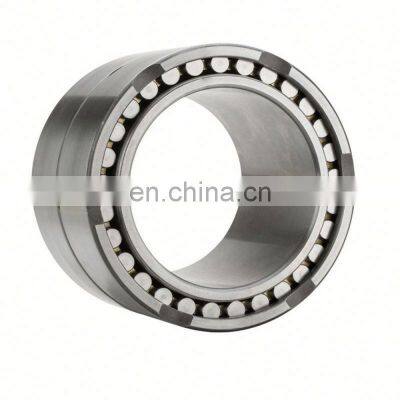

4R 9604 4-Row Cylindrical Roller Bearings 4R9604

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

4R 9604 4-Row Cylindrical Roller Bearings 4R9604

Boundary dimensions				Abutment and fillet dimensions			Mass	Bearing Numbers
mm				mm			kg
d	D	B1	C1	Fw	da	Da
380	540	400	400	422	396	524	309	4R7618
380	540	400	400	424	400	520	298	4R7613
400	560	400	400	446	420	540	303	4R8007
400	560	410	410	445	416	544	349	4R8010
400	590	420	420	450	416	574	399	4R8011
420	560	280	280	457	436	544	189	4R8403
420	580	230	230	466	436	564	181	4R8404
420	600	440	440	469.6	444	589	423	4R8407
420	620	400	400	478	440	600	410	4R8401
430	591	420	420	476	450	571	362	4R8605
440	600	450	450	480	448	580	392	4R8806
440	600	450	450	480	448	580	392	4R8805
440	620	450	450	487	460	600	450	4R8803
440	620	450	450	487	460	600	437	4R8801
460	620	400	400	502	476	604	383	4R9211
460	620	400	400	502	476	604	341	4R9209
460	620	460	460	502	476	604	417	4R9223
460	650	470	470	509	480	630	540	4R9216
470	660	470	470	517	490	640	529	4R9403
480	600	236	236	510	493	587	155	4R9610
480	650	420	420	523	500	630	423	4R9613
480	650	420	420	523	500	630	369	4R9607
480	680	500	500	532	504	656	640	4R9604
500	680	420	405	550	520	660	495	4R10010
500	680	420	405	550	520	660	451	4R10020
500	690	470	470	547	520	670	590	4R10016
500	690	510	510	552	520	670	640	4R10006
500	700	515	515	554	520	680	680	4R10011
500	710	480	480	556	524	686	675	4R10008
500	720	530	530	568	520	700	780	4R10015
500	720	530	530	568	520	700	745	4R10024

Packing&Shipping

Bearings Package:

Original Package:

1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

2):Small sizes:Plastic Tube + Carton

3):Big sizes:Wooden Case

Bearings Lead time:

We will prepare your order as soon as possible.

1)2-3 days for ex-stock

2)6-10 days for others
