Home > Products > Crossed roller bearing > Cross Roller Bearing XU080430 380x480x26mm XU Bearing

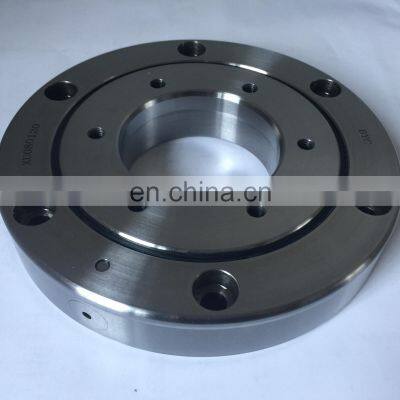

Cross Roller Bearing XU080430 380x480x26mm XU Bearing

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Crossed roller bearings product description

BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

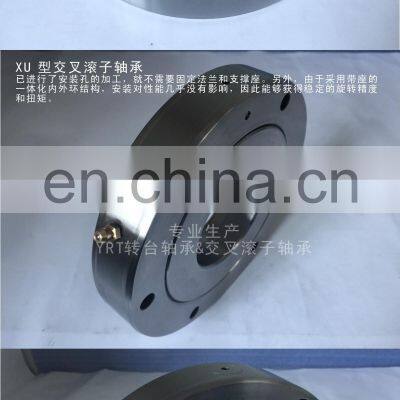

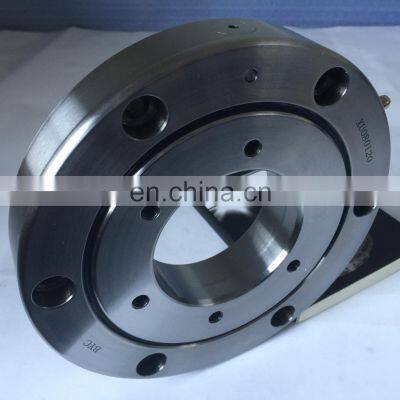

Products Show

Product Paramenters

Model number	Main dimensions (mm)				Weight (kg)
Model number		Inner ring(d)	Outer ring (D)	Width	Weight (kg)
XU050077	40	112	22	1.4
XU060094	57	140	26	2.4
XU060111	76.2	145.79	15.87	1.2
XU080120	69	170	30	4
XU080149	101.6	196.85	22.22	3.6
XU120179	124.5	234	35	7
XU120222	140	300	36	12
XU160260	191	329	46	16
XU080264	215.9	311	25.4	6.9
XU160405	336	474	46	25
XU080430	380	480	26	12
XU300515	384	646	86	115

Plan01

Blister packaging

Plan02

Carton packaging

Plan03

Wooden case packing

Packaging & Shipping

1. Industrial Neutral Packing,Package as your requirements. 2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box 4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc

Company Profile

Company Information

Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings, Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.
