Home > Products > Crossed roller bearing > |thin Section Slewing Bearing Cross Roller Bearing XSU141094 Cylindrical Bearing

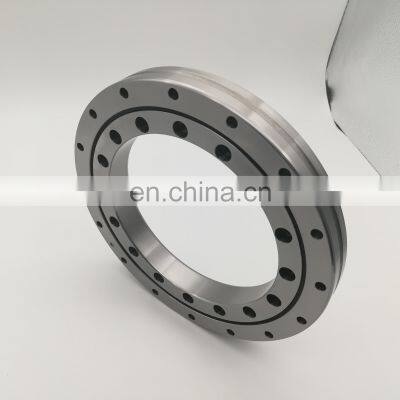

|thin Section Slewing Bearing Cross Roller Bearing XSU141094 Cylindrical Bearing

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Crossed roller bearings product description

BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Products Show

Product Paramenters

Shaft diameter	Model number	Main dimensions (mm)					Weight (kg)
Shaft diameter	Model number			Inner ring(d)	Outer ring (D)	Width	Weight (kg)
130	XSU080168	130	205	25.4	3.3
150	XSU080188	150	225	25.4	3.7
180	XSU080218	180	225	25.4	4.3
220	XSU080258	220	295	25.4	5.1
280	XSU080318	280	355	25.4	6.3
360	XSU080398	360	435	25.4	7.8
344	XSU140414	344	484	56	28
474	XSU140544	474	614	56	38
574	XSU140644	574	714	56	44
674	XSU140744	674	814	56	52
774	XSU140844	774	914	56	60
874	XSU140944	874	1014	56	67
1024	XSU140094	1024	1164	56	77

Plan01

Blister packaging

Plan02

Carton packaging

Plan03

Wooden case packing

Packaging & Shipping

1. Industrial Neutral Packing,Package as your requirements. 2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box 4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc

Company Profile

Company Information

Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings, Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.
