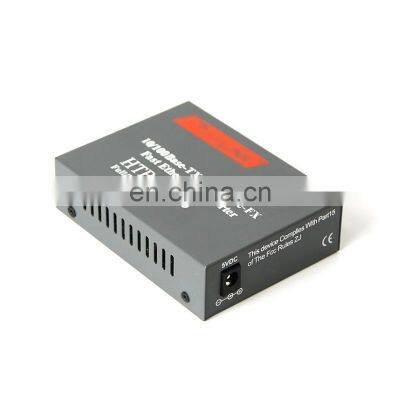

10/100Mbps HTB-1100S 25km SC Single Mode Double Fiber Optical Media Converter
Product Description:
HTB -1100S is 10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair
cable and optical fiber transmission medium of transformation, relay base - TX 10/100 and 100 base - FX
two different network segments, can satisfy the longdistance, high speed and high bandwidth fast Ethernet workgroup user needs.
Product parameters:
Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards
Provides a standard RJ45 interface and two SC fiber interface
LED: Power,FDX/Col,FX link/Act,TX Link/Act,Fx 100,TX 100.
Duplex Mode:Full or Half Duplex Mode
Data transfer rate: 10/100Mbps data transfer rate
Power Requirement: AC 100-240V 50/60HZ DC 5V/2A
Ambient Temperature: 0 to 70 degree
Humidity: 5 per cent to 90 per cent
Dimensions:40*100*140mm
Cable:UTP:Cat.5 UTP Cable
Fiber Singlemode:9/125um
HTB -1100S is 10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair
cable and optical fiber transmission medium of transformation, relay base - TX 10/100 and 100 base - FX
two different network segments, can satisfy the longdistance, high speed and high bandwidth fast Ethernet workgroup user needs.
Product parameters:
Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards
Provides a standard RJ45 interface and two SC fiber interface
LED: Power,FDX/Col,FX link/Act,TX Link/Act,Fx 100,TX 100.
Duplex Mode:Full or Half Duplex Mode
Data transfer rate: 10/100Mbps data transfer rate
Power Requirement: AC 100-240V 50/60HZ DC 5V/2A
Ambient Temperature: 0 to 70 degree
Humidity: 5 per cent to 90 per cent
Dimensions:40*100*140mm
Cable:UTP:Cat.5 UTP Cable
Fiber Singlemode:9/125um
Fiber Type | Single mode Dual Fiber |
Wavelength | 1310nm |
Transmission distance | 25Km |
Min TX PWR | -17.0dBm |
Max TX PWR | -8.0dBm |
Sensitivity | -31.0dBm |
Link Budget | 14.0dBm |
