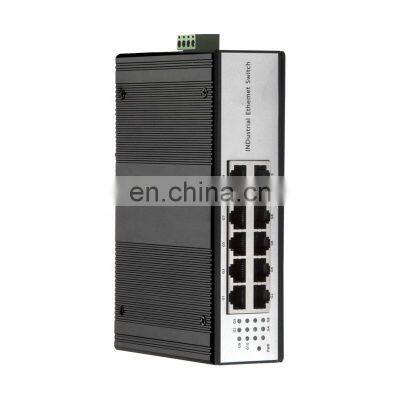

Manufacturer's price Ethernet Switch Industrial Grade Model 10 10/100/1000M RJ45 Ports DIN Rail high quality
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Portable All-In-One Fiber Optical Power Meter With 5km Laser Source Visual Fault Locator
-
Optical Power Meter VFL Network Cable Test Optical Fiber Tester LED Light Rechargeable battery YYS-OP60N
-
OEM&ODM Factory 1 Pair 10/100Mbps 1 Optical Port 1 RJ45 Port Fiber Optical Converter
-
10/100M 1310/1550nm 1 Fiber Optical Port 8 RJ45 Port Fiber Optic Media Converter high quality
-
10/100M Fiber Optic Media Converter 2 Fiber Port +4 RJ45 Port
-
Tanghu SC Port 100M 1 Fiber Port +1/4RJ45 Port Fiber Optic Media Converter
Product Description
Recommend Products
Product Description
Industrial grade type network switches is a fiber industrial Ethernet ring network switch based on independent software research and development, it has 1/2/4/8*10/100 base - TX (RJ45 Ethernet port) adaptive Ethernet port and 1* 100Base-Fx optical port(SC/ST/FC/SFP interface optional). Equipment has feature of ring network, the backup link, fast recovery, fault diagnosis ability, configuration, management, support web interface.
Our products components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, and achieve IP40 protection grade, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method. Power input also chooses a suitable industry-standard types of power, to get more powerful suitability to environment. The series of network type industrial Ethernet switches satisfy the 3C, CE/FCC, EN61000 standard, MTBF > 100000 hours, high stability, high reliability and performance, is an ideal product used in the industrial environment.
* Industrial Ethernet series designed for harsh industrial environments;
* 1/2/4/8*10/100/1000Base-Tx RJ45 port complying with IEEE 802.3af/at and 1* 1000Base-Fx optical ports;
* Electrical interface (RJ45 port) support 10/100M adaptive, full/half duplex mode, MDI/MDI-X auto-detect;
* Optical interface supports three optical fiber transmission modes: dual-fiber multi-mode, dual-fiber single-mode, single-fiber
single-mode, SC/ST/FC/SFP interface optional;
* Ultra-low latency and flexible caching technology: Adopt "store-and-forward" mode, seamlessly connect devices of different rates
and work mode adaptive;
* Support a wide range of DC input; Support internal isolation, redundant dual power input;
* Power support overload protection, anti-reverse protection;
* Meet the industrial four electromagnetic compatibility requirements;
* Super lightning protection function: the use of imported lightning protection devices, anti-lightning, anti-induced high
voltage, anti-surge, etc.;
* Lightning protection level: Power Interface Level 4 lightning protection;
* Fanless cooling, reduce repair time;
* IP40 enclosure rating to withstand the harsh environment of the test;
* Industrial grade chip, -40~85℃ wide range of temperature
* HD monitor transmission and power supply
* Wireless AP layout transmission and power supply
* Network telephone transmission , intelligent house and home system
* Intelligent transportation supervisory system (ITS)
* High-speed Way supervisory/Tele-Communication System
* Security protection system, TV medical treatment
* Long-distance Muti-media Schooling, Campus monitoring
* Long-distance broadcast television transmission system
* High-building Security Protection, Military Tele-Com projects
Parameter:
Our products components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, and achieve IP40 protection grade, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method. Power input also chooses a suitable industry-standard types of power, to get more powerful suitability to environment. The series of network type industrial Ethernet switches satisfy the 3C, CE/FCC, EN61000 standard, MTBF > 100000 hours, high stability, high reliability and performance, is an ideal product used in the industrial environment.
* Industrial Ethernet series designed for harsh industrial environments;
* 1/2/4/8*10/100/1000Base-Tx RJ45 port complying with IEEE 802.3af/at and 1* 1000Base-Fx optical ports;
* Electrical interface (RJ45 port) support 10/100M adaptive, full/half duplex mode, MDI/MDI-X auto-detect;
* Optical interface supports three optical fiber transmission modes: dual-fiber multi-mode, dual-fiber single-mode, single-fiber
single-mode, SC/ST/FC/SFP interface optional;
* Ultra-low latency and flexible caching technology: Adopt "store-and-forward" mode, seamlessly connect devices of different rates
and work mode adaptive;
* Support a wide range of DC input; Support internal isolation, redundant dual power input;
* Power support overload protection, anti-reverse protection;
* Meet the industrial four electromagnetic compatibility requirements;
* Super lightning protection function: the use of imported lightning protection devices, anti-lightning, anti-induced high
voltage, anti-surge, etc.;
* Lightning protection level: Power Interface Level 4 lightning protection;
* Fanless cooling, reduce repair time;
* IP40 enclosure rating to withstand the harsh environment of the test;
* Industrial grade chip, -40~85℃ wide range of temperature
* HD monitor transmission and power supply
* Wireless AP layout transmission and power supply
* Network telephone transmission , intelligent house and home system
* Intelligent transportation supervisory system (ITS)
* High-speed Way supervisory/Tele-Communication System
* Security protection system, TV medical treatment
* Long-distance Muti-media Schooling, Campus monitoring
* Long-distance broadcast television transmission system
* High-building Security Protection, Military Tele-Com projects
Parameter:
NAME | Industrial Ethernet Switch |
PORTS | 10 RJ45 Ports |
PROTOCOL | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; |
RJ45 PORT | 10/100/1000BaseT（X），F(xiàn)ULL/HALF DUPLEX, MDI/MDI-X |
CABLE | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
FIBER CABLE | MM:850nm 0～550M/1310nm 0～2KMSM:1310nm 0～40KM /1550nm 0～120KM |
PROPERTY | Layer 2 |
BANDWIDTH | 1.6Gbps |
PACKAGE FORWARDING RATE | 0.1448Mpps |
PROTECTION | IP40 |
LED INDICATOR | POWER INDICATOR：PWR PORTS INDICATOR：Link/ACT |
WORKING TEMPERATURE | -30～75 °C |
STORAGE TEMPERATURE | -40～85 °C（-40～185 °F） |
RELATIVE HUMIDITY | 5%～95%( |
STANDARD | EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6:3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16:30V cont. 300V,1s IEC(EN )61000-4-8 Shock：IEC 60068-2-27 Freefall：IEC 60068-2-32 Vibration：IEC 60068-2-6 |
CASING | Steel |
INSTALLATION | DIN RAIL, WALL |
WORKING TIME | 300,000 hours |
WEIGHT | 0.85Kg |
