Home > Products > Fiber Optical Cable > Outdoor FTTH Flat Drop Cable Single Mode Lszh Fiber Optical Drop Cable 1 core

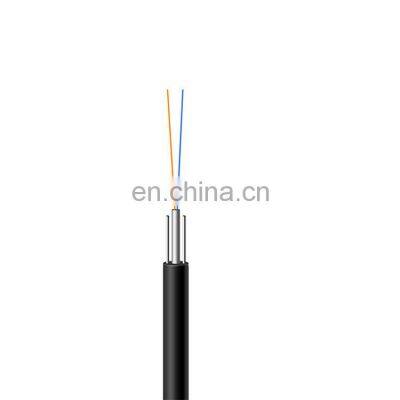

Outdoor FTTH Flat Drop Cable Single Mode Lszh Fiber Optical Drop Cable 1 core
Negotiable
1 (Min.Order)
- T/T Credit Card
You May Like
-
Steel Wire Strength Member Outdoor LSZH Jacket SM 2 Core Fiber Optic Cable FTTH Drop Cable
-
G652d G657A1 Single Mode Outdoor 1 Core FTTH Fiber Drop Cable
-
Manufacturer Price Per Meter Steel Wire Strength Member LSZH G652A 1 Core FTTH Fiber Drop Cable
-
1 2 4 6 Core LSZH FTTH Flat Bow-type Outdoor GJYXCH G652D G657A Fiber Optic Cable Drop
-
G652d Steel Wire Strength Member FTTH Fiber Drop Cable 4 Core Single Mode Fiber Optic Cable
-
Single Mode Overhead G652D G657A LSZH 1 Core Flat Drop Fiber Optic Cable
Product Description
Recommend Products
Product Description
Product description:
The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.
Features:
· Special bend-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;
· Two parallel FRPs make the cable have good compression resistance and protect the fiber;
· The cable has a simple structure, light weight and strong practicability;
· Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
· Low-smoke, halogen-free flame retardant jacket, environmentally friendly.
The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.
Features:
· Special bend-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;
· Two parallel FRPs make the cable have good compression resistance and protect the fiber;
· The cable has a simple structure, light weight and strong practicability;
· Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
· Low-smoke, halogen-free flame retardant jacket, environmentally friendly.
Fiber count | 1/2/4/6/8/12 |
Color Of fiber | Blue Orange Green Brown |
Fiber Type | G652D/G657A1/G657A2 |
Strength member | Steel wire/FRP/KFRP |
Supporting messenger wire | 1.0MM*x1 steel wire |
Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti |
Cable Diameter dimensions | 2.0( Height) × 5.0W ± 0.1 mm(width) |
Operation temperature range | -20 ℃ to + 70 ℃ |
Installation temperature range | -20 ℃ to + 60 ℃ |
Transport and storage temperature range | -20 ℃ to + 70 ℃ |
Tension Load (N) | Short term :800N Long term :500N |
Crush Load(N) | Long term 1000 N/100mm Short term:2200N/100mm |
Minimal installation bending radius | 30 x OD |
Minimal operation bending radius | 15 x OD |
Cable marking | The marking length 1meter apart , as required |
