Product Description
Product description:

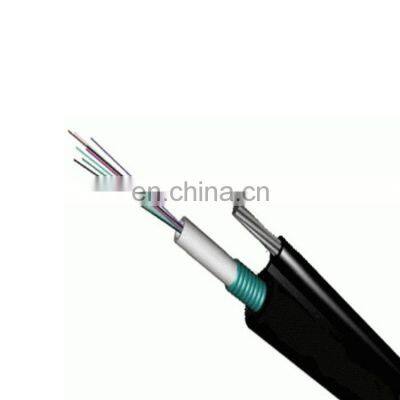

The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.
Features:
· The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs.
· Has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to protect the fiber.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length and low price.
Optical properties:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
attenuation (+20°C)
|
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A)
|
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable cut-off wavelength |
≤1260nm |
≤1480nm |
|
|
|
