2 Mm~5 mm Sino Erli SS A062NP Rutile Coating Welding Electrode E309L-16/ISO 3581-B-ES 309L-16
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2 Mm~5 mm Sino Erli Duplex SS S2215 Basic Coating Welding Electrode E2209-15
-
2 Mm~5 mm Sino Erli SS E309Nb Titanium Calcium Type Coating Welding Electrode E309Nb-16/ISO 3581-B-ES 309Nb-16
-
2 Mm~5 mm Sino Erli Duplex SS A1002 Titanium Calcium Coating Welding Electrode E312-16
-
2 Mm~5 mm Sino Erli SS E309L Titanium Calcium Type Coating Welding Electrode E309L-16/ISO 3581-B-ES 309L-16
-
2 Mm~5 mm Sino Erli Stainless Steel E304 Titanium Calcium Type Coating Welding Electrode
-
2 Mm~5 mm Sino Erli SS A902 Titanium Calcium Type Coating Welding Electrode E320-16/ISO 3581-B-ES 320-16
Product Description
Product Description

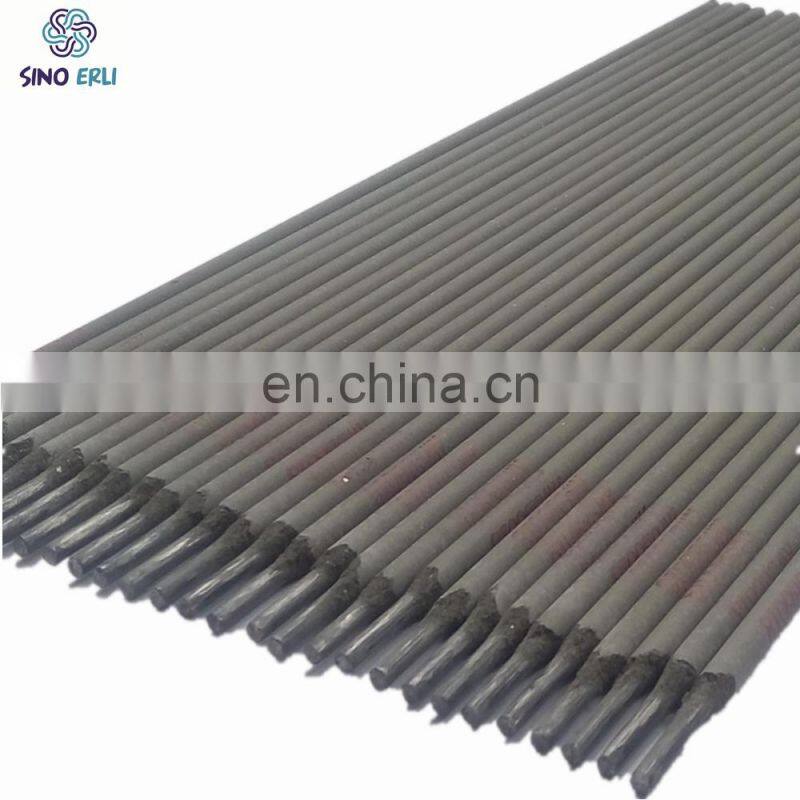

A062NP is a rutile-type coating of ultra-low carbon stainless steel electrode for nuclear power. It has excellent welding performance, small spatter, easy slag removal, stable arc, and beautiful weld shape. Both AC and DC can be used for all-position welding.
Used in nuclear power engineering, such as welding of pressure vessels and corresponding structures.
| Item | C | Mn | Si | Cr | Ni | Mo | P | S | Cu | Co | Nb+Ta | δfettite |
| Guarantee value | ≤0.030 | 0.50~2.50 | ≤0.90 | 22.00~25.00 | 11.00~14.00 | ≤0.50 | ≤0.020 | ≤0.010 | ≤0.15 | ≤0.050 | 8~18% | |
| Typical value | 0.024 | 1.50 | 0.72 | 23.0 | 13.20 | 0.015 | 0.013 | 0.002 | 0.011 | 0.017 | 0.012 | 8~18% |
| Rm (MPa) | A(%) | KV2 (J) -196℃ |
| 520~700 | ≥30 | ≥50 |
| 548 | 40 | ≥50 |
Attention:
1. The electrode must be baked at 300°C for 1 hour before welding, and used as it is baked.
2. Try to use small current and short arc welding when welding.
3. The weldments must be cleaned of rust, oil stains, moisture and other impurities before welding.
4. Try to use small current and short arc when welding, and the swing width should not exceed 2.5 times the diameter.
