Product Description
Product Description

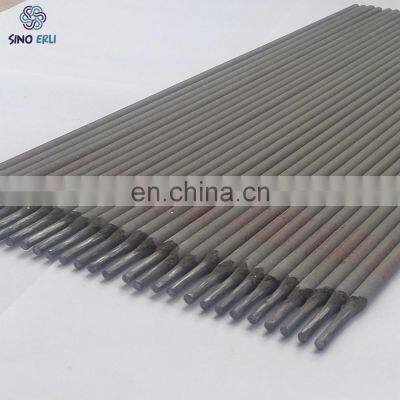

S2209 is an ultra-low carbon duplex stainless steel electrode coated with calcium-titanium coating. The deposited metal contains 40%-50% ferrite. It has excellent mechanical properties and corrosion resistance, especially reliable chlorine resistance. Chemical corrosion performance and high pitting corrosion resistance. Have good welding performance. It can be used for both AC and DC.
Used for welding ultra-low carbon 022Cr22Ni5Mo3N, SAF2205 and other duplex stainless steels.
| Item | C | Mn | Si | Cr | Ni | Mo | P | S | Cu | Co | N |
| Guarantee value | ≤0.040 | 0.50~2.50 | ≤1.00 | 21.50~23.50 | 7.5~10.50 | 2.5~3.5 | ≤0.040 | ≤0.030 | ≤0.15 | ≤0.050 | 0.08~ 0.20 |
| Typical value | 0.032 | 1.20 | 0.69 | 22.75 | 9.34 | 3.00 | 0.021 | 0.012 | 0.10 | 0.017 | 0.13 |
| Rm (MPa) | A(%) |
| ≥690 | ≥15 |
| 790 | 28 |
Attention:
1. The electrode must be baked at 300°C for 1 hour before welding, and used as it is baked.
2. Try to use small current and short arc welding when welding.
3. The weldments must be cleaned of rust, oil stains, moisture and other impurities before welding.
4. Try to use small current and short arc when welding, and the swing width should not exceed 2.5 times the diameter.
