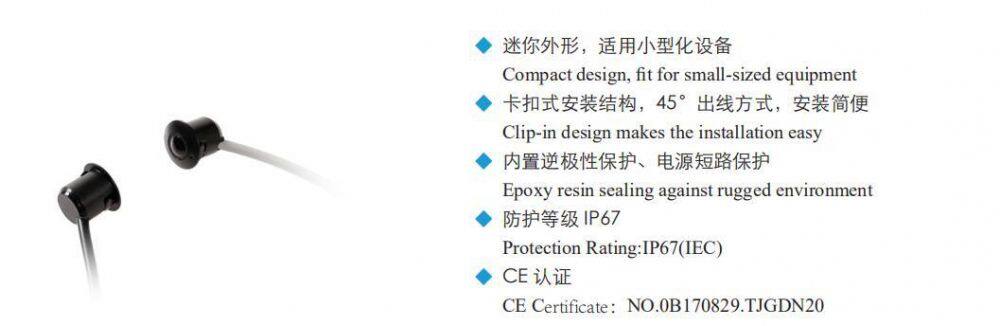

Plastic PNP Infrared Through Beam Photo Sensor for Access Automation
- tianjin
- T/T
- 7 days
You May Like
-
10m Micro Opposed Photoelectric Sensor for Flap Barrier Turnstile Gate
-
NPN 10m Through Beam Photo Sensor for Swing Gate Ada
-
Mini-Type LED Light Switch Sensors for Swing Barrier Gate Turnstile
-
Plastic Mini-Type LED Light Switch Sensors for Hermetic Medical Door
-
PNP Infrared Micro Photoelectric Switch for Physical Access Control
-
IP67 Infrared Plastic Micro Photoelectric Sensor for Pedestrian Barrier Gate
Product Details
| Brand Name | G-TEK | Place of Origin | China | |
| Model Number | PT12TW,PT12TV | Usage | Other, industrial doors | |
| Theory | Optical Sensor | Output | Switching Transducer |
Product Description
Product Parameters | ||
Photoelectric sensor | PT12TW | |
Detection type | Opposed type | |
Detection object | MinΦ20mm opaque object | |
Detection distance | 10m | |
Supply voltage | 10-30v DC | |
No-load current | Emitter | Max. 12mA |
Receiver | Max. 3mA. | |
Response time | Max.4.4ms （connecting: 2.2ms; cutting down:2.2ms) | |
Light | 850nm infrared(modulated) | |
Action Mode | Selecting light on /dark on by product model | |
Control output | NPN open collector，load voltage: Max.30VDC， load current : Max.150mA，voltage drop: Max.1.5VDC；PNP open collector，output voltage: Ue-1.5V，load current: Max.150mA； | |
Indicator | Action indicator: Red | |
Protection circuit | Reverse polarity 、short circuit protection | |
Anti-interference | ±2KVanalog square wave interference(pulse width: 15ms) | |
Ambient brightness | Sunlight: Max.30000lux Fluorescent: Max.5000lux | |
Ambient temperature | －20℃~60℃ (No-freezing)，Storage: －25℃~70℃ | |
Ambient humidity | 0~90%RH | |
Housing material | Housing: ABS Cable: PVC | |
Shape and size | As dimension | |
Cable | Emitter: Black, Receiver: Grey Φ3.4mm2; 3×0.12mm2 | |
Protection rating | IP67 (IEC) | |
Model | ||
Installation | Product Model | Detection Distance |
Opposed type | PT12TW-10M-ND | 10m |
PT12TW-10M-NL | 10m | |
PT12TW-10M-PD | 10m | |
PT12TW-10M-PL | 10m | |
