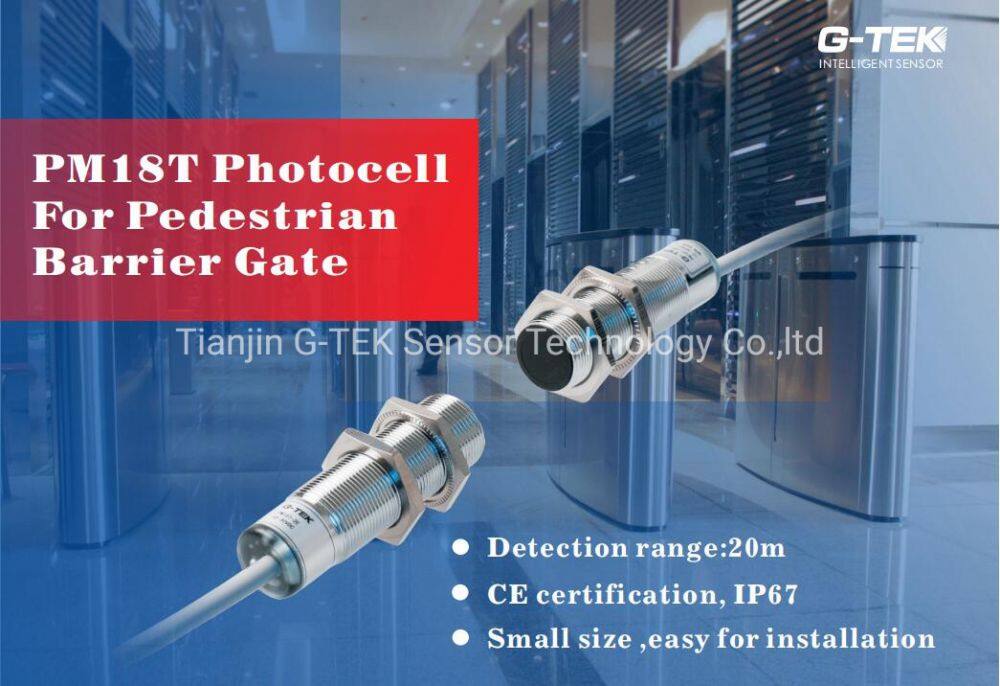

IP67 PNP Infrared Opposed Photoelectric Sensor for Rolling Service Doors

FOB Price

US$ 13 - 15 / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	G-TEK	Place of Origin	China
Model Number	PM15T	Usage	Other, automatic doors and tursnstiles
Theory	Optical Sensor	Output	Switching Transducer

Product Parameters

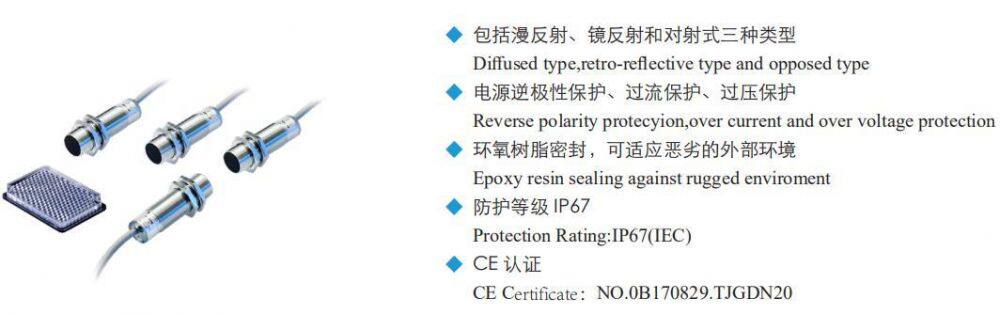

Photoelectric sensor	PM18T
Detection type	Opposed type
Detection object	MinΦ18mm opaque object
Detection distance	20m
Supply voltage	10-30v DC
No-load current	Max.40MA
Response time	Max.15ms
Light	Infrared LED(modulated)
Action mode	Selecting Light On/Dark On on product model basis
Control output	NPN open collector，Load voltage: Max.30VDC， Load current: Max.150mA，Voltage drop: Max.0.7VDC；
Control output	PNP open collector，Output voltage: supply voltage-0.7V， Load current: Max.150mA；
Indicator	Power indicator: Green；Action indicator: Red
Protection circuit	Over-voltage、Short-circuit、Reverse polarity protection
Ambient brightness	Sunlight: Max.11000lux Fluorescent: Max.3000lux
Ambient temperature	－20℃~60℃ (No-freezing)，Storage: －25℃~70℃
Ambient humidity	0~90%RH
Housing material	Housing: Cu plated Ni plated Cr Lens: PMMA
Shape and size	As dimension
Cable	Emitter: Φ 5, 2×0.3mm2; Receiver: Φ5, 3×0.2mm2
Protection rating	IP67 (IEC)
Accessory	Screw
