Small scale palm oil processing machine and palm oil processing process

Brand Name	Doing Group		Place of Origin	China
Model Number	palm oil press machine		Type	Other, palm oil processing machine
Certification	CE&ISO		After-sales Service Provided	Engineers available to service machinery overseas
Weight	according to the different capacity		Dimension(L*W*H)	according to the different capacity
Production Capacity	500kg/h		Voltage	220v/380v/440v
Usage	Other, extract palm oil from palm fruit		Condition	New
Power(W)	according to the different capacity		Automatic Grade	Automatic

Since many Africa customers, especially in Ghana, Nigeria, and other countries, requires relatively small scale palm oil making machine. But, most of the palm oil processing machine manufacturers can't supply the palm oil processing machine with such small scale capacity. So, it is not easy for small scale business man or small scale farmers to start their own palm oil production business. Fortunately, Henan Glory Company's engineers specially designed  palm oil processing machine that is used to extract palm oil for small scale capacity. The typical processing process of our small scale palm oil processing machine is as below.

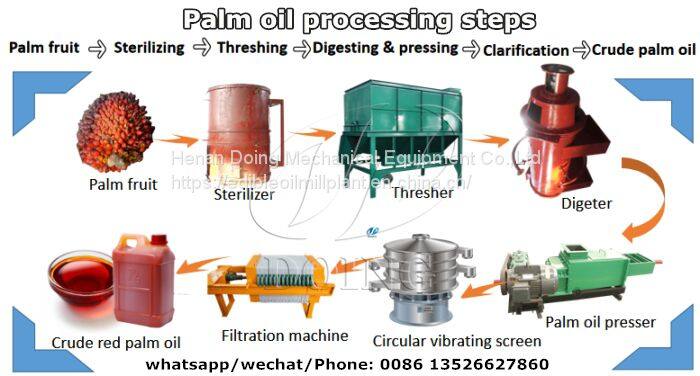

FFB → Sterilizing→ Threshing → Digesting→ Pressing → Filtration → CPO

Main processing process of small scale palm oil processing machine is as follows:

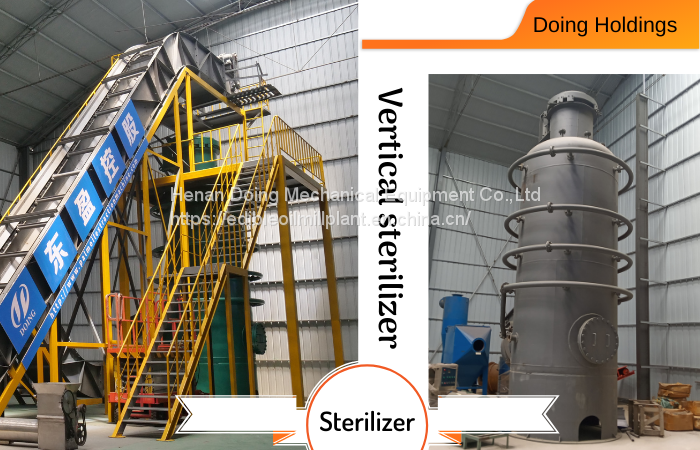

1)Palm Fruit Sterilizer: mainly used to sterilize palm fruit through boiling and high temperature (more than 145℃). The purpose of palm fruit sterilization is to prevent enzyme decomposition and further increase the content of free fatty acids; At the same time, it is helpful for subsequent treatment to reduce the fragmentation of palm kernel.

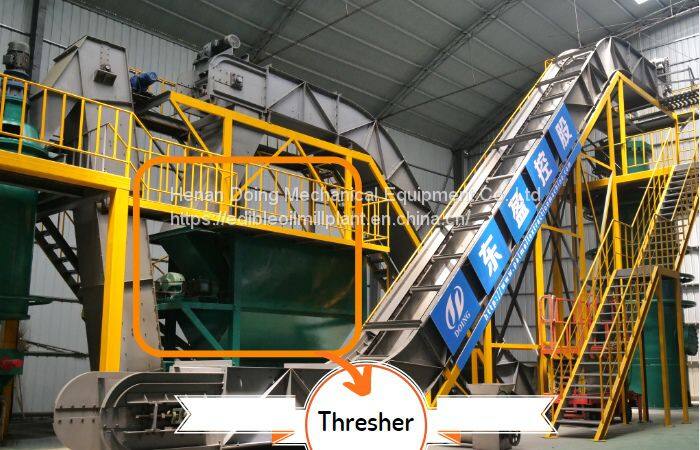

2)Palm Fruit Thresher: mainly used to separate palm fruit from palm fruit clusters. It is the professional palm fruit separation machine.

 3) Palm fruit digesting machine: It is mainly used to crush sterilized palm fruit into palm pulp, which will shorten the oil pipeline and facilitate palm oil extraction;

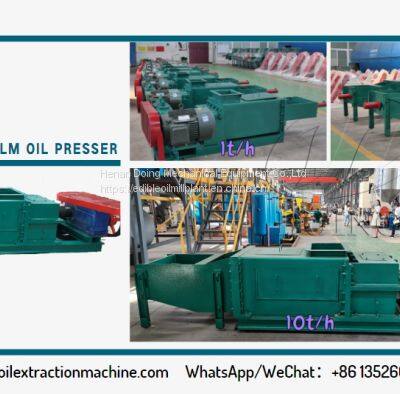

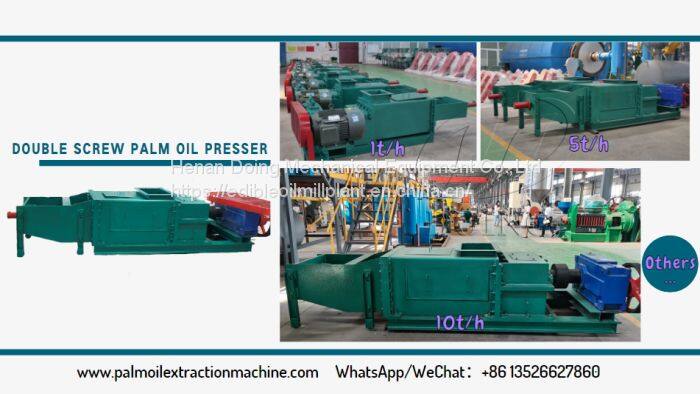

4)Pam Oil Press: screw palm oil press is the most commonly used small scale palm oil making machine. After pressing, the mixture of oil and water and pressed cake (fiber cake) can be obtained.

5)Crude Oil Clarification machine: It is mainly used to remove various kinds of impurities in crude palm oil to ensure get high quality crude palm oil.

Through the above steps we can get relatively pure palm oil, which can be eaten directly, if you have other special uses, you can also carry out deep processing, like palm oil refinery and fractionation process.

No matter what kinds of palm oil processing machine do you want to buy, Henan Glory Company all can supply the most suitable palm oil processing machine for you. The palm oil processing machine we manufacture includes: palm fruit sterilizer machine, palm fruit thresher machine, palm oil screw press machine, double screw palm oil press, small scale palm oil processing machine, palm kernel cracking and separating machine, palm kernel cooker machine, palm kernel oil expeller machine, palm kernel oil refining equipment, palm oil fractionation equipment, etc.
