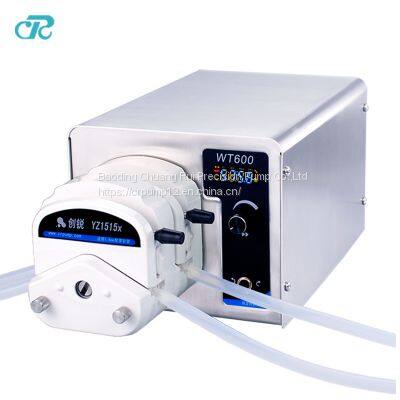

Touch Screen And Button Transmission Peristaltic Pump

FOB Price

USD $580 - $600 / Set

1 Set(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Tianjin /Shanghai
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CRPUMP	Place of Origin	China
Application	Other, BT300LC Peristaltic Pump	Fuel	Gasoline
Power	Electric	Usage	Other, water /oil
Theory	Electromagnetic Pump	Standard or Nonstandard	Standard
Structure	Other, peristaltic pump	Pressure	Low Pressure

Product Description

The peristaltic pump hose, has one substantial benefit:? accurate dispensing or metering without risk of cross-contamination.  Dual channel Peristaltic metering pumps became ideal for a wide range of industries and applications because of this advantage. For example, in medical or laboratory devices, Dual channel peristaltic pumps can be used for processing of sterile fluids, dialysis, filtration, or bio-processing, Our model BT300LC peristaltic infusion pump is very popular in hospital, it has high accuracy as it’s also stepper Motor Peristaltic Pump. In food, agriculture, or disinfection processes, they can be used for dispensing food or beverages, vitamins or chemicals. It also can be used for wastewater treatment or other environmental application such as condensate removal in gas analysis. So if you want variable peristaltic pump with high flow/medium flow/micro flow, choose Chuangrui brand is the best choice.

Parameter Model : BT300LC/YZ1515x
Parameter Model : BT300LC/YZ1515x
Speed	0.1-300rpm
Speed resolution	0.1rpm
Flow rate	0.007-1140ml/min/channel
Control Method	Touch screen + keypad
Display Mode	LCD（English and Chinese optional）
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
Foot pedal	Yes

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow range(ml/minchannel)
18#	7.9	11.1	Silicon tube	0.38-1140
17#	6.4	9.6	Silicon tube	0.29-870
25#	4.8	8	Silicon tube	0.17-510
16#	3.2	6.4	Silicon tube	0.082-246
19#	2.4	5.6	Silicon tube	0.051-153
14#	1.6	4.8	Silicon tube	0.027-81
13#	0.8	4	Silicon tube	0.007-21
