Full Automatic New Glue Lamination Kitchen Paper Roll Making Machine
- T/T Credit Card
You May Like
-
Full Automatic Color Printing Toilet Paper Roll Rewinding Machine
-
High Standard Automatic Small Bobbin Roll Paper Making Machine
-
Full Automatic Kitchen Towel Paper Production Line for Sale
-
Full Automatic Wall Structure 2800mm Toilet Paper Rewinding Machine
-
Fully Automatic Bathroom Tissue Toilet Paper Making Machine
-
Automatic Small Toilet Tissue Paper Making Machine Production Line
Product Description

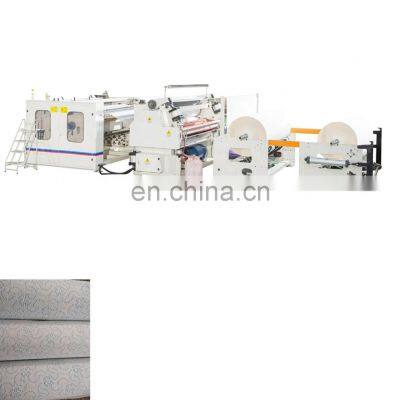

Full automatic new glue lamination kitchen paper roll making machine
XY-TQ-A
Outline
1. This machine is consist of stand of raw material, paper conveying unit, embossing unit, spraying unit, perforating unit,
reeling unit, electricity control and cutting system.
2. The production process: unreeling→embossing→Colored gluing→perforating→reeling→cutting
3. Production Procedure is controlled by Programmable controller
system, fully automatic in production process,
4. automatically exchange the core, spraying, and sealing without stopping the machine and also automatically raise and lower
speed when exchanging the core.
5. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no
core pipes.
6. Automatic alarm for breaking off of paper.
7. Equip with single color print unit or double color print unit.(need to order)
8. Two embossing units are equipped to produce dot-by-dot products.
9.The width of the machine can be designed from 1.2m to 2.4m according to the requestments.
Function and characteristic
1. Production line:0-120m/min
2. Product Diameter:80-130mm(can be adjustable)
3. Punching line distance:100-200mm(can be adjustable)
4. Power:8.5Kw (380V 50Hz)
5. Overall size(LxWxHm):6.9x2.7x1.8 (with two embossing units, two laying paper stands type)
6.Width of jumbo roll: TQ92A 1.2m TQ75A 1.8m
7.Weight:About 4.5M/T
Automatic toilet paper production line
XY-AI-280
Automatic toilet paper roll cutting machine
XY-AI-398
Semi-automatic Multi rolls Packaging Machine
1.What can i get during I buy the paper mahine from your coropration?
first of all,we will provide best serves sincerelly to our customer ,then we'll offer the good quality paper machine with resonable prices to you
second The prices are clearly and quite good .there is no haggling as well. So you don't have to worried about you would get ripped off or anything.
2.How long dose it take freight transport to finaly destination from city ?
Reguarlly !The freight transport it would takes time about 1-60 days.
3.Is there have any engineers to instruct me to how to operate machine ?
Of cause! I'll send a professional engineer to instruct your wokers how to operate and maintain the machine in your local factory!
4.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
