Home > Products > Micro brushless motor > Bl5025 24v Outer Rotor Bldc Brushless dc Motor for Massage Gun Long Life Low Noise Bl5025o

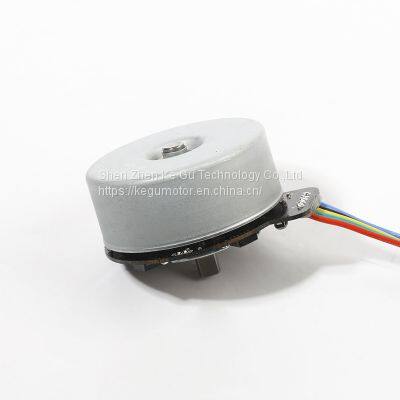

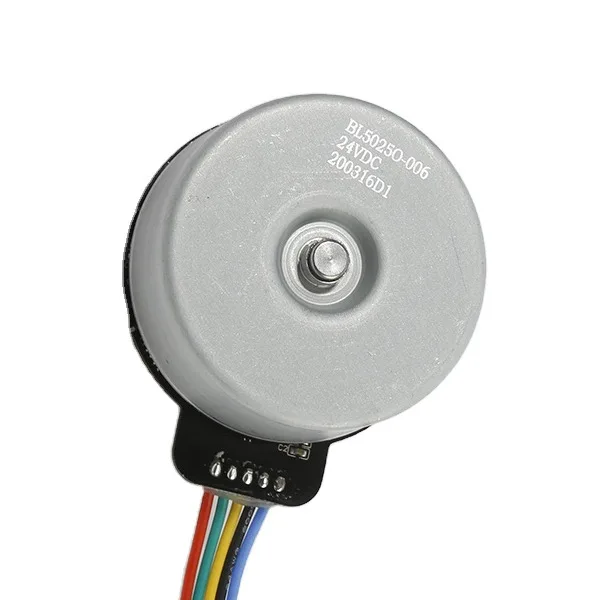

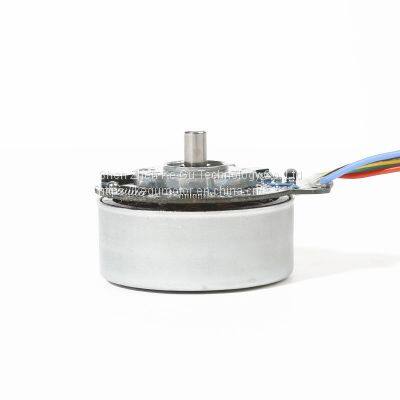

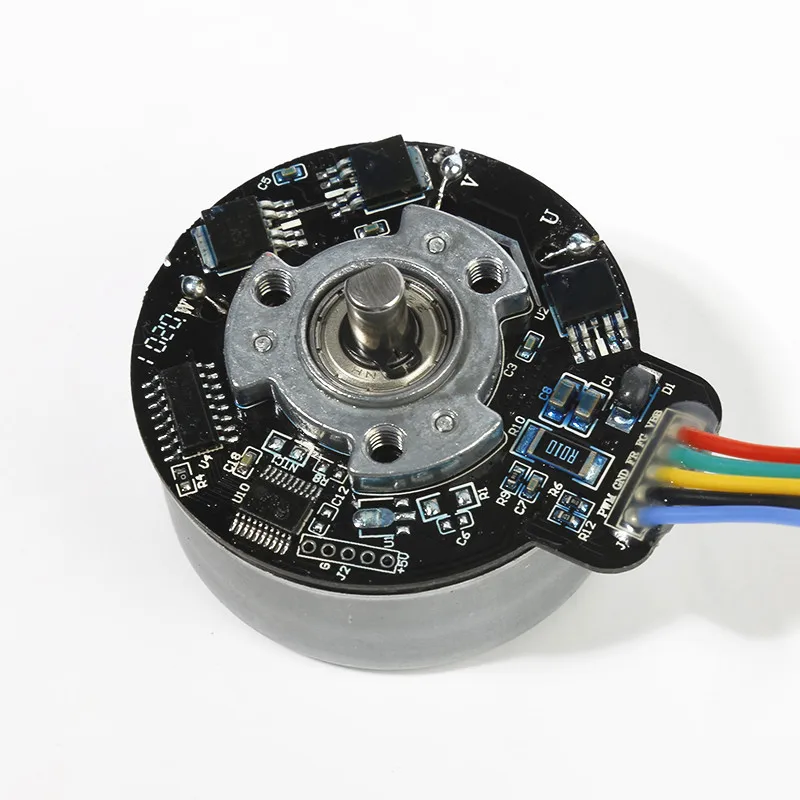

Bl5025 24v Outer Rotor Bldc Brushless dc Motor for Massage Gun Long Life Low Noise Bl5025o

FOB Price

US$ 7.9 - 26.5 / Piece

1 Piece(Min. Order)

Port shenzhen/hongkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	kegumotor	Place of Origin	China
Model Number	BL5025 BL5025O	Type	Micro Motor
Certification	CCC, CE, ROHS	Torque	500g.cm
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Permanent Magnet
Efficiency	IE 1	Protect Feature	Explosion-proof
Voltage(V)	12	Output Power	10
Continuous Current(A)	0.05	Speed(RPM)	2500
Commutation	Brushless

Product Description

50mm 6v 24v mini brushless BL5025 dc motor for massage gun motor

50mm 12V high torque brushless dc micro motor BL5025o Brushless motor

Volt	16.8v
No Load Speed	3803rpm
Rated Speed	3329rpm
Rated Torque	911g.cm
Application	Robot , door lock , toy, cabinet lock

SPECIFICATION:

1. Voltage: DC 24V
2. No load speed: 2755±10%rpm
3. No load current: 0.14A
4. Diameter 55mm, length 20mm, shaft dia 6.0mm
5. Material: plastic gear and metal DC motor
6. Weight: 230g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc
8. Customized,Adjust the performance at free(voltage, speed, torque)

Kegu Motor Provide intelligent lock solution

Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque

* Low Noise

* Longer life time up to 200,000 times unlock

Detailed Images

BL5520o bl5520 permanent magnet electric brushless micro dc 5.0V USB mini fan motor

Our factory support for customing many model type brushless dc motor, it can be according as follow:

1) Model type or size:Main model type or size, shaft size, extend shaft size;

2) Parameter:Voltage, speed, current, torque……

3) Usage:That brushless dc motor use for which product?

4)DC motor type:Normal micro motor, vibration motor, gear motor, pump motor?

5) Other request:If it need Eco-friendly?

Or anti-interference? life expectancy, noise amplitude and so on.
DC Brushless Motor Series 24mm Series 28mm,Series 36mm,Series 42mm

Size Information

Drawing of BL5025 BL5025O 50mm BLDC brushless dc motor

Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Recommended by seller

B1625M 6v small brushless dc motor 16mm bldc motor for cash register$2.70 - $9.50 / Piece100.0 Pieces

6mm 3v small dc planetary gear coreless motor with plastic gearbox for Precision instruments$1.90 / Piece50 Pieces

High torque long life 24V 10mm gear motor for car modification$3.50 / Piece1000 Pieces

Electric China Motor Low Price RS-540 DC Brushed Motor For Air Pump$1.00 - $2.50 / Piece1.0 Pieces

Car dc motor 12v 24v 15000rpm 42mm 60mm small 775 770 DC Automotive Motor$2.30 - $2.50 / Piece1.0 Pieces

long life low noise 10*24mm U type 3v 6v 12v N20 dc gear motor, 24mm geared motor$2.87 / Piece1 Piece

1:100 12mm dc metal gear motor 3v 6v 12v 24v N20 dc motor with encoder$2.10 - $5.00 / Piece1000.0 Pieces

Mini DC Gear Motor 12V 24V D Shaft 37mm Gearbox Motor Reduction Small Electric Motor with Encoder$3.00 - $7.50 / Piece50.0 Pieces

25mm dc gear motor 6v 12v 370 dc brush motor with 25mm metal gearbox$2.27 - $7.50 / Piece1.0 Pieces

BL4260 dc 12v 18v 24v 100 200 250 300 watt 80kg.cm 90kg.cm 100kg.cm high torque 42mm brushless planetary gear motor$11.80 - $22.00 / Piece1.0 Pieces

high torque low price 12mm gear motor 3v 5v 6v 9v 12v DC with Plastic gearbox for Door Lock$2.10 / Piece1 Piece

micro 1.5v 2.5v 4.5v 10mm dc planetary plastic gear box motor from Kegu motor$0.85 / Piece1 Piece

Packing&Shipping

After Sales Service

The reliability and stability of the product is an important index to evaluate the technical level of the product.In order to accurately analyze, evaluate and verify the performance of the product.

So Kegu motor will reply customer in 2 days after receive
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.

Company Introduction

Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.The company strictly implements the IS9001:2015 management system.

Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.

Our Services & Strength

R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.

Provide customized, design, development, production and assembly services of micro gear transmission system.

Certifications

FAQ

Q:1.What kind of motors you can provide?

A:Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
