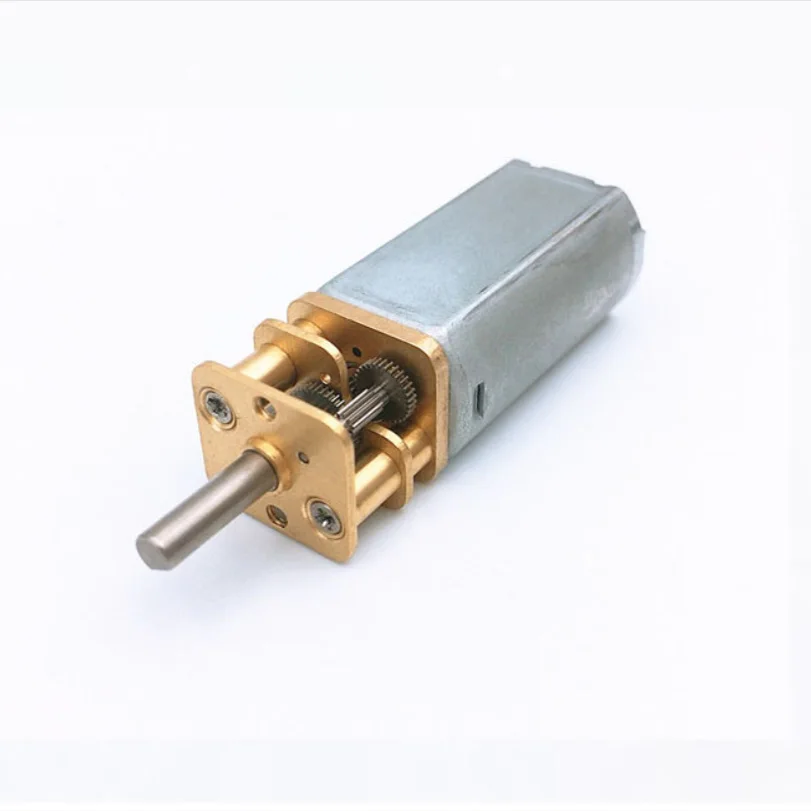

3v 5v 9v 12v dc Mini Gear Motor 13mm Electric Gear Motor With FF-050 dc Motor for Smart Door Lock
US$ 2.7 - 6.5
/ Piece
1 Piece(Min. Order)
- shenzhen/hongkong
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
- 7 days
You May Like
-
Kegu Motor 20mm 3V 6V 12v 1rpm-2000rpm Spur dc Gear Motor for Electric Lock
-
100rpm 200rpm 300rpm 20mm 6v Volt 12v Small High Torque Electric dc Gear Motor Gearbox With Ff-130 dc Motor
-
25mm dc Gear Motor 6v 12v 370 dc Brush Motor With 25mm Metal Gearbox
-
25mm 6v 12v 24v Mini dc Toy Gear Box Motor With Reduction Gear Motor for Vending Machines
-
L Shape 10 24mm Diameter N20 dc Geared Motor for Intelligent Robots
-
Mini DC Gear Motor 12V 24V D Shaft 37mm Gearbox Motor Reduction Small Electric Motor With Encoder
Product Details
| Brand Name | kegumotor | Place of Origin | China | |
| Model Number | KG-13A050 | Type | Gear Motor | |
| Certification | CCC, CE, ROHS | Torque | 300g.cm | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Explosion-proof | |
| Voltage(V) | 3 | Output Power | 0.01 | |
| Continuous Current(A) | 0.01 | Speed(RPM) | 100 | |
| Commutation | Brush |
Product Description
Product Description
13mm 3.7v 4v 6v 12v Micro DC Gear Motor for robot toys
FF-050 DC motor metal gear 12v electric motor for door-lock
SPECIFICATION:
13mm 3.7v 4v 6v 12v Micro DC Gear Motor for robot toys
1.Rated Voltage:DC 3V -12V 2. Speed No load: 17~3000RPM
3.Diameter 13mm,length 11+26.5mm 4.Weight: 15g Approx 5.Application:Robot, Home Appliance, Door Lock,medical equipment, automobile
systems, communication equipment, digital cameras and domestic appliances. etc 6.Customized,Adjust the performance at
free(voltage,speed,torque,ECT.)
1.Rated Voltage:DC 3V -12V 2. Speed No load: 17~3000RPM
3.Diameter 13mm,length 11+26.5mm 4.Weight: 15g Approx 5.Application:Robot, Home Appliance, Door Lock,medical equipment, automobile
systems, communication equipment, digital cameras and domestic appliances. etc 6.Customized,Adjust the performance at
free(voltage,speed,torque,ECT.)
Kegu Motor Provide intelligent lock solution
Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque
* Low Noise
* Longer life time up to 200,000 times unlock
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque
* Low Noise
* Longer life time up to 200,000 times unlock

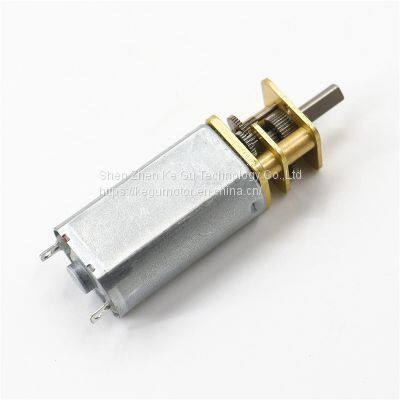

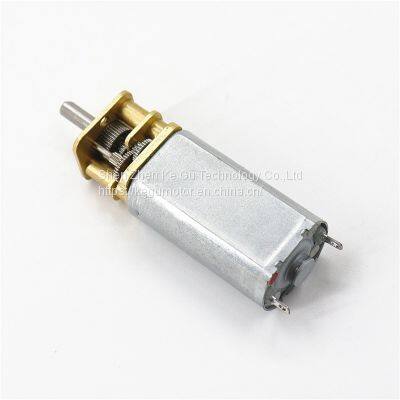

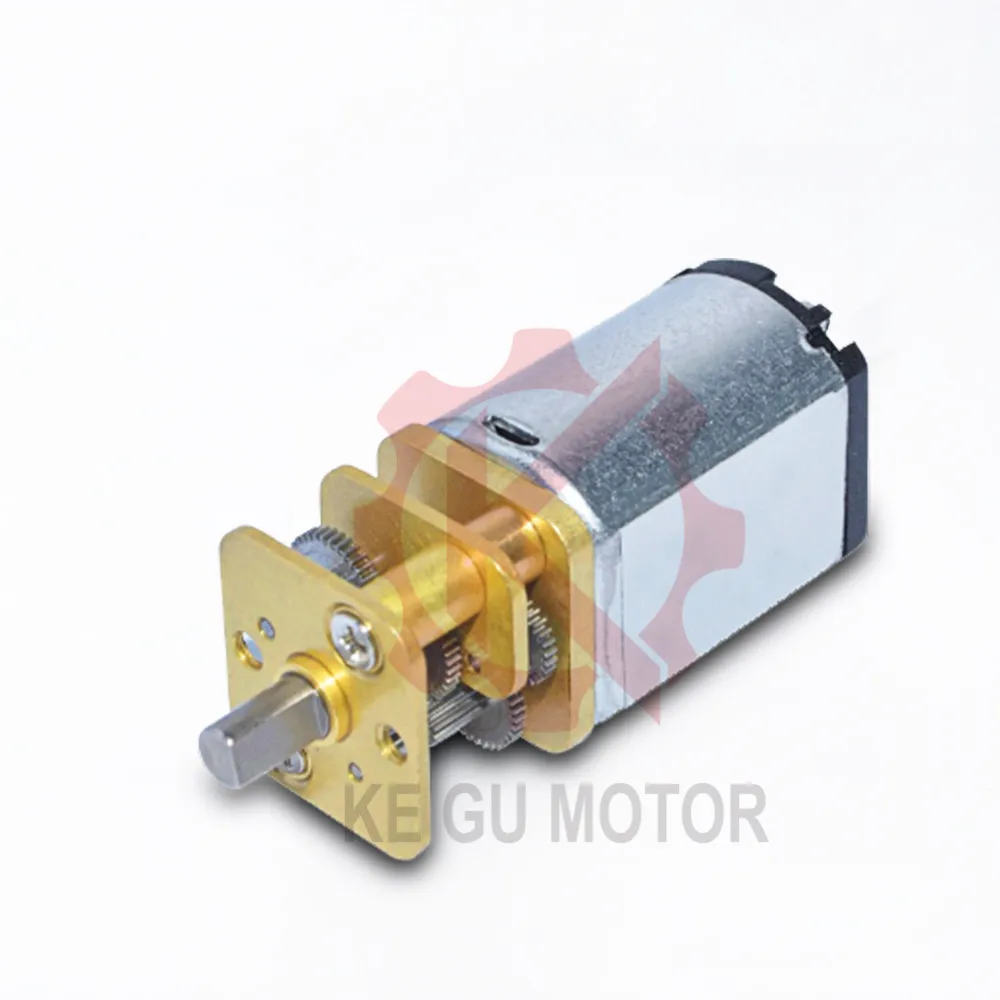

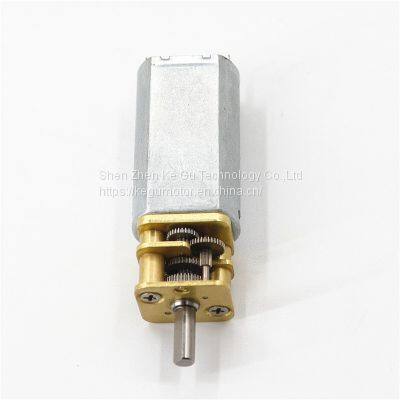

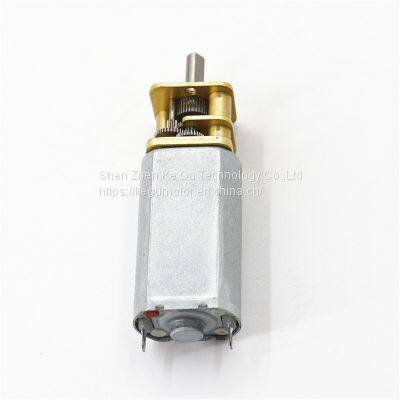

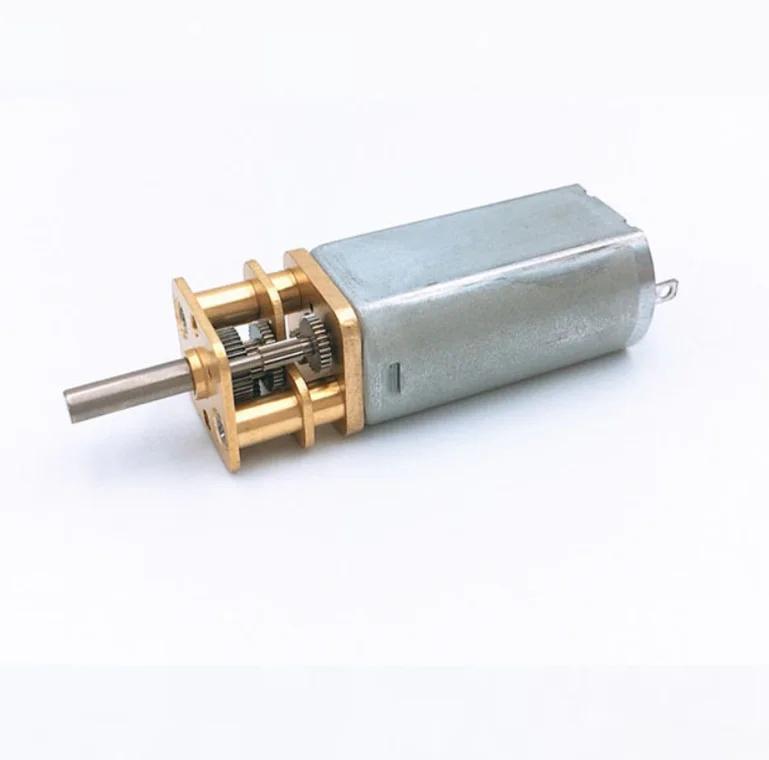

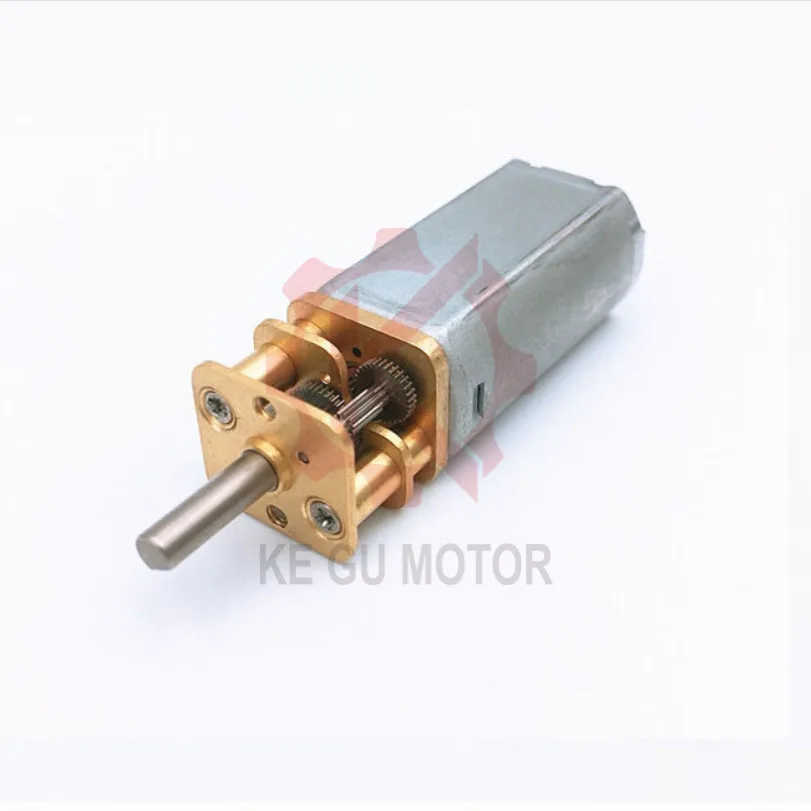

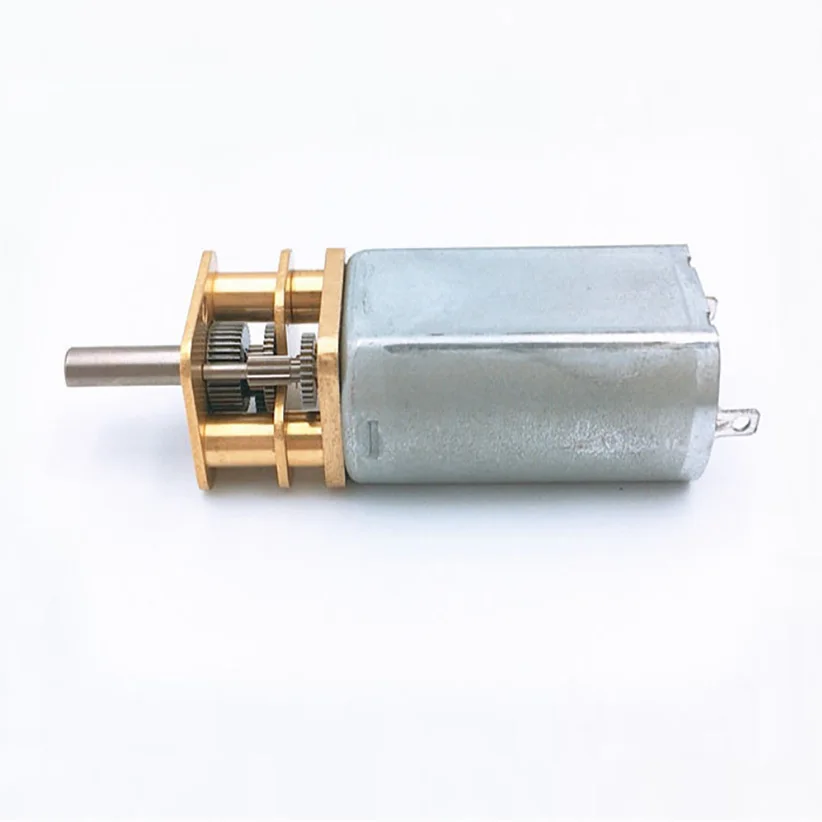

Detailed Images
This series of motors are used in intelligent switch, smart door lock, fingerprint lock driver.The control system of various locks and fingerprint lock can be controlled by mobile APP.
Size Information

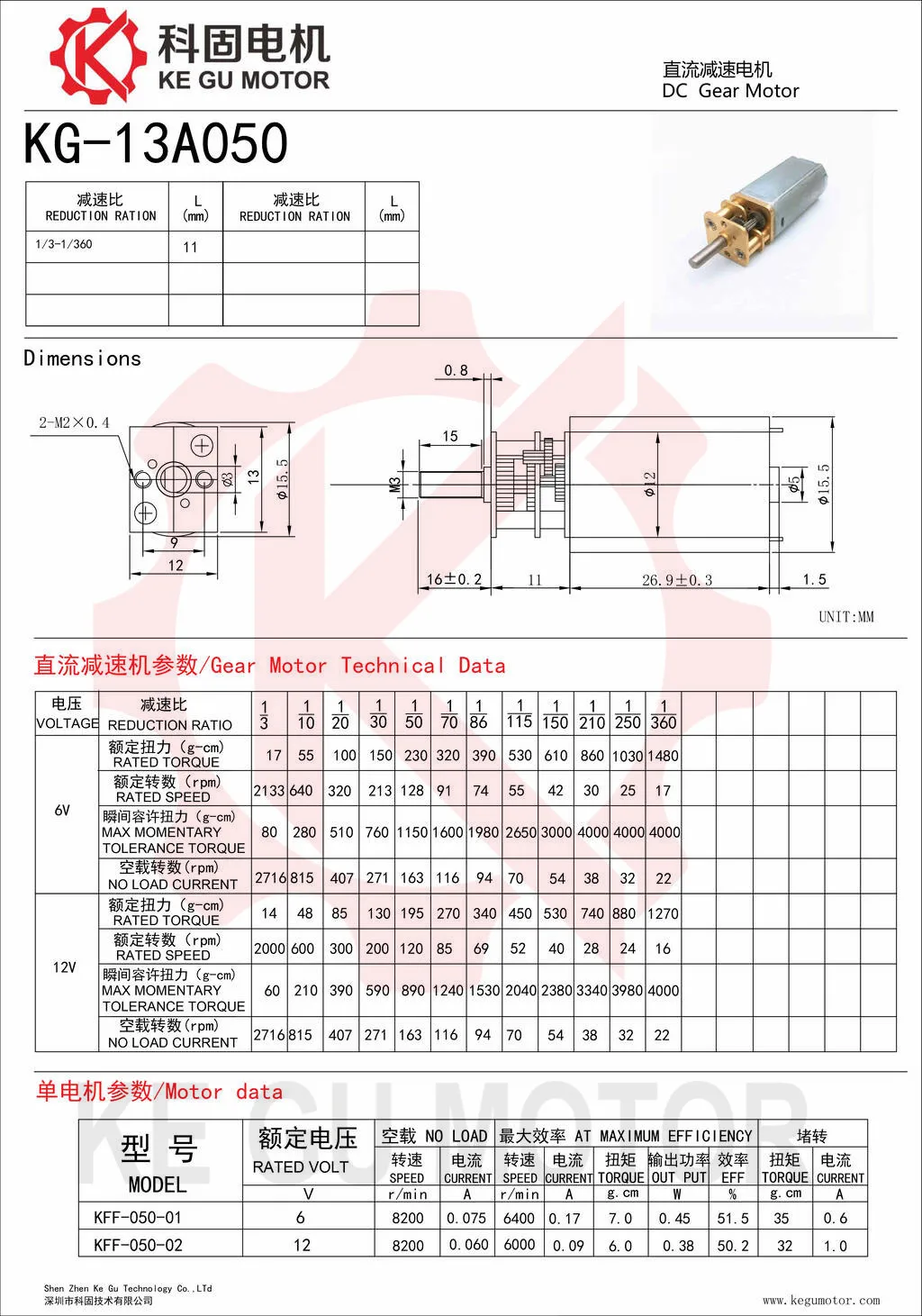

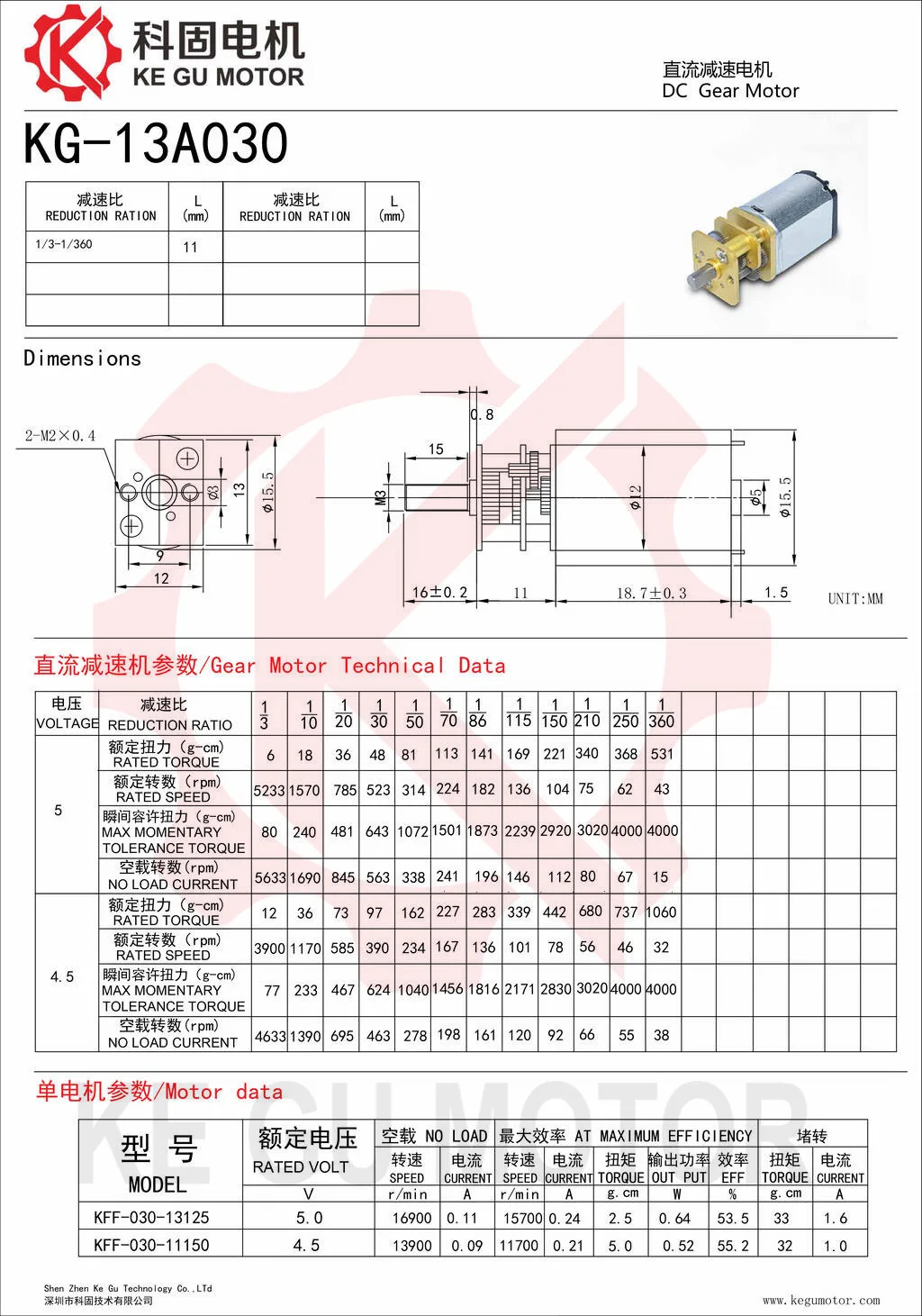

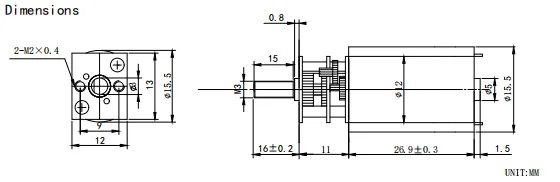

Drawing of 13mm gear motor
Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
Packing&Shipping
After Sales Service
The reliability and stability of the product is an important index to evaluate the technical level of the product.In order to accurately analyze, evaluate and verify the performance of the product.
So Kegu motor will reply customer in 2 days after receive
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.
Company Introduction
Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.The company strictly implements the IS9001:2015 management system.
Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.
Our Services & Strength
R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.
Provide customized, design, development, production and assembly services of micro gear transmission system.
Certifications
FAQ
Q:1.What kind of motors you can provide?
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
A:Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
