VLI 200744 N Slewing Bearing for Conveyor Booms Machine 848x648x56mm
- SHANGHAI
- T/T
- 30 days
You May Like
-
VLI 200844 N Slewing Ball Bearing 948x736x 56mm Stackers Machine
-
VLI 200944 N Slewing Ball Bearing 1048x840x56mm for Tunnel Boring Machines
-
VLI 201094 N Turntable Bearing With Internal Teeth 1198x984x56mm for Excavators
-
VLU 200414 Slewing Bearing With Flange 518x304x56mm for Access Platforms
-
2 Row Tandem Roller Bearing T2AR1242 12x42x41.5mm in Stock for Extruder Gearbox
-
Tandem Roller Bearing T2AR3278 32x78x57.5mm in Stock for Pig Fish Feed Extruder Gearbox
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | VLI 200644 N | Feature | Four Point Contact | |
| Seals Type | doulbe seal | Outside Diameter | 748, | |
| Bore Size | 546, | Gear Options | Nongeared |
Product Description

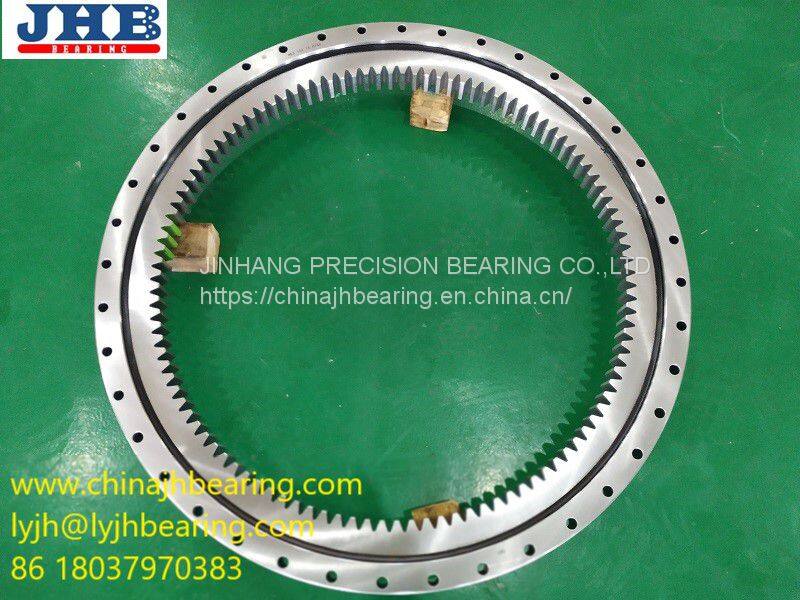

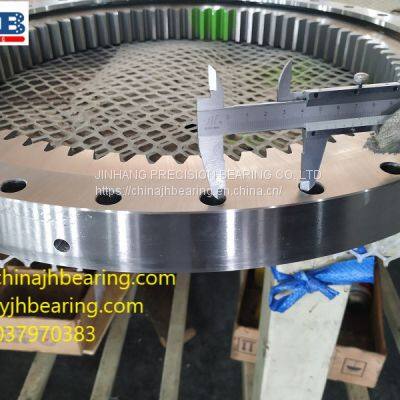

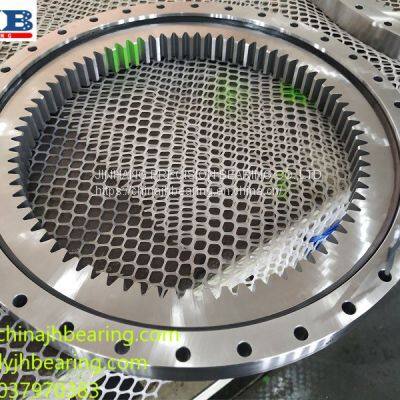

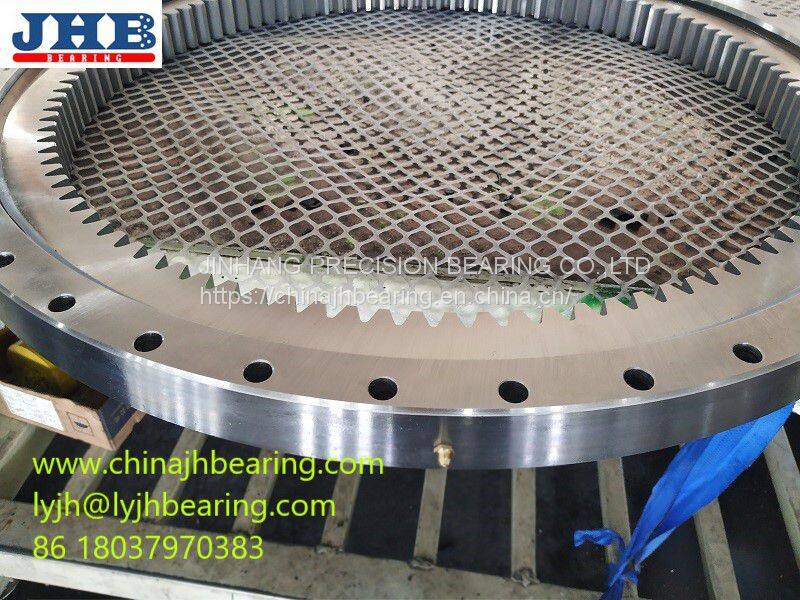

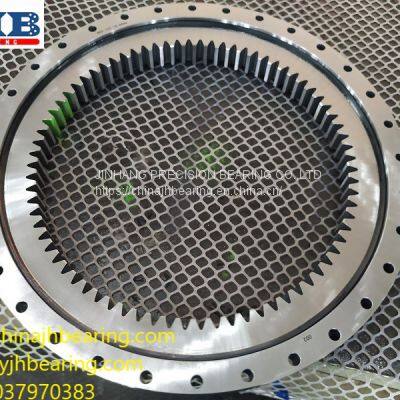

VLI 200744 N slewing bearing for conveyor booms machine 848x648x56mm
VLI 200744 N slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected. The outer diameter:848mm,Inner diameter:648mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description | VLI 200744 N slewing ball bearing |
Dimension(ODXIDXH) | 848x648x56mm |
Outer diameter(OD) | 848 mm |
Inner diameter(ID) | 648 mm |
Width/Height/(H) | 56 mm |
Gear teeth d0 | 660MM |
Gear teeth m | 6 |
Gear teeth Z | 110 |
weight | 52kgs |
Material | 42CrMo,42CrMo ,50Mn |
Rolling | LYC ball |
Package | Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time | 20-30 days |
Service | Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
