Product Description
Beifang China BFC 12PSB Testing machine for inline pumps with 11KW 15KW 18.5KW injection pump testing bench

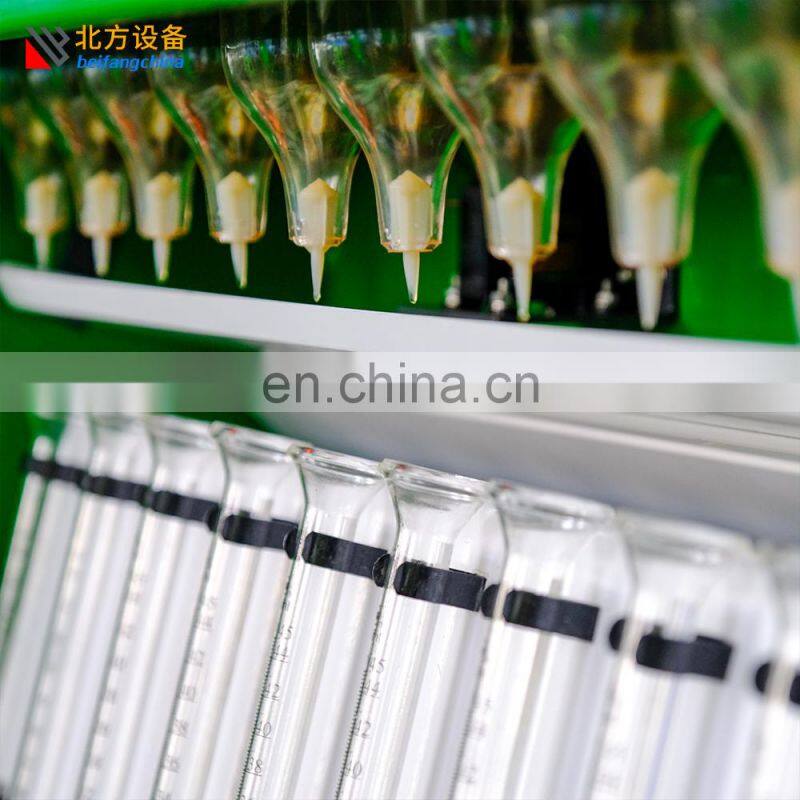

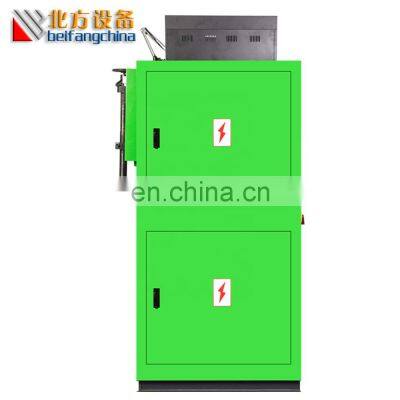

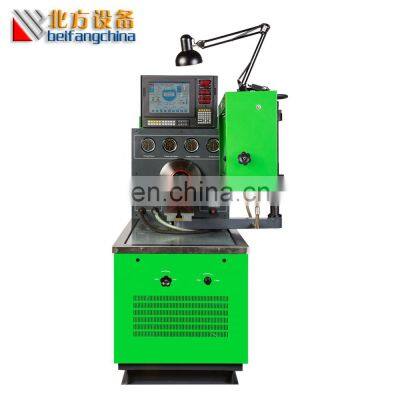

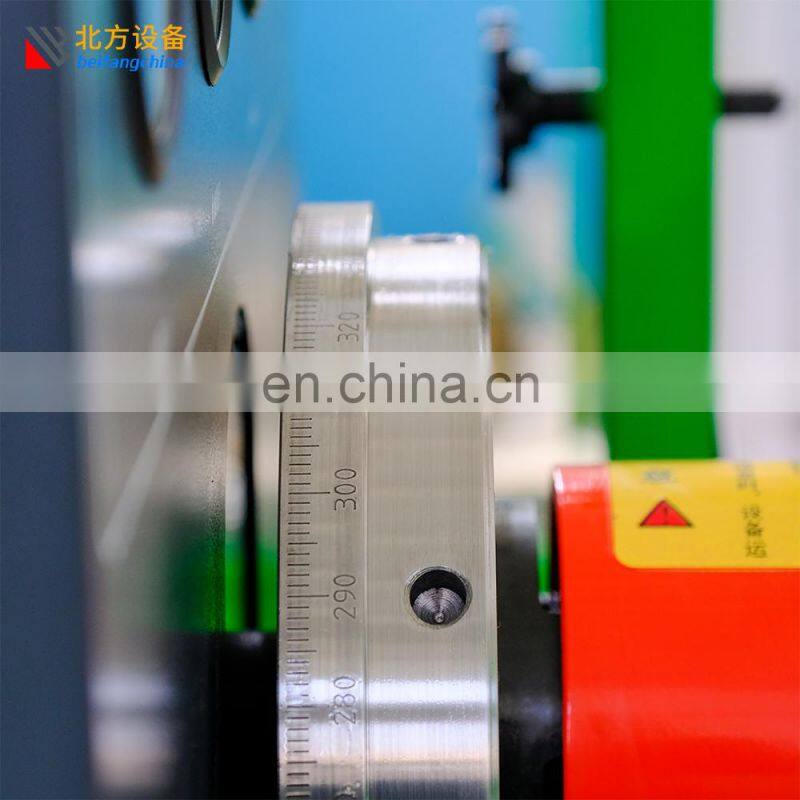

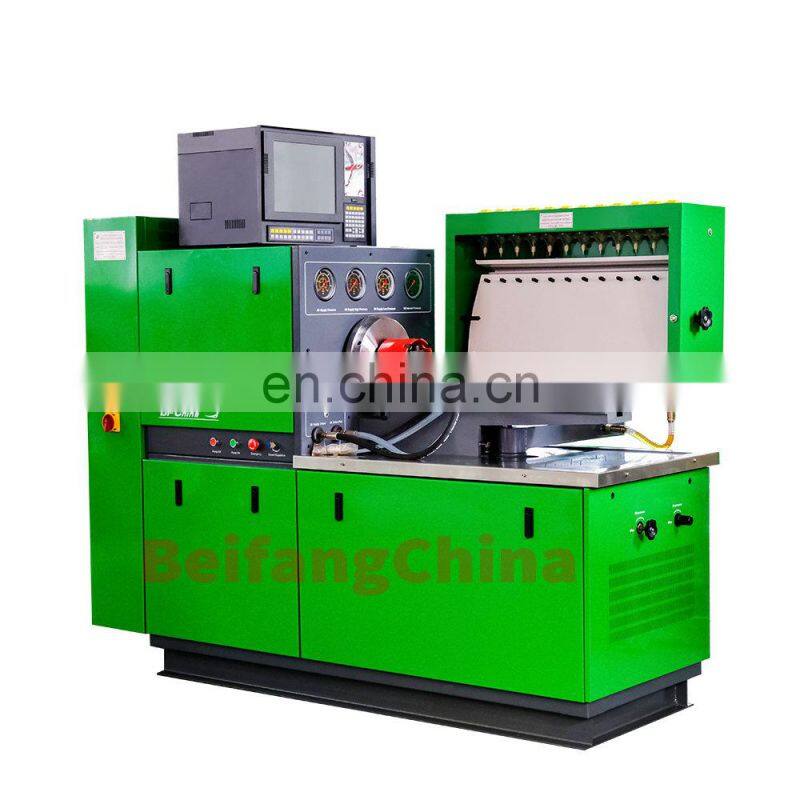

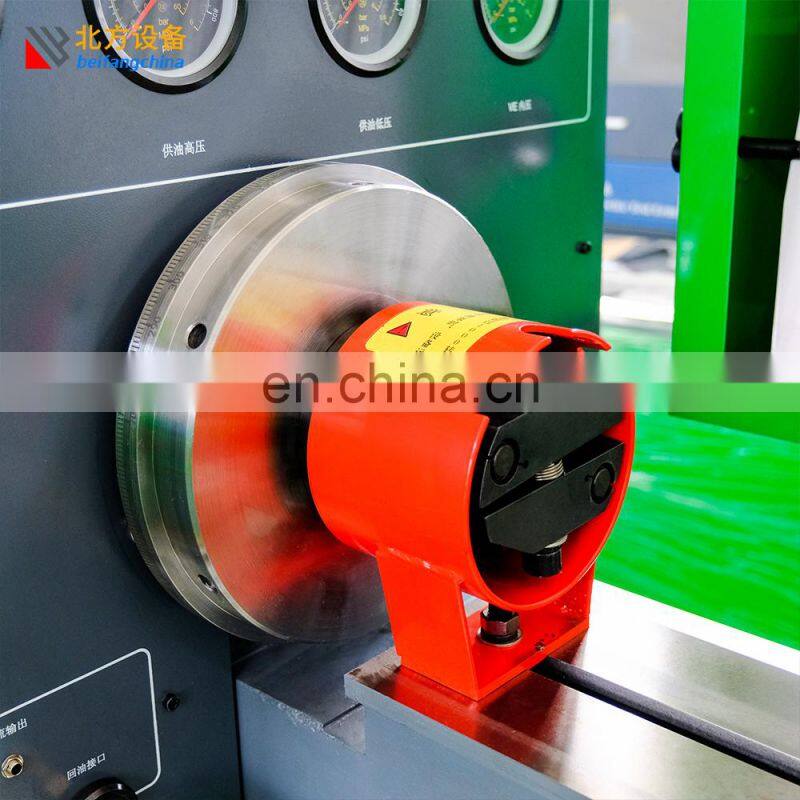

Product display
Technical Parameters
Beifang 12PSB-BFB diesel pump testing equipment | ||
Name | BFB diesel fuel injection pump test bench | |
Main motor power | 15kw | |
Host machine source | 380V/50-60HZ 3Phase(220V/50-60HZ 1Phase,220V/50-60HZ 3Phase) | |
Test bench rotated speed | 0-4000 rpm/min | |
Oil supply | 10L/min , 20L/min | |
Oil supply high pressure | 0-3.5Mpa | |
Oil supply low pressure | 0-0.35Mpa | |
Air supply pressure range | 0-0.18Mpa | |
DC power | 12V or 24V(Allow short circuit) | |
Shaft centre height | 125 MM | |
Test bench height from the ground | 830 MM | |
Oil tank capacity | 50 L | |
Fuel oil temperature | 40±2℃ | |
Overall size(mm) | 2150*750*1850 | |
Weight(kg) | 950 | |
Features
1.Three styles, two language screen interface for thee operator to choose.
2.The main motor frequency control, manual and automatic two modes of operation.
3.12V, 24V DC power supply for solenoid calve drive and detection.
4.The test oil temperature automatic control, can reduce the temperatire on the amount of oil precision.
5.Automatic mode can be multi-speed preset speed. Low noise,high pressure supply system.
2.The main motor frequency control, manual and automatic two modes of operation.
3.12V, 24V DC power supply for solenoid calve drive and detection.
4.The test oil temperature automatic control, can reduce the temperatire on the amount of oil precision.
5.Automatic mode can be multi-speed preset speed. Low noise,high pressure supply system.
Function
1.Test the speed of each cylinder under the oil supply;
2.Statically check the fuel tank time;
3.Check mechanical governor performance;
4.Distribute pump solenoid valve test;
5.The injection pump sealing test;
6.Measurement distribution pump body pressure, return pressure;
7.Check the pressure compensator performance;
8.Check the pneumatic governor performance;
9.Check the air film governor negative pressure performance.
2.Statically check the fuel tank time;
3.Check mechanical governor performance;
4.Distribute pump solenoid valve test;
5.The injection pump sealing test;
6.Measurement distribution pump body pressure, return pressure;
7.Check the pressure compensator performance;
8.Check the pneumatic governor performance;
9.Check the air film governor negative pressure performance.
Packing & Delivery
Packaging : wooden case with water-proof membrane
Delivery: within 7 days after receiving the deposit
Delivery: within 7 days after receiving the deposit
Our Services
1. Common rail injector technical support ;
2. We have training center for teaching common rail system service;
3. Factory sell directly.
Welcome to visit our Factory.
2. We have training center for teaching common rail system service;
3. Factory sell directly.
Welcome to visit our Factory.
